inet::bgp::BgpRoutingTableEntry Class Reference

#include <BgpRoutingTableEntry.h>

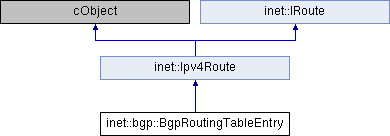

Inheritance diagram for inet::bgp::BgpRoutingTableEntry:

Public Member Functions
	BgpRoutingTableEntry (void)
	BgpRoutingTableEntry (const Ipv4Route *entry)
virtual	~BgpRoutingTableEntry (void)
void	setPathType (RoutingPathType type)
RoutingPathType	getPathType (void) const
void	addAS (AsId newAS)
unsigned int	getASCount (void) const
AsId	getAS (unsigned int index) const
int	getLocalPreference (void) const
void	setLocalPreference (int l)
bool	isIBgpLearned (void)
void	setIBgpLearned (bool i)
virtual std::string	str () const
Public Member Functions inherited from inet::Ipv4Route
	Ipv4Route ()
virtual	~Ipv4Route ()
virtual std::string	detailedInfo () const
bool	operator== (const Ipv4Route &route) const
bool	operator!= (const Ipv4Route &route) const
bool	equals (const Ipv4Route &route) const
virtual void	setRoutingTable (IIpv4RoutingTable *rt)
	To be called by the routing table when this route is added or removed from it. More...
IIpv4RoutingTable *	getRoutingTable () const
virtual bool	isValid () const
	test validity of route entry, e.g. More...
virtual void	setDestination (Ipv4Address _dest)
virtual void	setNetmask (Ipv4Address _netmask)
virtual void	setGateway (Ipv4Address _gateway)
virtual void	setInterface (NetworkInterface *_interfacePtr) override
virtual void	setSourceType (SourceType _source) override
const char *	getSourceTypeAbbreviation () const
virtual void	setAdminDist (unsigned int _adminDist) override
virtual void	setMetric (int _metric) override
const Ipv4Address &	getDestination () const
	Destination address prefix to match. More...
const Ipv4Address &	getNetmask () const
	Represents length of prefix to match. More...
const Ipv4Address &	getGateway () const
	Next hop address. More...
NetworkInterface *	getInterface () const override
	Next hop interface. More...
const char *	getInterfaceName () const
	Convenience method. More...
SourceType	getSourceType () const override
	Source of route. More...
unsigned int	getAdminDist () const
	Route source specific preference value. More...
int	getMetric () const override
	"Cost" to reach the destination More...
void	setSource (cObject *_source) override
cObject *	getSource () const override
	Source of route. More...
cObject *	getProtocolData () const override
void	setProtocolData (cObject *protocolData) override
virtual IRoutingTable *	getRoutingTableAsGeneric () const override
	The routing table in which this route is inserted, or nullptr. More...
virtual void	setDestination (const L3Address &dest) override
virtual void	setPrefixLength (int len) override
virtual void	setNextHop (const L3Address &nextHop) override
virtual L3Address	getDestinationAsGeneric () const override
	Destination address prefix to match. More...
virtual int	getPrefixLength () const override
	Represents length of prefix to match. More...
virtual L3Address	getNextHopAsGeneric () const override
	Next hop address. More...
Public Member Functions inherited from inet::IRoute
virtual	~IRoute ()
virtual void	setSourceType (SourceType type)=0

Static Public Member Functions
static const std::string	getPathTypeString (RoutingPathType type)
Static Public Member Functions inherited from inet::IRoute
static const char *	sourceTypeName (SourceType sourceType)

Private Types
typedef unsigned char	RoutingPathType

Private Attributes
RoutingPathType	_pathType = INCOMPLETE
std::vector< AsId >	_ASList
int	localPreference = 0
bool	IBGP_learned = false

Additional Inherited Members
Public Types inherited from inet::IRoute
enum	SourceType {   MANUAL, IFACENETMASK, ROUTER_ADVERTISEMENT, OWN_ADV_PREFIX,   ICMP_REDIRECT, RIP, OSPF, BGP,   ZEBRA, MANET, MANET2, DYMO,   AODV, EIGRP, LISP, BABEL,   ODR, UNKNOWN, ISIS }
	Specifies where the route comes from. More...
enum	ChangeCodes {   F_DESTINATION, F_PREFIX_LENGTH, F_NEXTHOP, F_IFACE,   F_SOURCE, F_TYPE, F_ADMINDIST, F_METRIC,   F_EXPIRYTIME, F_LAST }
	Field codes for NB_ROUTE_CHANGED notifications. More...
enum	RouteAdminDist {   dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20,   dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115,   dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170,   dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210,   dUnknown = 255 }
	Cisco like administrative distances. More...
Protected Member Functions inherited from inet::Ipv4Route
void	changed (int fieldCode)

Member Typedef Documentation

RoutingPathType

typedef unsigned char inet::bgp::BgpRoutingTableEntry::RoutingPathType

private

Constructor & Destructor Documentation

BgpRoutingTableEntry() [1/2]

inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry ( void  )

inline

{
    setNetmask(Ipv4Address::ALLONES_ADDRESS);
    setMetric(DEFAULT_COST);
    setSourceType(IRoute::BGP);
}

BgpRoutingTableEntry() [2/2]

inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry ( const Ipv4Route *  entry )

inline

{
    setDestination(entry->getDestination());
    setNetmask(entry->getNetmask());
    setGateway(entry->getGateway());
    setInterface(entry->getInterface());
    setMetric(DEFAULT_COST);
    setSourceType(IRoute::BGP);
    setAdminDist(dBGPExternal);
}

~BgpRoutingTableEntry()

virtual inet::bgp::BgpRoutingTableEntry::~BgpRoutingTableEntry ( void  )

inlinevirtual

{}

Member Function Documentation

addAS()

void inet::bgp::BgpRoutingTableEntry::addAS ( AsId  newAS )

inline

{ _ASList.push_back(newAS); }

Referenced by inet::bgp::BgpRouter::addToAdvertiseList(), inet::bgp::BgpRouter::decisionProcess(), and inet::bgp::BgpRouter::processMessage().

getAS()

AsId inet::bgp::BgpRoutingTableEntry::getAS ( unsigned int  index ) const

inline

{ return _ASList[index]; }

Referenced by inet::bgp::BgpRouter::asLoopDetection(), inet::bgp::BgpRouter::isInASList(), inet::bgp::operator<<(), and inet::bgp::BgpRouter::updateSendProcess().

getASCount()

unsigned int inet::bgp::BgpRoutingTableEntry::getASCount ( void  ) const

inline

{ return _ASList.size(); }

Referenced by inet::bgp::BgpRouter::asLoopDetection(), inet::bgp::BgpRouter::isInASList(), inet::bgp::operator<<(), inet::bgp::BgpRouter::tieBreakingProcess(), and inet::bgp::BgpRouter::updateSendProcess().

getLocalPreference()

int inet::bgp::BgpRoutingTableEntry::getLocalPreference ( void  ) const

inline

{ return localPreference; }

Referenced by inet::bgp::BgpRouter::decisionProcess(), inet::bgp::operator<<(), str(), and inet::bgp::BgpRouter::tieBreakingProcess().

getPathType()

RoutingPathType inet::bgp::BgpRoutingTableEntry::getPathType ( void  ) const

inline

{ return _pathType; }

Referenced by inet::bgp::operator<<(), inet::bgp::BgpRouter::tieBreakingProcess(), and inet::bgp::BgpRouter::updateSendProcess().

getPathTypeString()

const std::string inet::bgp::BgpRoutingTableEntry::getPathTypeString ( RoutingPathType  type )

inlinestatic

{
    if (type == IGP)
        return "IGP";
    else if (type == EGP)
        return "EGP";
    else if (type == INCOMPLETE)
        return "INCOMPLETE";

    return "Unknown";
}

Referenced by inet::bgp::operator<<(), and str().

isIBgpLearned()

bool inet::bgp::BgpRoutingTableEntry::isIBgpLearned ( void  )

inline

{ return IBGP_learned; }

Referenced by inet::bgp::operator<<(), and inet::bgp::BgpRouter::updateSendProcess().

setIBgpLearned()

void inet::bgp::BgpRoutingTableEntry::setIBgpLearned ( bool  i )

inline

{ IBGP_learned = i; }

Referenced by inet::bgp::BgpRouter::decisionProcess().

setLocalPreference()

void inet::bgp::BgpRoutingTableEntry::setLocalPreference ( int  l )

inline

{ localPreference = l; }

Referenced by inet::bgp::BgpRouter::addToAdvertiseList(), inet::bgp::BgpRouter::decisionProcess(), and inet::bgp::BgpRouter::processMessage().

setPathType()

void inet::bgp::BgpRoutingTableEntry::setPathType ( RoutingPathType  type )

inline

{ _pathType = type; }

Referenced by inet::bgp::BgpRouter::addToAdvertiseList(), and inet::bgp::BgpRouter::decisionProcess().

str()

std::string inet::bgp::BgpRoutingTableEntry::str ( ) const

inlinevirtual

Reimplemented from inet::Ipv4Route.

{
    std::stringstream out;
    out << getSourceTypeAbbreviation();
    out << " ";
    if (getDestination().isUnspecified())
        out << "0.0.0.0";
    else
        out << getDestination();
    out << "/";
    if (getNetmask().isUnspecified())
        out << "0";
    else
        out << getNetmask().getNetmaskLength();
    out << " gw:";
    if (getGateway().isUnspecified())
        out << "*  ";
    else
        out << getGateway() << "  ";
    if (getRoutingTable() && getRoutingTable()->isAdminDistEnabled())
        out << "AD:" << getAdminDist() << "  ";
    out << "metric:" << getMetric() << "  ";
    out << "if:";
    if (!getInterface())
        out << "*";
    else
        out << getInterfaceName();

    out << " origin: " << BgpRoutingTableEntry::getPathTypeString(_pathType);
    if (IBGP_learned)
        out << " localPref: " << getLocalPreference();
    out << " ASlist: ";
    for (auto& element : _ASList)
        out << element << ' ';

    return out.str();
}

Member Data Documentation

_ASList

std::vector<AsId> inet::bgp::BgpRoutingTableEntry::_ASList

private

Referenced by str().

_pathType

RoutingPathType inet::bgp::BgpRoutingTableEntry::_pathType = INCOMPLETE

private

Referenced by str().

IBGP_learned

bool inet::bgp::BgpRoutingTableEntry::IBGP_learned = false

private

Referenced by str().

localPreference

int inet::bgp::BgpRoutingTableEntry::localPreference = 0

private

---

The documentation for this class was generated from the following file:

• BgpRoutingTableEntry.h
