inet::InterfaceTagBase Class Reference

Class generated from inet/linklayer/common/InterfaceTag.msg:13 by opp_msgtool. More...

#include <InterfaceTag_m.h>

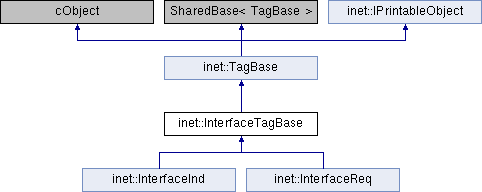

Inheritance diagram for inet::InterfaceTagBase:

Public Member Functions
	InterfaceTagBase ()
	InterfaceTagBase (const InterfaceTagBase &other)
virtual	~InterfaceTagBase ()
InterfaceTagBase &	operator= (const InterfaceTagBase &other)
virtual InterfaceTagBase *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getInterfaceId () const
virtual void	setInterfaceId (int interfaceId)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const InterfaceTagBase &)=delete

Protected Attributes
int	interfaceId = -1

Private Member Functions
void	copy (const InterfaceTagBase &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/linklayer/common/InterfaceTag.msg:13 by opp_msgtool.

class InterfaceTagBase extends TagBase
{
    int interfaceId = -1; // a locally unique (network node) identifier that determines the interface registered in the ~InterfaceTable
}

Constructor & Destructor Documentation

InterfaceTagBase() [1/2]

inet::InterfaceTagBase::InterfaceTagBase

(

)

InterfaceTagBase() [2/2]

inet::InterfaceTagBase::InterfaceTagBase

(

const InterfaceTagBase &

other

)

~InterfaceTagBase()

virtual inet::InterfaceTagBase::~InterfaceTagBase ( )

virtual

Member Function Documentation

copy()

void inet::InterfaceTagBase::copy ( const InterfaceTagBase &  other )

private

dup()

virtual InterfaceTagBase* inet::InterfaceTagBase::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::InterfaceInd, and inet::InterfaceReq.

{return new InterfaceTagBase(*this);}

getInterfaceId()

virtual int inet::InterfaceTagBase::getInterfaceId ( ) const

virtual

Referenced by inet::CloudDelayerBase::datagramForwardHook(), inet::NetfilterInfoHook::datagramForwardHook(), inet::NetfilterInfoHook::datagramPostRoutingHook(), inet::NetfilterInfoHook::datagramPreRoutingHook(), inet::Ipv6Tunneling::decapsulateDatagram(), inet::Ipv4::forwardMulticastPacket(), inet::Ipv4::fragmentAndSend(), inet::Ipv6::fragmentPostRouting(), inet::Ipv4::fragmentPostRouting(), inet::MacRelayUnit::handleLowerPacket(), inet::Ieee8021dRelay::handleLowerPacket(), inet::ospfv3::Ospfv3Splitter::handleMessage(), inet::MessageDispatcher::handleMessage(), inet::MessageDispatcher::handlePacket(), inet::NextHopForwarding::handlePacketFromNetwork(), inet::Ipv4::preroutingFinish(), inet::Arp::processArpPacket(), inet::xMIPv6::processCoTMessage(), inet::Icmpv6::processEchoRequest(), inet::PimDm::processGraftPacket(), inet::Igmpv2::processIgmpMessage(), inet::PimSm::processJoinPrunePacket(), inet::Ipv6NeighbourDiscovery::processNaPacket(), inet::Ipv6NeighbourDiscovery::processNsPacket(), inet::RelayInterfaceLearner::processPacket(), inet::Gptp::processPdelayReq(), inet::PimSplitter::processPIMPacket(), inet::Igmpv3::processQuery(), inet::Ipv6NeighbourDiscovery::processRaForRouterUpdates(), inet::Ipv6NeighbourDiscovery::processRaPacket(), inet::Igmpv3::processReport(), inet::Ipv6NeighbourDiscovery::processRsPacket(), inet::Ipv4::sendDatagramToOutput(), inet::PimDm::sendGraftAckPacket(), inet::Ipv4::sendPacketToNIC(), and inet::xMIPv6::validateCoTMessage().

operator=()

InterfaceTagBase& inet::InterfaceTagBase::operator=

(

const InterfaceTagBase &

other

)

operator==()

bool inet::InterfaceTagBase::operator== ( const InterfaceTagBase &  )

protecteddelete

parsimPack()

virtual void inet::InterfaceTagBase::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::InterfaceInd, and inet::InterfaceReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::InterfaceTagBase::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::InterfaceInd, and inet::InterfaceReq.

Referenced by inet::doParsimUnpacking().

setInterfaceId()

virtual void inet::InterfaceTagBase::setInterfaceId ( int  interfaceId )

virtual

Referenced by inet::NextHopForwarding::decapsulate(), and inet::Ieee8022LlcSocket::sendOut().

Member Data Documentation

interfaceId

int inet::InterfaceTagBase::interfaceId = -1

protected

---

The documentation for this class was generated from the following file:

• InterfaceTag_m.h
