inet::Gptp Class Reference

#include <Gptp.h>

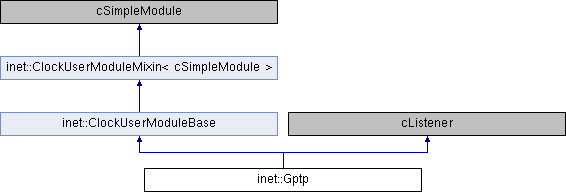

Inheritance diagram for inet::Gptp:

Public Member Functions
virtual	~Gptp ()
void	sendPacketToNIC (Packet *packet, int portId)
void	sendSync ()
void	sendFollowUp (int portId, const GptpSync *sync, clocktime_t preciseOriginTimestamp)
void	sendPdelayReq ()
void	sendPdelayResp (GptpReqAnswerEvent *req)
void	sendPdelayRespFollowUp (int portId, const GptpPdelayResp *resp)
void	processSync (Packet *packet, const GptpSync *gptp)
void	processFollowUp (Packet *packet, const GptpFollowUp *gptp)
void	processPdelayReq (Packet *packet, const GptpPdelayReq *gptp)
void	processPdelayResp (Packet *packet, const GptpPdelayResp *gptp)
void	processPdelayRespFollowUp (Packet *packet, const GptpPdelayRespFollowUp *gptp)
clocktime_t	getCalculatedDrift (IClock *clock, clocktime_t value)
void	synchronize ()
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *obj, cObject *details) override
Public Member Functions inherited from inet::ClockUserModuleMixin< cSimpleModule >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)
virtual cMessage *	cancelClockEvent (ClockEvent *msg)
virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)
virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const
virtual clocktime_t	getClockTime () const
virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const

Static Public Attributes
static const MacAddress	GPTP_MULTICAST_ADDRESS

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleSelfMessage (cMessage *msg)

Private Attributes
ModuleRefByPar< IInterfaceTable >	interfaceTable
GptpNodeType	gptpNodeType
int	domainNumber = -1
int	slavePortId = -1
std::set< int >	masterPortIds
clocktime_t	correctionField
int64_t	clockIdentity = 0
double	gmRateRatio = 1.0
double	receivedRateRatio = 1.0
clocktime_t	originTimestamp
clocktime_t	receivedTimeSync
clocktime_t	syncInterval
clocktime_t	pdelayInterval
uint16_t	sequenceId = 0
uint16_t	lastSentPdelayReqSequenceId = 0
clocktime_t	peerDelay
clocktime_t	peerRequestReceiptTimestamp
clocktime_t	peerResponseOriginTimestamp
clocktime_t	pdelayRespEventIngressTimestamp
clocktime_t	pdelayReqEventEgressTimestamp
clocktime_t	pDelayReqProcessingTime
bool	rcvdPdelayResp = false
clocktime_t	sentTimeSyncSync
clocktime_t	newLocalTimeAtTimeSync
clocktime_t	oldLocalTimeAtTimeSync
clocktime_t	peerSentTimeSync
clocktime_t	syncIngressTimestamp
bool	rcvdGptpSync = false
uint16_t	lastReceivedGptpSyncSequenceId = 0xffff
ClockEvent *	selfMsgSync = nullptr
ClockEvent *	selfMsgDelayReq = nullptr
ClockEvent *	requestMsg = nullptr

Static Private Attributes
static simsignal_t	localTimeSignal = cComponent::registerSignal("localTime")
static simsignal_t	timeDifferenceSignal = cComponent::registerSignal("timeDifference")
static simsignal_t	rateRatioSignal = cComponent::registerSignal("rateRatio")
static simsignal_t	peerDelaySignal = cComponent::registerSignal("peerDelay")

Constructor & Destructor Documentation

~Gptp()

inet::Gptp::~Gptp ( )

virtual

{
    cancelAndDeleteClockEvent(selfMsgDelayReq);
    cancelAndDeleteClockEvent(selfMsgSync);
    cancelAndDeleteClockEvent(requestMsg);
}

Member Function Documentation

getCalculatedDrift()

clocktime_t inet::Gptp::getCalculatedDrift ( IClock *  clock, clocktime_t  value  )

inline

{ return CLOCKTIME_ZERO; }

handleMessage()

void inet::Gptp::handleMessage ( cMessage *  msg )

overrideprotectedvirtual

{
    if (msg->isSelfMessage()) {
        handleSelfMessage(msg);
    }
    else {
        Packet *packet = check_and_cast<Packet *>(msg);
        auto gptp = packet->peekAtFront<GptpBase>();
        auto gptpMessageType = gptp->getMessageType();
        auto incomingNicId = packet->getTag<InterfaceInd>()->getInterfaceId();

        if (incomingNicId == slavePortId) {
            // slave port
            switch (gptpMessageType) {
                case GPTPTYPE_SYNC:
                    processSync(packet, check_and_cast<const GptpSync *>(gptp.get()));
                    break;
                case GPTPTYPE_FOLLOW_UP:
                    processFollowUp(packet, check_and_cast<const GptpFollowUp *>(gptp.get()));
                    // Send a request to send Sync message
                    // through other gptp Ethernet interfaces
                    if(gptpNodeType == BRIDGE_NODE)
                        sendSync();
                    break;
                case GPTPTYPE_PDELAY_RESP:
                    processPdelayResp(packet, check_and_cast<const GptpPdelayResp *>(gptp.get()));
                    break;
                case GPTPTYPE_PDELAY_RESP_FOLLOW_UP:
                    processPdelayRespFollowUp(packet, check_and_cast<const GptpPdelayRespFollowUp *>(gptp.get()));
                    break;
                default:
                    throw cRuntimeError("Unknown gPTP packet type: %d", (int)(gptpMessageType));
            }
        }
        else if (masterPortIds.find(incomingNicId) != masterPortIds.end()) {
            // master port
            if(gptpMessageType == GPTPTYPE_PDELAY_REQ) {
                processPdelayReq(packet, check_and_cast<const GptpPdelayReq *>(gptp.get()));
            }
            else {
                throw cRuntimeError("Unaccepted gPTP type: %d", (int)(gptpMessageType));
            }
        }
        else {
            // passive port
            EV_ERROR << "Message " << msg->getClassAndFullName() << " arrived on passive port " << incomingNicId << ", dropped\n";
        }
        delete msg;
    }
}

handleSelfMessage()

void inet::Gptp::handleSelfMessage ( cMessage *  msg )

protectedvirtual

{
    switch(msg->getKind()) {
        case GPTP_SELF_MSG_SYNC:
            // masterport:
            ASSERT(selfMsgSync == msg);
            sendSync();

            /* Schedule next Sync message at next sync interval
             * Grand master always works at simulation time */
            scheduleClockEventAfter(syncInterval, selfMsgSync);
            break;

        case GPTP_SELF_REQ_ANSWER_KIND:
            // masterport:
            sendPdelayResp(check_and_cast<GptpReqAnswerEvent*>(msg));
            delete msg;
            break;

        case GPTP_SELF_MSG_PDELAY_REQ:
        // slaveport:
            sendPdelayReq(); //TODO on slaveports only
            scheduleClockEventAfter(pdelayInterval, selfMsgDelayReq);
            break;

        default:
            throw cRuntimeError("Unknown self message (%s)%s, kind=%d", msg->getClassName(), msg->getName(), msg->getKind());
    }
}

Referenced by handleMessage().

initialize()

void inet::Gptp::initialize ( int  stage )

overrideprotectedvirtual

{
    ClockUserModuleBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        gptpNodeType = static_cast<GptpNodeType>(cEnum::get("GptpNodeType", "inet")->resolve(par("gptpNodeType")));
        domainNumber = par("domainNumber");
        syncInterval = par("syncInterval");
        pDelayReqProcessingTime = par("pDelayReqProcessingTime");
        std::hash<std::string> strHash;
        clockIdentity = strHash(getFullPath());
    }
    if (stage == INITSTAGE_LINK_LAYER) {
        peerDelay = 0;
        receivedTimeSync = CLOCKTIME_ZERO;

        interfaceTable.reference(this, "interfaceTableModule", true);

        const char *str = par("slavePort");
        if (*str) {
            if (gptpNodeType == MASTER_NODE)
                throw cRuntimeError("Parameter inconsistency: MASTER_NODE with slave port");
            auto nic = CHK(interfaceTable->findInterfaceByName(str));
            slavePortId = nic->getInterfaceId();
            nic->subscribe(transmissionEndedSignal, this);
            nic->subscribe(receptionEndedSignal, this);
        }
        else
            if (gptpNodeType != MASTER_NODE)
                throw cRuntimeError("Parameter error: Missing slave port for %s", par("gptpNodeType").stringValue());

        auto v = check_and_cast<cValueArray *>(par("masterPorts").objectValue())->asStringVector();
        if (v.empty() and gptpNodeType != SLAVE_NODE)
            throw cRuntimeError("Parameter error: Missing any master port for %s", par("gptpNodeType").stringValue());
        for (const auto& p : v) {
            auto nic = CHK(interfaceTable->findInterfaceByName(p.c_str()));
            int portId = nic->getInterfaceId();
            if (portId == slavePortId)
                throw cRuntimeError("Parameter error: the port '%s' specified both master and slave port", p.c_str());
            masterPortIds.insert(portId);
            nic->subscribe(transmissionEndedSignal, this);
            nic->subscribe(receptionEndedSignal, this);
        }

        if (slavePortId != -1) {
            auto networkInterface = interfaceTable->getInterfaceById(slavePortId);
            if (!networkInterface->matchesMulticastMacAddress(GPTP_MULTICAST_ADDRESS))
                networkInterface->addMulticastMacAddress(GPTP_MULTICAST_ADDRESS);
        }
        for (auto id: masterPortIds) {
            auto networkInterface = interfaceTable->getInterfaceById(id);
            if (!networkInterface->matchesMulticastMacAddress(GPTP_MULTICAST_ADDRESS))
                networkInterface->addMulticastMacAddress(GPTP_MULTICAST_ADDRESS);
        }

        correctionField = par("correctionField");

        gmRateRatio = 1.0;

        registerProtocol(Protocol::gptp, gate("socketOut"), gate("socketIn"));

        /* Only grandmaster in the domain can initialize the synchronization message periodically
         * so below condition checks whether it is grandmaster and then schedule first sync message */
        if(gptpNodeType == MASTER_NODE)
        {
            // Schedule Sync message to be sent
            selfMsgSync = new ClockEvent("selfMsgSync", GPTP_SELF_MSG_SYNC);

            clocktime_t scheduleSync = par("syncInitialOffset");
            originTimestamp = clock->getClockTime() + scheduleSync;
            scheduleClockEventAfter(scheduleSync, selfMsgSync);
        }
        if(slavePortId != -1)
        {
            requestMsg = new ClockEvent("requestToSendSync", GPTP_REQUEST_TO_SEND_SYNC);

            // Schedule Pdelay_Req message is sent by slave port
            // without depending on node type which is grandmaster or bridge
            selfMsgDelayReq = new ClockEvent("selfMsgPdelay", GPTP_SELF_MSG_PDELAY_REQ);
            pdelayInterval = par("pdelayInterval");
            scheduleClockEventAfter(par("pdelayInitialOffset"), selfMsgDelayReq);
        }
        WATCH(peerDelay);
    }
}

numInitStages()

virtual int inet::Gptp::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

processFollowUp()

void inet::Gptp::processFollowUp	(	Packet *	packet,
		const GptpFollowUp *	gptp
	)

{
    // check: is received the GptpSync for this GptpFollowUp?
    if (!rcvdGptpSync) {
        EV_WARN << "GptpFollowUp arrived without GptpSync, dropped";
        return;
    }
    // verify IDs
    if (gptp->getSequenceId() != lastReceivedGptpSyncSequenceId) {
        EV_WARN << "GptpFollowUp arrived with invalid sequence ID, dropped";
        return;
    }


    peerSentTimeSync = gptp->getPreciseOriginTimestamp();
    correctionField = gptp->getCorrectionField();
    receivedRateRatio = gptp->getFollowUpInformationTLV().getRateRatio();

    synchronize();

    EV_INFO << "############## FOLLOW_UP ################################"<< endl;
    EV_INFO << "RECEIVED TIME AFTER SYNC - " << newLocalTimeAtTimeSync << endl;
    EV_INFO << "ORIGIN TIME SYNC         - " << originTimestamp << endl;
    EV_INFO << "CORRECTION FIELD         - " << correctionField << endl;
    EV_INFO << "PROPAGATION DELAY        - " << peerDelay << endl;

    rcvdGptpSync = false;
}

Referenced by handleMessage().

processPdelayReq()

void inet::Gptp::processPdelayReq	(	Packet *	packet,
		const GptpPdelayReq *	gptp
	)

{
    auto resp = new GptpReqAnswerEvent("selfMsgPdelayResp", GPTP_SELF_REQ_ANSWER_KIND);
    resp->setPortId(packet->getTag<InterfaceInd>()->getInterfaceId());
    resp->setIngressTimestamp(packet->getTag<GptpIngressTimeInd>()->getArrivalClockTime());
    resp->setSourcePortIdentity(gptp->getSourcePortIdentity());
    resp->setSequenceId(gptp->getSequenceId());

    scheduleClockEventAfter(pDelayReqProcessingTime, resp);
}

Referenced by handleMessage().

processPdelayResp()

void inet::Gptp::processPdelayResp	(	Packet *	packet,
		const GptpPdelayResp *	gptp
	)

{
    // verify IDs
    if (gptp->getRequestingPortIdentity().clockIdentity != clockIdentity || gptp->getRequestingPortIdentity().portNumber != slavePortId) {
        EV_WARN << "GptpPdelayResp arrived with invalid PortIdentity, dropped";
        return;
    }
    if (gptp->getSequenceId() != lastSentPdelayReqSequenceId) {
        EV_WARN << "GptpPdelayResp arrived with invalid sequence ID, dropped";
        return;
    }

    rcvdPdelayResp = true;
    pdelayRespEventIngressTimestamp = packet->getTag<GptpIngressTimeInd>()->getArrivalClockTime();
    peerRequestReceiptTimestamp = gptp->getRequestReceiptTimestamp();
    peerResponseOriginTimestamp = CLOCKTIME_ZERO;
}

Referenced by handleMessage().

processPdelayRespFollowUp()

void inet::Gptp::processPdelayRespFollowUp	(	Packet *	packet,
		const GptpPdelayRespFollowUp *	gptp
	)

{
    if (!rcvdPdelayResp) {
        EV_WARN << "GptpPdelayRespFollowUp arrived without GptpPdelayResp, dropped";
        return;
    }
    // verify IDs
    if (gptp->getRequestingPortIdentity().clockIdentity != clockIdentity || gptp->getRequestingPortIdentity().portNumber != slavePortId) {
        EV_WARN << "GptpPdelayRespFollowUp arrived with invalid PortIdentity, dropped";
        return;
    }
    if (gptp->getSequenceId() != lastSentPdelayReqSequenceId) {
        EV_WARN << "GptpPdelayRespFollowUp arrived with invalid sequence ID, dropped";
        return;
    }

    peerResponseOriginTimestamp = gptp->getResponseOriginTimestamp();

    // computePropTime():
    peerDelay = (gmRateRatio * (pdelayRespEventIngressTimestamp - pdelayReqEventEgressTimestamp) - (peerResponseOriginTimestamp - peerRequestReceiptTimestamp)) / 2.0;

    EV_INFO << "RATE RATIO                       - " << gmRateRatio << endl;
    EV_INFO << "pdelayReqEventEgressTimestamp    - " << pdelayReqEventEgressTimestamp << endl;
    EV_INFO << "peerResponseOriginTimestamp      - " << peerResponseOriginTimestamp << endl;
    EV_INFO << "pdelayRespEventIngressTimestamp  - " << pdelayRespEventIngressTimestamp << endl;
    EV_INFO << "peerRequestReceiptTimestamp      - " << peerRequestReceiptTimestamp << endl;
    EV_INFO << "PEER DELAY                       - " << peerDelay << endl;

    emit(peerDelaySignal, CLOCKTIME_AS_SIMTIME(peerDelay));
}

Referenced by handleMessage().

processSync()

void inet::Gptp::processSync	(	Packet *	packet,
		const GptpSync *	gptp
	)

{
    rcvdGptpSync = true;
    lastReceivedGptpSyncSequenceId = gptp->getSequenceId();

    // peerSentTimeSync = gptp->getOriginTimestamp();  // TODO this is unfilled in two-step mode
    syncIngressTimestamp = packet->getTag<GptpIngressTimeInd>()->getArrivalClockTime();
}

Referenced by handleMessage().

receiveSignal()

void inet::Gptp::receiveSignal ( cComponent *  source, simsignal_t  signal, cObject *  obj, cObject *  details  )

overridevirtual

{
    Enter_Method("%s", cComponent::getSignalName(signal));

    if (signal == receptionEndedSignal) {
        auto signal = check_and_cast<cPacket *>(obj);
        auto packet = check_and_cast_nullable<Packet *>(signal->getEncapsulatedPacket());
        if (packet) {
            auto protocol = packet->getTag<PacketProtocolTag>()->getProtocol();
            if (*protocol == Protocol::ethernetPhy) {
                const auto& ethPhyHeader = packet->peekAtFront<physicallayer::EthernetPhyHeader>();
                const auto& ethMacHeader = packet->peekAt<EthernetMacHeader>(ethPhyHeader->getChunkLength());
                if (ethMacHeader->getTypeOrLength() == ETHERTYPE_GPTP) {
                    const auto& gptp = packet->peekAt<GptpBase>(ethPhyHeader->getChunkLength() + ethMacHeader->getChunkLength());
                    if (gptp->getDomainNumber() == domainNumber)
                        packet->addTagIfAbsent<GptpIngressTimeInd>()->setArrivalClockTime(clock->getClockTime());
                }
            }
        }
    }
    else if (signal == transmissionEndedSignal) {
        auto signal = check_and_cast<cPacket *>(obj);
        auto packet = check_and_cast_nullable<Packet *>(signal->getEncapsulatedPacket());
        if (packet) {
            auto protocol = packet->getTag<PacketProtocolTag>()->getProtocol();
            if (*protocol == Protocol::ethernetPhy) {
                const auto& ethPhyHeader = packet->peekAtFront<physicallayer::EthernetPhyHeader>();
                const auto& ethMacHeader = packet->peekAt<EthernetMacHeader>(ethPhyHeader->getChunkLength());
                if (ethMacHeader->getTypeOrLength() == ETHERTYPE_GPTP) {
                    const auto& gptp = packet->peekAt<GptpBase>(ethPhyHeader->getChunkLength() + ethMacHeader->getChunkLength());
                    if (gptp->getDomainNumber() == domainNumber) {
                        int portId = getContainingNicModule(check_and_cast<cModule*>(source))->getInterfaceId();
                        switch (gptp->getMessageType()) {
                            case GPTPTYPE_PDELAY_RESP: {
                                auto gptpResp = dynamicPtrCast<const GptpPdelayResp>(gptp);
                                sendPdelayRespFollowUp(portId, gptpResp.get());
                                break;
                            }
                            case GPTPTYPE_SYNC: {
                                auto gptpSync = dynamicPtrCast<const GptpSync>(gptp);
                                sendFollowUp(portId, gptpSync.get(), clock->getClockTime());
                                break;
                            }
                            case GPTPTYPE_PDELAY_REQ:
                                if (portId == slavePortId)
                                    pdelayReqEventEgressTimestamp = clock->getClockTime();
                                break;
                            default:
                                break;
                        }
                    }
                }
            }
        }
    }
}

sendFollowUp()

void inet::Gptp::sendFollowUp	(	int	portId,
		const GptpSync *	sync,
		clocktime_t	preciseOriginTimestamp
	)

{
    auto packet = new Packet("GptpFollowUp");
    packet->addTag<MacAddressReq>()->setDestAddress(GPTP_MULTICAST_ADDRESS);
    auto gptp = makeShared<GptpFollowUp>();
    gptp->setDomainNumber(domainNumber);
    gptp->setPreciseOriginTimestamp(preciseOriginTimestamp);
    gptp->setSequenceId(sync->getSequenceId());

    if (gptpNodeType == MASTER_NODE)
        gptp->setCorrectionField(CLOCKTIME_ZERO);
    else if (gptpNodeType == BRIDGE_NODE)
    {
        /**************** Correction field calculation *********************************************
         * It is calculated by adding peer delay, residence time and packet transmission time      *
         * correctionField(i)=correctionField(i-1)+peerDelay+(timeReceivedSync-timeSentSync)*(1-f) *
         *******************************************************************************************/
        // gptp->setCorrectionField(correctionField + peerDelay + sentTimeSyncSync - receivedTimeSync);  // TODO revise it!!! see prev. comment, where is the (1-f),  ???
        gptp->setCorrectionField(CLOCKTIME_ZERO);  // TODO revise it!!! see prev. comment, where is the (1-f),  ???
    }
    gptp->getFollowUpInformationTLVForUpdate().setRateRatio(gmRateRatio);
    packet->insertAtFront(gptp);
    sendPacketToNIC(packet, portId);
}

Referenced by receiveSignal().

sendPacketToNIC()

void inet::Gptp::sendPacketToNIC	(	Packet *	packet,
		int	portId
	)

{
    auto networkInterface = interfaceTable->getInterfaceById(portId);
    EV_INFO << "Sending " << packet << " to output interface = " << networkInterface->getInterfaceName() << ".\n";
    packet->addTag<InterfaceReq>()->setInterfaceId(portId);
    packet->addTag<PacketProtocolTag>()->setProtocol(&Protocol::gptp);
    packet->addTag<DispatchProtocolInd>()->setProtocol(&Protocol::gptp);
    auto protocol = networkInterface->getProtocol();
    if (protocol != nullptr)
        packet->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(protocol);
    else
        packet->removeTagIfPresent<DispatchProtocolReq>();
    send(packet, "socketOut");
}

Referenced by sendFollowUp(), sendPdelayReq(), sendPdelayResp(), sendPdelayRespFollowUp(), and sendSync().

sendPdelayReq()

void inet::Gptp::sendPdelayReq

(

)

{
    ASSERT(slavePortId != -1);
    auto packet = new Packet("GptpPdelayReq");
    packet->addTag<MacAddressReq>()->setDestAddress(GPTP_MULTICAST_ADDRESS);
    auto gptp = makeShared<GptpPdelayReq>();
    gptp->setDomainNumber(domainNumber);
    gptp->setCorrectionField(CLOCKTIME_ZERO);
    //save and send IDs
    PortIdentity portId;
    portId.clockIdentity = clockIdentity;
    portId.portNumber = slavePortId;
    gptp->setSourcePortIdentity(portId);
    lastSentPdelayReqSequenceId = sequenceId++;
    gptp->setSequenceId(lastSentPdelayReqSequenceId);
    packet->insertAtFront(gptp);
    pdelayReqEventEgressTimestamp = clock->getClockTime();
    rcvdPdelayResp = false;
    sendPacketToNIC(packet, slavePortId);
}

Referenced by handleSelfMessage().

sendPdelayResp()

void inet::Gptp::sendPdelayResp

(

GptpReqAnswerEvent *

req

)

{
    int portId = req->getPortId();
    auto packet = new Packet("GptpPdelayResp");
    packet->addTag<MacAddressReq>()->setDestAddress(GPTP_MULTICAST_ADDRESS);
    auto gptp = makeShared<GptpPdelayResp>();
    gptp->setDomainNumber(domainNumber);
    //??? gptp->setSentTime(clock->getClockTime());
    gptp->setRequestingPortIdentity(req->getSourcePortIdentity());
    gptp->setSequenceId(req->getSequenceId());
    gptp->setRequestReceiptTimestamp(req->getIngressTimestamp());
    packet->insertAtFront(gptp);
    sendPacketToNIC(packet, portId);
    // The sendPdelayRespFollowUp(portId) called by receiveSignal(), when GptpPdelayResp sent
}

Referenced by handleSelfMessage().

sendPdelayRespFollowUp()

void inet::Gptp::sendPdelayRespFollowUp	(	int	portId,
		const GptpPdelayResp *	resp
	)

{
    auto packet = new Packet("GptpPdelayRespFollowUp");
    packet->addTag<MacAddressReq>()->setDestAddress(GPTP_MULTICAST_ADDRESS);
    auto gptp = makeShared<GptpPdelayRespFollowUp>();
    auto now = clock->getClockTime();
    gptp->setDomainNumber(domainNumber);
    gptp->setResponseOriginTimestamp(now);
    gptp->setRequestingPortIdentity(resp->getRequestingPortIdentity());
    gptp->setSequenceId(resp->getSequenceId());
    packet->insertAtFront(gptp);
    sendPacketToNIC(packet, portId);
}

Referenced by receiveSignal().

sendSync()

void inet::Gptp::sendSync

(

)

{
    auto packet = new Packet("GptpSync");
    packet->addTag<MacAddressReq>()->setDestAddress(GPTP_MULTICAST_ADDRESS);
    auto gptp = makeShared<GptpSync>();
    gptp->setDomainNumber(domainNumber);
    /* OriginTimestamp always get Sync departure time from grand master */
    if (gptpNodeType == MASTER_NODE) {
        originTimestamp = clock->getClockTime();
    }
    //gptp->setOriginTimestamp(CLOCKTIME_ZERO);
    gptp->setSequenceId(sequenceId++);

    sentTimeSyncSync = clock->getClockTime();
    packet->insertAtFront(gptp);

    for (auto port: masterPortIds)
        sendPacketToNIC(packet->dup(), port);
    delete packet;

    // The sendFollowUp(portId) called by receiveSignal(), when GptpSync sent
}

Referenced by handleMessage(), and handleSelfMessage().

synchronize()

void inet::Gptp::synchronize

(

)

{
    simtime_t now = simTime();
    clocktime_t origNow = clock->getClockTime();
    clocktime_t residenceTime = origNow - syncIngressTimestamp;

    emit(timeDifferenceSignal, CLOCKTIME_AS_SIMTIME(origNow) - now);

    /************** Time synchronization *****************************************
     * Local time is adjusted using peer delay, correction field, residence time *
     * and packet transmission time based departure time of Sync message from GM *
     *****************************************************************************/
    clocktime_t newTime = peerSentTimeSync + peerDelay + correctionField + residenceTime;

    ASSERT(gptpNodeType != MASTER_NODE);
    check_and_cast<SettableClock *>(clock.get())->setClockTime(newTime);

    // TODO computeGmRateRatio:
    gmRateRatio = (origNow - newLocalTimeAtTimeSync) / (syncIngressTimestamp - receivedTimeSync);
    gmRateRatio = 1.0 / gmRateRatio;

    oldLocalTimeAtTimeSync = origNow;
    newLocalTimeAtTimeSync = clock->getClockTime();
    receivedTimeSync = syncIngressTimestamp;

    // adjust local timestamps, too
    pdelayReqEventEgressTimestamp += newLocalTimeAtTimeSync - oldLocalTimeAtTimeSync;

    /************** Rate ratio calculation *************************************
     * It is calculated based on interval between two successive Sync messages *
     ***************************************************************************/

    EV_INFO << "############## SYNC #####################################"<< endl;
    EV_INFO << "RECEIVED TIME AFTER SYNC   - " << newLocalTimeAtTimeSync << endl;
    EV_INFO << "RECEIVED SIM TIME          - " << now << endl;
    EV_INFO << "ORIGIN TIME SYNC           - " << peerSentTimeSync << endl;
    EV_INFO << "RESIDENCE TIME             - " << residenceTime << endl;
    EV_INFO << "CORRECTION FIELD           - " << correctionField << endl;
    EV_INFO << "PROPAGATION DELAY          - " << peerDelay << endl;
    EV_INFO << "TIME DIFFERENCE TO SIMTIME - " << CLOCKTIME_AS_SIMTIME(newLocalTimeAtTimeSync) - now << endl;
    EV_INFO << "RATE RATIO                 - " << gmRateRatio << endl;

    emit(rateRatioSignal, gmRateRatio);
    emit(localTimeSignal, CLOCKTIME_AS_SIMTIME(newLocalTimeAtTimeSync));
    emit(timeDifferenceSignal, CLOCKTIME_AS_SIMTIME(newLocalTimeAtTimeSync) - now);
}

Referenced by processFollowUp().

Member Data Documentation

clockIdentity

int64_t inet::Gptp::clockIdentity = 0

private

Referenced by initialize(), processPdelayResp(), processPdelayRespFollowUp(), and sendPdelayReq().

correctionField

clocktime_t inet::Gptp::correctionField

private

Referenced by initialize(), processFollowUp(), and synchronize().

domainNumber

int inet::Gptp::domainNumber = -1

private

Referenced by initialize(), receiveSignal(), sendFollowUp(), sendPdelayReq(), sendPdelayResp(), sendPdelayRespFollowUp(), and sendSync().

gmRateRatio

double inet::Gptp::gmRateRatio = 1.0

private

Referenced by initialize(), processPdelayRespFollowUp(), sendFollowUp(), and synchronize().

GPTP_MULTICAST_ADDRESS

const MacAddress inet::Gptp::GPTP_MULTICAST_ADDRESS

static

Referenced by initialize(), sendFollowUp(), sendPdelayReq(), sendPdelayResp(), sendPdelayRespFollowUp(), and sendSync().

gptpNodeType

GptpNodeType inet::Gptp::gptpNodeType

private

Referenced by handleMessage(), initialize(), sendFollowUp(), sendSync(), and synchronize().

interfaceTable

ModuleRefByPar<IInterfaceTable> inet::Gptp::interfaceTable

private

Referenced by initialize(), and sendPacketToNIC().

lastReceivedGptpSyncSequenceId

uint16_t inet::Gptp::lastReceivedGptpSyncSequenceId = 0xffff

private

Referenced by processFollowUp(), and processSync().

lastSentPdelayReqSequenceId

uint16_t inet::Gptp::lastSentPdelayReqSequenceId = 0

private

Referenced by processPdelayResp(), processPdelayRespFollowUp(), and sendPdelayReq().

localTimeSignal

simsignal_t inet::Gptp::localTimeSignal = cComponent::registerSignal("localTime")

staticprivate

Referenced by synchronize().

masterPortIds

std::set<int> inet::Gptp::masterPortIds

private

Referenced by handleMessage(), initialize(), and sendSync().

newLocalTimeAtTimeSync

clocktime_t inet::Gptp::newLocalTimeAtTimeSync

private

Referenced by processFollowUp(), and synchronize().

oldLocalTimeAtTimeSync

clocktime_t inet::Gptp::oldLocalTimeAtTimeSync

private

Referenced by synchronize().

originTimestamp

clocktime_t inet::Gptp::originTimestamp

private

Referenced by initialize(), processFollowUp(), and sendSync().

pdelayInterval

clocktime_t inet::Gptp::pdelayInterval

private

Referenced by handleSelfMessage(), and initialize().

pdelayReqEventEgressTimestamp

clocktime_t inet::Gptp::pdelayReqEventEgressTimestamp

private

Referenced by processPdelayRespFollowUp(), receiveSignal(), sendPdelayReq(), and synchronize().

pDelayReqProcessingTime

clocktime_t inet::Gptp::pDelayReqProcessingTime

private

Referenced by initialize(), and processPdelayReq().

pdelayRespEventIngressTimestamp

clocktime_t inet::Gptp::pdelayRespEventIngressTimestamp

private

Referenced by processPdelayResp(), and processPdelayRespFollowUp().

peerDelay

clocktime_t inet::Gptp::peerDelay

private

Referenced by initialize(), processFollowUp(), processPdelayRespFollowUp(), and synchronize().

peerDelaySignal

simsignal_t inet::Gptp::peerDelaySignal = cComponent::registerSignal("peerDelay")

staticprivate

Referenced by processPdelayRespFollowUp().

peerRequestReceiptTimestamp

clocktime_t inet::Gptp::peerRequestReceiptTimestamp

private

Referenced by processPdelayResp(), and processPdelayRespFollowUp().

peerResponseOriginTimestamp

clocktime_t inet::Gptp::peerResponseOriginTimestamp

private

Referenced by processPdelayResp(), and processPdelayRespFollowUp().

peerSentTimeSync

clocktime_t inet::Gptp::peerSentTimeSync

private

Referenced by processFollowUp(), and synchronize().

rateRatioSignal

simsignal_t inet::Gptp::rateRatioSignal = cComponent::registerSignal("rateRatio")

staticprivate

Referenced by synchronize().

rcvdGptpSync

bool inet::Gptp::rcvdGptpSync = false

private

Referenced by processFollowUp(), and processSync().

rcvdPdelayResp

bool inet::Gptp::rcvdPdelayResp = false

private

Referenced by processPdelayResp(), processPdelayRespFollowUp(), and sendPdelayReq().

receivedRateRatio

double inet::Gptp::receivedRateRatio = 1.0

private

Referenced by processFollowUp().

receivedTimeSync

clocktime_t inet::Gptp::receivedTimeSync

private

Referenced by initialize(), and synchronize().

requestMsg

ClockEvent* inet::Gptp::requestMsg = nullptr

private

Referenced by initialize(), and ~Gptp().

selfMsgDelayReq

ClockEvent* inet::Gptp::selfMsgDelayReq = nullptr

private

Referenced by handleSelfMessage(), initialize(), and ~Gptp().

selfMsgSync

ClockEvent* inet::Gptp::selfMsgSync = nullptr

private

Referenced by handleSelfMessage(), initialize(), and ~Gptp().

sentTimeSyncSync

clocktime_t inet::Gptp::sentTimeSyncSync

private

Referenced by sendSync().

sequenceId

uint16_t inet::Gptp::sequenceId = 0

private

Referenced by sendPdelayReq(), and sendSync().

slavePortId

int inet::Gptp::slavePortId = -1

private

Referenced by handleMessage(), initialize(), processPdelayResp(), processPdelayRespFollowUp(), receiveSignal(), and sendPdelayReq().

syncIngressTimestamp

clocktime_t inet::Gptp::syncIngressTimestamp

private

Referenced by processSync(), and synchronize().

syncInterval

clocktime_t inet::Gptp::syncInterval

private

Referenced by handleSelfMessage(), and initialize().

timeDifferenceSignal

simsignal_t inet::Gptp::timeDifferenceSignal = cComponent::registerSignal("timeDifference")

staticprivate

Referenced by synchronize().

---

The documentation for this class was generated from the following files:

• Gptp.h
• Gptp.cc
