inet::InterfaceReq Class Reference

Class generated from inet/linklayer/common/InterfaceTag.msg:21 by opp_msgtool. More...

#include <InterfaceTag_m.h>

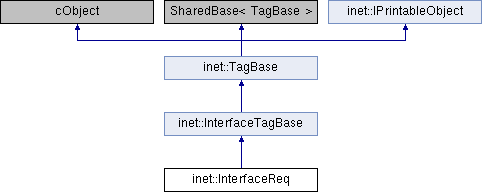

Inheritance diagram for inet::InterfaceReq:

Public Member Functions
	InterfaceReq ()
	InterfaceReq (const InterfaceReq &other)
virtual	~InterfaceReq ()
InterfaceReq &	operator= (const InterfaceReq &other)
virtual InterfaceReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
Public Member Functions inherited from inet::InterfaceTagBase
	InterfaceTagBase ()
	InterfaceTagBase (const InterfaceTagBase &other)
virtual	~InterfaceTagBase ()
InterfaceTagBase &	operator= (const InterfaceTagBase &other)
virtual int	getInterfaceId () const
virtual void	setInterfaceId (int interfaceId)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const InterfaceReq &)=delete
Protected Member Functions inherited from inet::InterfaceTagBase
bool	operator== (const InterfaceTagBase &)=delete

Private Member Functions
void	copy (const InterfaceReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::InterfaceTagBase
int	interfaceId = -1

Detailed Description

Class generated from inet/linklayer/common/InterfaceTag.msg:21 by opp_msgtool.

//
// Determines the outgoing interface where the packet should leave the network node.
//
class InterfaceReq extends InterfaceTagBase
{
}

Constructor & Destructor Documentation

InterfaceReq() [1/2]

inet::InterfaceReq::InterfaceReq

(

)

InterfaceReq() [2/2]

inet::InterfaceReq::InterfaceReq

(

const InterfaceReq &

other

)

~InterfaceReq()

virtual inet::InterfaceReq::~InterfaceReq ( )

virtual

Member Function Documentation

copy()

void inet::InterfaceReq::copy ( const InterfaceReq &  other )

private

dup()

virtual InterfaceReq* inet::InterfaceReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::InterfaceTagBase.

{return new InterfaceReq(*this);}

operator=()

InterfaceReq& inet::InterfaceReq::operator=

(

const InterfaceReq &

other

)

operator==()

bool inet::InterfaceReq::operator== ( const InterfaceReq &  )

protecteddelete

parsimPack()

virtual void inet::InterfaceReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::InterfaceTagBase.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::InterfaceReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::InterfaceTagBase.

Referenced by inet::doParsimUnpacking().

---

The documentation for this class was generated from the following file:

• InterfaceTag_m.h
