inet::visualizer::RoutingTableOsgVisualizer Class Reference

#include <RoutingTableOsgVisualizer.h>

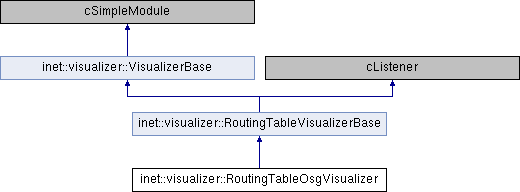

Inheritance diagram for inet::visualizer::RoutingTableOsgVisualizer:

Classes
class	RouteOsgVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual const RouteVisualization *	createRouteVisualization (Ipv4Route *route, cModule *node, cModule *nextHop) const override
virtual void	addRouteVisualization (const RouteVisualization *routeVisualization) override
virtual void	removeRouteVisualization (const RouteVisualization *routeVisualization) override
virtual void	refreshRouteVisualization (const RouteVisualization *routeVisualization) const override
Protected Member Functions inherited from inet::visualizer::RoutingTableVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual const RouteVisualization *	getRouteVisualization (Ipv4Route *route, int nodeModuleId, int nextHopModuleId)
virtual std::vector< Ipv4Address >	getDestinations ()
virtual void	addRouteVisualizations (IIpv4RoutingTable *routingTable)
virtual void	removeRouteVisualizations (IIpv4RoutingTable *routingTable)
virtual void	removeAllRouteVisualizations ()
virtual void	updateRouteVisualizations (IIpv4RoutingTable *routingTable)
virtual void	updateAllRouteVisualizations ()
virtual std::string	getRouteVisualizationText (const Ipv4Route *route) const
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::RoutingTableVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *obj, cObject *details) override
Protected Attributes inherited from inet::visualizer::RoutingTableVisualizerBase
bool	displayRoutingTables = false
bool	displayRoutesIndividually = false
bool	displayLabels = false
NetworkNodeFilter	destinationFilter
NetworkNodeFilter	nodeFilter
cFigure::Color	lineColor
cFigure::LineStyle	lineStyle
double	lineShift = NaN
const char *	lineShiftMode = nullptr
double	lineWidth = NaN
double	lineContactSpacing = NaN
const char *	lineContactMode = nullptr
StringFormat	labelFormat
cFigure::Font	labelFont
cFigure::Color	labelColor
LineManager *	lineManager = nullptr
std::map< std::tuple< Ipv4Address, int, int >, const RouteVisualization * >	routeVisualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

addRouteVisualization()

void inet::visualizer::RoutingTableOsgVisualizer::addRouteVisualization ( const RouteVisualization *  routeVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::RoutingTableVisualizerBase.

{
    RoutingTableVisualizerBase::addRouteVisualization(routeVisualization);
    auto routeOsgVisualization = static_cast<const RouteOsgVisualization *>(routeVisualization);
    auto scene = inet::osg::TopLevelScene::getSimulationScene(visualizationTargetModule);
    scene->addChild(routeOsgVisualization->node);
}

createRouteVisualization()

const RoutingTableVisualizerBase::RouteVisualization * inet::visualizer::RoutingTableOsgVisualizer::createRouteVisualization ( Ipv4Route *  route, cModule *  node, cModule *  nextHop  ) const

overrideprotectedvirtual

Implements inet::visualizer::RoutingTableVisualizerBase.

{
    auto nodePosition = getPosition(node);
    auto nextHopPosition = getPosition(nextHop);
    auto osgNode = inet::osg::createLine(nodePosition, nextHopPosition, cFigure::ARROW_NONE, cFigure::ARROW_BARBED);
    auto stateSet = inet::osg::createStateSet(lineColor, 1.0, false);
    stateSet->setMode(GL_LIGHTING, osg::StateAttribute::OFF | osg::StateAttribute::OVERRIDE);
    auto lineWidth = new osg::LineWidth();
    lineWidth->setWidth(this->lineWidth);
    stateSet->setAttributeAndModes(lineWidth, osg::StateAttribute::ON);
    osgNode->setStateSet(stateSet);
    return new RouteOsgVisualization(osgNode, route, node->getId(), nextHop->getId());
}

initialize()

void inet::visualizer::RoutingTableOsgVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::RoutingTableVisualizerBase.

{
    RoutingTableVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        auto canvas = visualizationTargetModule->getCanvas();
        lineManager = LineManager::getOsgLineManager(canvas);
    }
}

refreshRouteVisualization()

void inet::visualizer::RoutingTableOsgVisualizer::refreshRouteVisualization ( const RouteVisualization *  routeVisualization ) const

overrideprotectedvirtual

Implements inet::visualizer::RoutingTableVisualizerBase.

{
    // TODO
//    auto routeOsgVisualization = static_cast<const RouteOsgVisualization *>(routeVisualization);
//    auto text = getRouteVisualizationText(routeVisualization->route);
}

removeRouteVisualization()

void inet::visualizer::RoutingTableOsgVisualizer::removeRouteVisualization ( const RouteVisualization *  routeVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::RoutingTableVisualizerBase.

{
    RoutingTableVisualizerBase::removeRouteVisualization(routeVisualization);
    auto routeOsgVisualization = static_cast<const RouteOsgVisualization *>(routeVisualization);
    auto node = routeOsgVisualization->node;
    node->getParent(0)->removeChild(node);
}

---

The documentation for this class was generated from the following files:

• RoutingTableOsgVisualizer.h
• RoutingTableOsgVisualizer.cc
