#include <NetworkConnectionVisualizerBase.h>

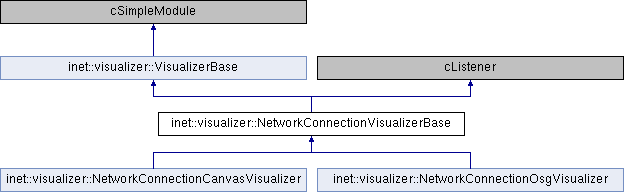

Inheritance diagram for inet::visualizer::NetworkConnectionVisualizerBase:

Protected Member Functions
virtual void	initialize (int stage) override

virtual void	handleParameterChange (const char *name) override

virtual void	createNetworkConnectionVisualization (cModule startNetworkNode, cModule endNetworkNode)=0

Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override

virtual Coord	getPosition (const cModule *networkNode) const

virtual Coord	getContactPosition (const cModule networkNode, const Coord &fromPosition, const char contactMode, double contactSpacing) const

virtual Quaternion	getOrientation (const cModule *networkNode) const

virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
NetworkNodeFilter	nodeFilter

cFigure::Color	lineColor

cFigure::LineStyle	lineStyle = cFigure::LINE_SOLID

double	lineWidth = NaN

Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr

cModule *	visualizationSubjectModule = nullptr

const char *	tags = nullptr

Member Function Documentation

◆ createNetworkConnectionVisualization()

virtual void inet::visualizer::NetworkConnectionVisualizerBase::createNetworkConnectionVisualization	(	cModule *	startNetworkNode,
		cModule *	endNetworkNode
	)

protectedpure virtual

Implemented in inet::visualizer::NetworkConnectionCanvasVisualizer, and inet::visualizer::NetworkConnectionOsgVisualizer.

Referenced by initialize().

◆ handleParameterChange()

void inet::visualizer::NetworkConnectionVisualizerBase::handleParameterChange ( const char * name )

overrideprotectedvirtual

 {
     if (!hasGUI()) return;
     if (name != nullptr) {
         if (!strcmp(name, "nodeFilter"))
             nodeFilter.setPattern(par("nodeFilter"));
         // TODO
     }
 }

◆ initialize()

void inet::visualizer::NetworkConnectionVisualizerBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::NetworkConnectionCanvasVisualizer, and inet::visualizer::NetworkConnectionOsgVisualizer.

 {
     VisualizerBase::initialize(stage);
     if (!hasGUI()) return;
     if (stage == INITSTAGE_LOCAL) {
         nodeFilter.setPattern(par("nodeFilter"));
         lineColor = cFigure::Color(par("lineColor"));
         lineStyle = cFigure::parseLineStyle(par("lineStyle"));
         lineWidth = par("lineWidth");
     }
     else if (stage == INITSTAGE_LAST) {
         for (cModule::SubmoduleIterator it(visualizationSubjectModule); !it.end(); it++) {
             auto networkNode = *it;
             if (isNetworkNode(networkNode) && nodeFilter.matches(networkNode)) {
                 for (cModule::GateIterator gt(networkNode); !gt.end(); gt++) {
                     auto gate = *gt;
                     auto startNetworkNode = getContainingNode(gate->getPathStartGate()->getOwnerModule());
                     auto endNetworkNode = getContainingNode(gate->getPathEndGate()->getOwnerModule());
                     createNetworkConnectionVisualization(startNetworkNode, endNetworkNode);
                 }
             }
         }
     }
 }
