#include <NetworkConnectionCanvasVisualizer.h>

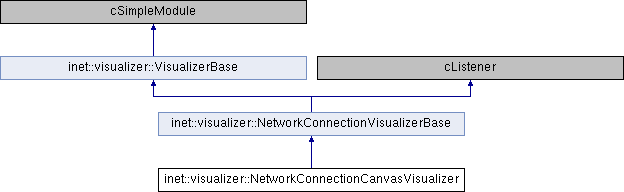

Inheritance diagram for inet::visualizer::NetworkConnectionCanvasVisualizer:

Protected Member Functions
virtual void	initialize (int stage) override

void	createNetworkConnectionVisualization (cModule startNetworkNode, cModule endNetworkNode) override

Protected Member Functions inherited from inet::visualizer::NetworkConnectionVisualizerBase
virtual void	handleParameterChange (const char *name) override

Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override

virtual Coord	getPosition (const cModule *networkNode) const

virtual Coord	getContactPosition (const cModule networkNode, const Coord &fromPosition, const char contactMode, double contactSpacing) const

virtual Quaternion	getOrientation (const cModule *networkNode) const

virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
double	zIndex = NaN

const CanvasProjection *	canvasProjection = nullptr

Protected Attributes inherited from inet::visualizer::NetworkConnectionVisualizerBase
NetworkNodeFilter	nodeFilter

cFigure::Color	lineColor

cFigure::LineStyle	lineStyle = cFigure::LINE_SOLID

double	lineWidth = NaN

Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr

cModule *	visualizationSubjectModule = nullptr

const char *	tags = nullptr

Member Function Documentation

◆ createNetworkConnectionVisualization()

void inet::visualizer::NetworkConnectionCanvasVisualizer::createNetworkConnectionVisualization	(	cModule *	startNetworkNode,
		cModule *	endNetworkNode
	)

overrideprotectedvirtual

Implements inet::visualizer::NetworkConnectionVisualizerBase.

 {
     auto lineFigure = new cLineFigure("connection");
     lineFigure->setLineColor(lineColor);
     lineFigure->setLineStyle(lineStyle);
     lineFigure->setLineWidth(lineWidth);
     lineFigure->setStart(canvasProjection->computeCanvasPoint(getPosition(startNetworkNode)));
     lineFigure->setEnd(canvasProjection->computeCanvasPoint(getPosition(endNetworkNode)));
     lineFigure->setEndArrowhead(cFigure::ARROW_BARBED);
     lineFigure->setZIndex(zIndex);
     visualizationTargetModule->getCanvas()->addFigure(lineFigure);
 }

◆ initialize()

void inet::visualizer::NetworkConnectionCanvasVisualizer::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::NetworkConnectionVisualizerBase.

 {
     NetworkConnectionVisualizerBase::initialize(stage);
     if (!hasGUI()) return;
     if (stage == INITSTAGE_LOCAL) {
         zIndex = par("zIndex");
         canvasProjection = CanvasProjection::getCanvasProjection(visualizationTargetModule->getCanvas());
     }
 }

Member Data Documentation

◆ canvasProjection

const CanvasProjection* inet::visualizer::NetworkConnectionCanvasVisualizer::canvasProjection = nullptr

protected

Referenced by createNetworkConnectionVisualization(), and initialize().

◆ zIndex

double inet::visualizer::NetworkConnectionCanvasVisualizer::zIndex = NaN
