inet::visualizer::InterfaceTableOsgVisualizer Class Reference

#include <InterfaceTableOsgVisualizer.h>

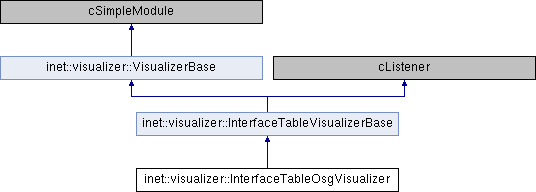

Inheritance diagram for inet::visualizer::InterfaceTableOsgVisualizer:

Classes
class	InterfaceOsgVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual InterfaceVisualization *	createInterfaceVisualization (cModule *networkNode, NetworkInterface *networkInterface) override
virtual void	addInterfaceVisualization (const InterfaceVisualization *interfaceVisualization) override
virtual void	removeInterfaceVisualization (const InterfaceVisualization *interfaceVisualization) override
virtual void	refreshInterfaceVisualization (const InterfaceVisualization *interfaceVisualization, const NetworkInterface *networkInterface) override
Protected Member Functions inherited from inet::visualizer::InterfaceTableVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual cModule *	getNetworkNode (const InterfaceVisualization *interfaceVisualization)
virtual cGate *	getOutputGate (cModule *networkNode, NetworkInterface *networkInterface)
virtual cGate *	getOutputGate (const InterfaceVisualization *interfaceVisualization)
virtual const InterfaceVisualization *	getInterfaceVisualization (cModule *networkNode, NetworkInterface *networkInterface)
virtual void	addAllInterfaceVisualizations ()
virtual void	removeAllInterfaceVisualizations ()
virtual void	updateAllInterfaceVisualizations ()
virtual std::string	getVisualizationText (const NetworkInterface *networkInterface)
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
ModuleRefByPar< NetworkNodeOsgVisualizer >	networkNodeVisualizer
Protected Attributes inherited from inet::visualizer::InterfaceTableVisualizerBase
bool	displayInterfaceTables = false
bool	displayWiredInterfacesAtConnections = false
bool	displayBackground = false
NetworkNodeFilter	nodeFilter
InterfaceFilter	interfaceFilter
StringFormat	format
Placement	placementHint
double	placementPriority
cFigure::Font	font
cFigure::Color	textColor
cFigure::Color	backgroundColor
double	opacity = NaN
std::map< std::pair< int, int >, const InterfaceVisualization * >	interfaceVisualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::InterfaceTableVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Member Function Documentation

addInterfaceVisualization()

void inet::visualizer::InterfaceTableOsgVisualizer::addInterfaceVisualization ( const InterfaceVisualization *  interfaceVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::InterfaceTableVisualizerBase.

{
    InterfaceTableVisualizerBase::addInterfaceVisualization(interfaceVisualization);
    auto interfaceOsgVisualization = static_cast<const InterfaceOsgVisualization *>(interfaceVisualization);
    interfaceOsgVisualization->networkNodeVisualization->addAnnotation(interfaceOsgVisualization->node, osg::Vec3d(100, 18, 0), 1.0);
}

createInterfaceVisualization()

InterfaceTableVisualizerBase::InterfaceVisualization * inet::visualizer::InterfaceTableOsgVisualizer::createInterfaceVisualization ( cModule *  networkNode, NetworkInterface *  networkInterface  )

overrideprotectedvirtual

Implements inet::visualizer::InterfaceTableVisualizerBase.

{
    auto gate = getOutputGate(networkNode, networkInterface);
    auto label = new osgText::Text();
    label->setCharacterSize(18);
    label->setBoundingBoxColor(osg::Vec4(backgroundColor.red / 255.0, backgroundColor.green / 255.0, backgroundColor.blue / 255.0, opacity));
    label->setColor(osg::Vec4(textColor.red / 255.0, textColor.green / 255.0, textColor.blue / 255.0, opacity));
    label->setAlignment(osgText::Text::CENTER_BOTTOM);
    label->setText(getVisualizationText(networkInterface).c_str());
    label->setDrawMode(osgText::Text::FILLEDBOUNDINGBOX | osgText::Text::TEXT);
    label->setPosition(osg::Vec3(0.0, 0.0, 0.0));
    auto geode = new osg::Geode();
    geode->getOrCreateStateSet()->setMode(GL_LIGHTING, osg::StateAttribute::OFF | osg::StateAttribute::OVERRIDE);
    geode->getOrCreateStateSet()->setMode(GL_DEPTH_TEST, osg::StateAttribute::OFF | osg::StateAttribute::OVERRIDE);
    geode->addDrawable(label);
    auto networkNodeVisualization = networkNodeVisualizer->getNetworkNodeVisualization(networkNode);
    return new InterfaceOsgVisualization(networkNodeVisualization, geode, networkNode->getId(), gate == nullptr ? -1 : gate->getId(), networkInterface->getInterfaceId());
}

initialize()

void inet::visualizer::InterfaceTableOsgVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::InterfaceTableVisualizerBase.

{
    InterfaceTableVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        networkNodeVisualizer.reference(this, "networkNodeVisualizerModule", true);
    }
}

refreshInterfaceVisualization()

void inet::visualizer::InterfaceTableOsgVisualizer::refreshInterfaceVisualization ( const InterfaceVisualization *  interfaceVisualization, const NetworkInterface *  networkInterface  )

overrideprotectedvirtual

Implements inet::visualizer::InterfaceTableVisualizerBase.

{
    auto interfaceOsgVisualization = static_cast<const InterfaceOsgVisualization *>(interfaceVisualization);
    auto geode = check_and_cast<osg::Geode *>(interfaceOsgVisualization->node);
    auto label = check_and_cast<osgText::Text *>(geode->getDrawable(0));
    label->setText(getVisualizationText(networkInterface).c_str());
}

removeInterfaceVisualization()

void inet::visualizer::InterfaceTableOsgVisualizer::removeInterfaceVisualization ( const InterfaceVisualization *  interfaceVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::InterfaceTableVisualizerBase.

{
    InterfaceTableVisualizerBase::removeInterfaceVisualization(interfaceVisualization);
    auto interfaceOsgVisualization = static_cast<const InterfaceOsgVisualization *>(interfaceVisualization);
    if (networkNodeVisualizer != nullptr)
        interfaceOsgVisualization->networkNodeVisualization->removeAnnotation(interfaceOsgVisualization->node);
}

Member Data Documentation

networkNodeVisualizer

ModuleRefByPar<NetworkNodeOsgVisualizer> inet::visualizer::InterfaceTableOsgVisualizer::networkNodeVisualizer

protected

Referenced by createInterfaceVisualization(), initialize(), and removeInterfaceVisualization().

---

The documentation for this class was generated from the following files:

• InterfaceTableOsgVisualizer.h
• InterfaceTableOsgVisualizer.cc
