This class implements a simple total power integrating energy storage. More...

#include <SimpleEpEnergyStorage.h>

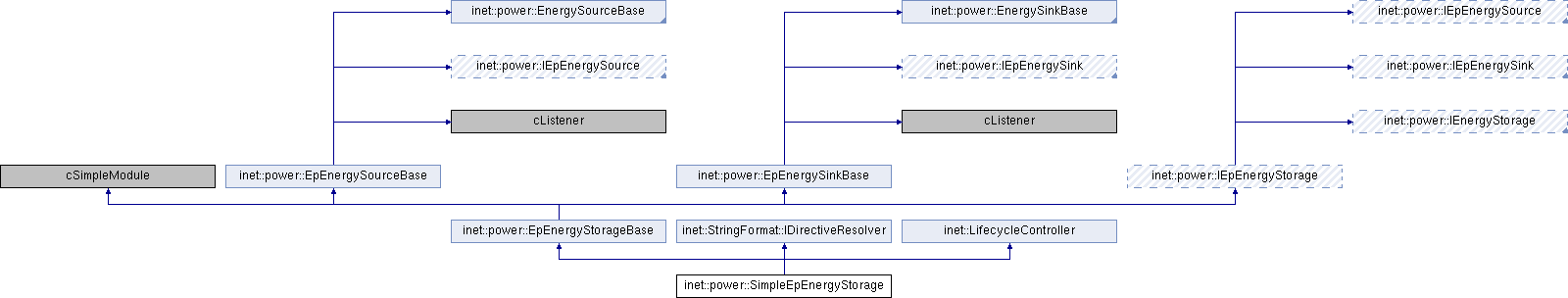

Inheritance diagram for inet::power::SimpleEpEnergyStorage:

Public Member Functions
virtual	~SimpleEpEnergyStorage ()

virtual J	getNominalEnergyCapacity () const override
	Returns the nominal energy capacity in the range [0, +infinity]. More...

virtual J	getResidualEnergyCapacity () const override
	Returns the residual energy capacity in the range [0, nominalCapacity]. More...

Public Member Functions inherited from inet::power::EpEnergyStorageBase
virtual void	addEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Adds a new energy consumer to the energy source. More...

virtual void	removeEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Removes a previously added energy consumer from this energy source. More...

virtual void	addEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Adds a new energy generator to the energy sink. More...

virtual void	removeEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Removes a previously added energy generator from this energy sink. More...

virtual void	receiveSignal (cComponent source, simsignal_t signal, double value, cObject details) override

Public Member Functions inherited from inet::power::EpEnergySourceBase
virtual W	getTotalPowerConsumption () const override
	Returns the total power consumption in the range [0, +infinity). More...

Public Member Functions inherited from inet::power::EnergySourceBase
virtual int	getNumEnergyConsumers () const override
	Returns the number of energy consumers in the range [0, +infinity). More...

virtual const IEnergyConsumer *	getEnergyConsumer (int index) const override
	Returns the energy consumer for the provided index. More...

Public Member Functions inherited from inet::power::IEnergySource
virtual	~IEnergySource ()

Public Member Functions inherited from inet::power::EpEnergySinkBase
virtual W	getTotalPowerGeneration () const override
	Returns the total power generation in the range [0, +infinity). More...

Public Member Functions inherited from inet::power::EnergySinkBase
virtual int	getNumEnergyGenerators () const override
	Returns the number of energy generators in the range [0, +infinity). More...

virtual const IEnergyGenerator *	getEnergyGenerator (int index) const override
	Returns the energy generator for the provided index. More...

Public Member Functions inherited from inet::power::IEnergySink
virtual	~IEnergySink ()

Public Member Functions inherited from inet::LifecycleController
	LifecycleController ()

virtual	~LifecycleController ()

virtual bool	initiateOperation (LifecycleOperation operation, IDoneCallback completionCallback=nullptr)
	Initiate an operation. More...

Protected Member Functions
virtual void	initialize (int stage) override

virtual void	handleMessage (cMessage *message) override

virtual void	refreshDisplay () const override

virtual void	updateDisplayString () const

virtual const char *	resolveDirective (char directive) const override

virtual void	updateTotalPowerConsumption () override

virtual void	updateTotalPowerGeneration () override

virtual void	executeNodeOperation (J newResidualCapacity)

virtual void	setResidualCapacity (J newResidualCapacity)

virtual void	updateResidualCapacity ()

virtual void	scheduleTimer ()

Protected Member Functions inherited from inet::power::EpEnergySourceBase
virtual W	computeTotalPowerConsumption () const

Protected Member Functions inherited from inet::power::EpEnergySinkBase
virtual W	computeTotalPowerGeneration () const

Protected Member Functions inherited from inet::LifecycleController
virtual bool	resumeOperation (LifecycleOperation *operation)

virtual void	doOneStage (LifecycleOperation operation, cModule submodule)

virtual void	moduleOperationStageCompleted (Callback *callback)

Protected Attributes
J	nominalCapacity = J(NaN)
	The nominal capacity is in the range [0, +infinity). More...

J	residualCapacity = J(NaN)
	The residual capacity is in the range [0, nominalCapacity]. More...

J	printCapacityStep = J(NaN)
	Specifies the amount of capacity change which will be reported. More...

simtime_t	lastResidualCapacityUpdate = -1
	The simulation time when the residual capacity was last updated. More...

cMessage *	timer = nullptr
	The timer that is scheduled to the earliest time when the energy storage will be depleted, the energy storage will be charged. More...

J	targetCapacity = J(NaN)
	The capacity that will be set when the timer expires. More...

cModule *	networkNode = nullptr
	The containing node module. More...

NodeStatus *	nodeStatus = nullptr
	The status of the node. More...

Protected Attributes inherited from inet::power::EpEnergySourceBase
W	totalPowerConsumption = W(NaN)

Protected Attributes inherited from inet::power::EnergySourceBase
std::vector< const IEnergyConsumer * >	energyConsumers

Protected Attributes inherited from inet::power::EpEnergySinkBase
W	totalPowerGeneration = W(NaN)

Protected Attributes inherited from inet::power::EnergySinkBase
std::vector< const IEnergyGenerator * >	energyGenerators

Protected Attributes inherited from inet::LifecycleController
Callback *	spareCallback = nullptr

Additional Inherited Members
Static Public Attributes inherited from inet::power::IEpEnergySource
static simsignal_t	powerConsumptionChangedSignal = cComponent::registerSignal("powerConsumptionChanged")
	The signal that is used to publish power consumption changes. More...

Static Public Attributes inherited from inet::power::IEpEnergySink
static simsignal_t	powerGenerationChangedSignal = cComponent::registerSignal("powerGenerationChanged")
	The signal that is used to publish power generation changes. More...

Static Public Attributes inherited from inet::power::IEpEnergyStorage
static simsignal_t	residualEnergyCapacityChangedSignal = cComponent::registerSignal("residualEnergyCapacityChanged")
	The signal that is used to publish residual energy capacity changes also including when the energy storage becomes completely depleted or charged. More...

Detailed Description

This class implements a simple total power integrating energy storage.

It maintains its residual capacity by repeatedly scheduling a single timer to the next capacity update. The next update happens when either the storage becomes completely depleted, completely charged, or the next capacity report is done. Besides, it immediately updates the capacity when the total absorbed or provided power changes, and it also reschedules the timer.

See the corresponding NED file for more details.

Constructor & Destructor Documentation

◆ ~SimpleEpEnergyStorage()

inet::power::SimpleEpEnergyStorage::~SimpleEpEnergyStorage ( )

virtual

 {
     cancelAndDelete(timer);
 }

Member Function Documentation

◆ executeNodeOperation()

void inet::power::SimpleEpEnergyStorage::executeNodeOperation ( J newResidualCapacity )

protectedvirtual

 {
     if (newResidualCapacity <= J(0) && nodeStatus->getState() == NodeStatus::UP) {
         EV_WARN << "Energy storage failed" << endl;
         LifecycleOperation::StringMap params;
         ModuleCrashOperation *operation = new ModuleCrashOperation();
         operation->initialize(networkNode, params);
         initiateOperation(operation);
     }
 }

Referenced by setResidualCapacity().

◆ getNominalEnergyCapacity()

virtual J inet::power::SimpleEpEnergyStorage::getNominalEnergyCapacity ( ) const

inlineoverridevirtual

Returns the nominal energy capacity in the range [0, +infinity].

It specifies the maximum amount of energy that the energy storage can contain.

Implements inet::power::IEpEnergyStorage.

94 { return nominalCapacity; }

Referenced by resolveDirective().

◆ getResidualEnergyCapacity()

J inet::power::SimpleEpEnergyStorage::getResidualEnergyCapacity ( ) const

overridevirtual

Returns the residual energy capacity in the range [0, nominalCapacity].

It specifies the amount of energy that the energy storage contains at the moment.

Implements inet::power::IEpEnergyStorage.

 {
     const_cast<SimpleEpEnergyStorage *>(this)->updateResidualCapacity();
     return residualCapacity;
 }

Referenced by resolveDirective().

◆ handleMessage()

void inet::power::SimpleEpEnergyStorage::handleMessage ( cMessage * message )

overrideprotectedvirtual

 {
     if (message == timer) {
         setResidualCapacity(targetCapacity);
         scheduleTimer();
         EV_INFO << "Residual capacity = " << residualCapacity.get() << " (" << (int)round(unit(residualCapacity / nominalCapacity).get() * 100) << "%)" << endl;
     }
     else
         throw cRuntimeError("Unknown message");
 }

◆ initialize()

void inet::power::SimpleEpEnergyStorage::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::power::EpEnergyStorageBase.

 {
     EpEnergyStorageBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         nominalCapacity = J(par("nominalCapacity"));
         printCapacityStep = J(par("printCapacityStep"));
         timer = new cMessage("timer");
         networkNode = findContainingNode(this);
         if (networkNode != nullptr) {
             nodeStatus = dynamic_cast<NodeStatus *>(networkNode->getSubmodule("status"));
             if (!nodeStatus)
                 throw cRuntimeError("Cannot find node status");
         }
         setResidualCapacity(J(par("initialCapacity")));
         scheduleTimer();
         WATCH(residualCapacity);
     }
 }

◆ refreshDisplay()

void inet::power::SimpleEpEnergyStorage::refreshDisplay ( ) const

overrideprotectedvirtual

 {
     updateDisplayString();
 }

◆ resolveDirective()

const char * inet::power::SimpleEpEnergyStorage::resolveDirective ( char directive ) const

overrideprotectedvirtual

Implements inet::StringFormat::IDirectiveResolver.

 {
     static std::string result;
     switch (directive) {
         case 'c':
             result = getResidualEnergyCapacity().str();
             break;
         case 'p':
             result = std::to_string((int)std::round(100 * unit(getResidualEnergyCapacity() / getNominalEnergyCapacity()).get())) + "%";
             break;
         default:
             throw cRuntimeError("Unknown directive: %c", directive);
     }
     return result.c_str();
 }

◆ scheduleTimer()

void inet::power::SimpleEpEnergyStorage::scheduleTimer ( )

protectedvirtual

 {
     W totalPower = totalPowerGeneration - totalPowerConsumption;
     targetCapacity = residualCapacity;
     if (totalPower > W(0)) {
         targetCapacity = std::isnan(printCapacityStep.get()) ? nominalCapacity : ceil(unit(residualCapacity / printCapacityStep).get()) * printCapacityStep;
         // NOTE: make sure capacity will change over time despite double arithmetic
         simtime_t remainingTime = unit((targetCapacity - residualCapacity) / totalPower / s(1)).get();
         if (remainingTime == 0)
             targetCapacity += printCapacityStep;
     }
     else if (totalPower < W(0)) {
         targetCapacity = std::isnan(printCapacityStep.get()) ? J(0) : floor(unit(residualCapacity / printCapacityStep).get()) * printCapacityStep;
         // make sure capacity will change over time despite double arithmetic
         simtime_t remainingTime = unit((targetCapacity - residualCapacity) / totalPower / s(1)).get();
         if (remainingTime == 0)
             targetCapacity -= printCapacityStep;
     }
     // enforce target capacity to be in range
     if (targetCapacity < J(0))
         targetCapacity = J(0);
     else if (targetCapacity > nominalCapacity)
         targetCapacity = nominalCapacity;
     if (timer->isScheduled())
         cancelEvent(timer);
     // don't schedule if there's no progress
     if (totalPower != W(0)) {
         simtime_t remainingTime = unit((targetCapacity - residualCapacity) / totalPower / s(1)).get();
         if (remainingTime > 0)
             scheduleAfter(remainingTime, timer);
     }
 }

Referenced by handleMessage(), initialize(), updateTotalPowerConsumption(), and updateTotalPowerGeneration().

◆ setResidualCapacity()

void inet::power::SimpleEpEnergyStorage::setResidualCapacity ( J newResidualCapacity )

protectedvirtual

 {
     residualCapacity = newResidualCapacity;
     lastResidualCapacityUpdate = simTime();
     if (residualCapacity == J(0))
         EV_WARN << "Energy storage depleted" << endl;
     else if (residualCapacity == nominalCapacity)
         EV_INFO << "Energy storage charged" << endl;
     if (networkNode != nullptr)
         executeNodeOperation(newResidualCapacity);
     emit(residualEnergyCapacityChangedSignal, residualCapacity.get());
 }

Referenced by handleMessage(), initialize(), and updateResidualCapacity().

◆ updateDisplayString()

void inet::power::SimpleEpEnergyStorage::updateDisplayString ( ) const

protectedvirtual

 {
     if (getEnvir()->isGUI()) {
         auto text = StringFormat::formatString(par("displayStringTextFormat"), this);
         getDisplayString().setTagArg("t", 0, text);
     }
 }

Referenced by refreshDisplay().

◆ updateResidualCapacity()

void inet::power::SimpleEpEnergyStorage::updateResidualCapacity ( )

protectedvirtual

 {
     simtime_t currentSimulationTime = simTime();
     if (currentSimulationTime != lastResidualCapacityUpdate) {
         J newResidualCapacity = residualCapacity + s((currentSimulationTime - lastResidualCapacityUpdate).dbl()) * (totalPowerGeneration - totalPowerConsumption);
         if (newResidualCapacity < J(0))
             newResidualCapacity = J(0);
         else if (newResidualCapacity > nominalCapacity)
             newResidualCapacity = nominalCapacity;
         setResidualCapacity(newResidualCapacity);
     }
 }

Referenced by getResidualEnergyCapacity(), updateTotalPowerConsumption(), and updateTotalPowerGeneration().

◆ updateTotalPowerConsumption()

void inet::power::SimpleEpEnergyStorage::updateTotalPowerConsumption ( )

overrideprotectedvirtual

Reimplemented from inet::power::EpEnergyStorageBase.

 {
     updateResidualCapacity();
     EpEnergyStorageBase::updateTotalPowerConsumption();
     scheduleTimer();
 }

◆ updateTotalPowerGeneration()

void inet::power::SimpleEpEnergyStorage::updateTotalPowerGeneration ( )

overrideprotectedvirtual

Reimplemented from inet::power::EpEnergyStorageBase.

 {
     updateResidualCapacity();
     EpEnergyStorageBase::updateTotalPowerGeneration();
     scheduleTimer();
 }

Member Data Documentation

◆ lastResidualCapacityUpdate

simtime_t inet::power::SimpleEpEnergyStorage::lastResidualCapacityUpdate = -1

protected

The simulation time when the residual capacity was last updated.

Referenced by setResidualCapacity(), and updateResidualCapacity().

◆ networkNode

cModule* inet::power::SimpleEpEnergyStorage::networkNode = nullptr

protected

The containing node module.

Referenced by executeNodeOperation(), initialize(), and setResidualCapacity().

◆ nodeStatus

NodeStatus* inet::power::SimpleEpEnergyStorage::nodeStatus = nullptr

protected

The status of the node.

Referenced by executeNodeOperation(), and initialize().

◆ nominalCapacity

J inet::power::SimpleEpEnergyStorage::nominalCapacity = J(NaN)

protected

The nominal capacity is in the range [0, +infinity).

Referenced by handleMessage(), initialize(), scheduleTimer(), setResidualCapacity(), and updateResidualCapacity().

◆ printCapacityStep

J inet::power::SimpleEpEnergyStorage::printCapacityStep = J(NaN)

protected

Specifies the amount of capacity change which will be reported.

Referenced by initialize(), and scheduleTimer().

◆ residualCapacity

J inet::power::SimpleEpEnergyStorage::residualCapacity = J(NaN)

protected

The residual capacity is in the range [0, nominalCapacity].

Referenced by getResidualEnergyCapacity(), handleMessage(), initialize(), scheduleTimer(), setResidualCapacity(), and updateResidualCapacity().

◆ targetCapacity

J inet::power::SimpleEpEnergyStorage::targetCapacity = J(NaN)

protected

The capacity that will be set when the timer expires.

Referenced by handleMessage(), and scheduleTimer().

◆ timer

cMessage* inet::power::SimpleEpEnergyStorage::timer = nullptr

protected

The timer that is scheduled to the earliest time when the energy storage will be depleted, the energy storage will be charged.

Referenced by handleMessage(), initialize(), scheduleTimer(), and ~SimpleEpEnergyStorage().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~SimpleEpEnergyStorage()

Member Function Documentation

◆ executeNodeOperation()

◆ getNominalEnergyCapacity()

◆ getResidualEnergyCapacity()

◆ handleMessage()

◆ initialize()

◆ refreshDisplay()

◆ resolveDirective()

◆ scheduleTimer()

◆ setResidualCapacity()

◆ updateDisplayString()

◆ updateResidualCapacity()

◆ updateTotalPowerConsumption()

◆ updateTotalPowerGeneration()

Member Data Documentation

◆ lastResidualCapacityUpdate

◆ networkNode

◆ nodeStatus

◆ nominalCapacity

◆ printCapacityStep

◆ residualCapacity

◆ targetCapacity

◆ timer
