inet::power::EpEnergyStorageBase Class Reference

#include <EpEnergyStorageBase.h>

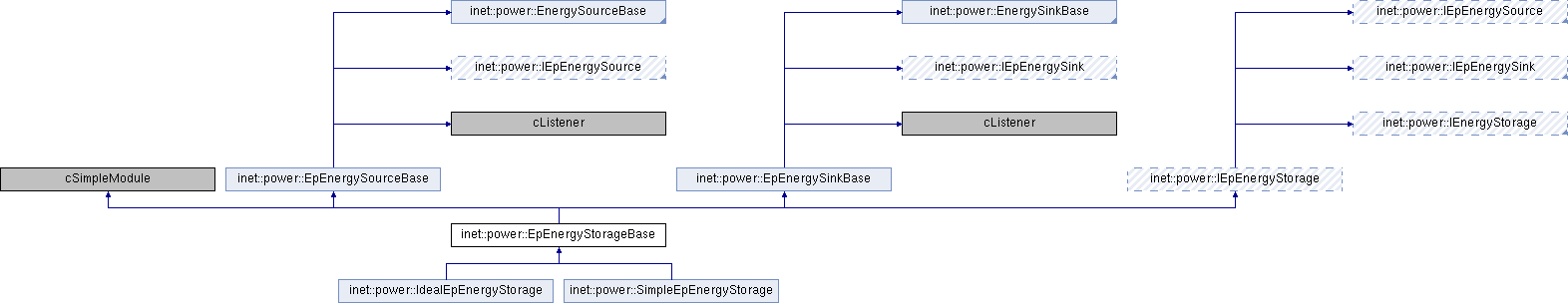

Inheritance diagram for inet::power::EpEnergyStorageBase:

Public Member Functions
virtual void	addEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Adds a new energy consumer to the energy source. More...
virtual void	removeEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Removes a previously added energy consumer from this energy source. More...
virtual void	addEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Adds a new energy generator to the energy sink. More...
virtual void	removeEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Removes a previously added energy generator from this energy sink. More...
virtual void	receiveSignal (cComponent *source, simsignal_t signal, double value, cObject *details) override
Public Member Functions inherited from inet::power::EpEnergySourceBase
virtual W	getTotalPowerConsumption () const override
	Returns the total power consumption in the range [0, +infinity). More...
Public Member Functions inherited from inet::power::EnergySourceBase
virtual int	getNumEnergyConsumers () const override
	Returns the number of energy consumers in the range [0, +infinity). More...
virtual const IEnergyConsumer *	getEnergyConsumer (int index) const override
	Returns the energy consumer for the provided index. More...
Public Member Functions inherited from inet::power::IEnergySource
virtual	~IEnergySource ()
Public Member Functions inherited from inet::power::EpEnergySinkBase
virtual W	getTotalPowerGeneration () const override
	Returns the total power generation in the range [0, +infinity). More...
Public Member Functions inherited from inet::power::EnergySinkBase
virtual int	getNumEnergyGenerators () const override
	Returns the number of energy generators in the range [0, +infinity). More...
virtual const IEnergyGenerator *	getEnergyGenerator (int index) const override
	Returns the energy generator for the provided index. More...
Public Member Functions inherited from inet::power::IEnergySink
virtual	~IEnergySink ()
Public Member Functions inherited from inet::power::IEpEnergyStorage
virtual J	getNominalEnergyCapacity () const =0
	Returns the nominal energy capacity in the range [0, +infinity]. More...
virtual J	getResidualEnergyCapacity () const =0
	Returns the residual energy capacity in the range [0, nominalCapacity]. More...

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	updateTotalPowerConsumption () override
virtual void	updateTotalPowerGeneration () override
Protected Member Functions inherited from inet::power::EpEnergySourceBase
virtual W	computeTotalPowerConsumption () const
Protected Member Functions inherited from inet::power::EpEnergySinkBase
virtual W	computeTotalPowerGeneration () const

Additional Inherited Members
Static Public Attributes inherited from inet::power::IEpEnergySource
static simsignal_t	powerConsumptionChangedSignal = cComponent::registerSignal("powerConsumptionChanged")
	The signal that is used to publish power consumption changes. More...
Static Public Attributes inherited from inet::power::IEpEnergySink
static simsignal_t	powerGenerationChangedSignal = cComponent::registerSignal("powerGenerationChanged")
	The signal that is used to publish power generation changes. More...
Static Public Attributes inherited from inet::power::IEpEnergyStorage
static simsignal_t	residualEnergyCapacityChangedSignal = cComponent::registerSignal("residualEnergyCapacityChanged")
	The signal that is used to publish residual energy capacity changes also including when the energy storage becomes completely depleted or charged. More...
Protected Attributes inherited from inet::power::EpEnergySourceBase
W	totalPowerConsumption = W(NaN)
Protected Attributes inherited from inet::power::EnergySourceBase
std::vector< const IEnergyConsumer * >	energyConsumers
Protected Attributes inherited from inet::power::EpEnergySinkBase
W	totalPowerGeneration = W(NaN)
Protected Attributes inherited from inet::power::EnergySinkBase
std::vector< const IEnergyGenerator * >	energyGenerators

Member Function Documentation

addEnergyConsumer()

void inet::power::EpEnergyStorageBase::addEnergyConsumer ( const IEnergyConsumer *  energyConsumer )

overridevirtual

Adds a new energy consumer to the energy source.

The energyConsumer parameter must not be nullptr.

Reimplemented from inet::power::EpEnergySourceBase.

{
    Enter_Method("addEnergyConsumer");
    EpEnergySourceBase::addEnergyConsumer(energyConsumer);
}

addEnergyGenerator()

void inet::power::EpEnergyStorageBase::addEnergyGenerator ( const IEnergyGenerator *  energyGenerator )

overridevirtual

Adds a new energy generator to the energy sink.

The energyGenerator parameter must not be nullptr.

Reimplemented from inet::power::EpEnergySinkBase.

{
    Enter_Method("addEnergyGenerator");
    EpEnergySinkBase::addEnergyGenerator(energyGenerator);
}

initialize()

void inet::power::EpEnergyStorageBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented in inet::power::SimpleEpEnergyStorage, and inet::power::IdealEpEnergyStorage.

{
    if (stage == INITSTAGE_LOCAL) {
        totalPowerConsumption = computeTotalPowerConsumption();
        totalPowerGeneration = computeTotalPowerGeneration();
        WATCH(totalPowerConsumption);
        WATCH(totalPowerGeneration);
    }
}

Referenced by inet::power::IdealEpEnergyStorage::initialize(), and inet::power::SimpleEpEnergyStorage::initialize().

receiveSignal()

void inet::power::EpEnergyStorageBase::receiveSignal ( cComponent *  source, simsignal_t  signal, double  value, cObject *  details  )

overridevirtual

{
    Enter_Method("%s", cComponent::getSignalName(signal));

    if (signal == IEpEnergyConsumer::powerConsumptionChangedSignal)
        updateTotalPowerConsumption();
    else if (signal == IEpEnergyGenerator::powerGenerationChangedSignal)
        updateTotalPowerGeneration();
}

removeEnergyConsumer()

void inet::power::EpEnergyStorageBase::removeEnergyConsumer ( const IEnergyConsumer *  energyConsumer )

overridevirtual

Removes a previously added energy consumer from this energy source.

This functions throws an exception if the consumer is not found.

Reimplemented from inet::power::EpEnergySourceBase.

{
    Enter_Method("removeEnergyConsumer");
    EpEnergySourceBase::removeEnergyConsumer(energyConsumer);
}

removeEnergyGenerator()

void inet::power::EpEnergyStorageBase::removeEnergyGenerator ( const IEnergyGenerator *  energyGenerator )

overridevirtual

Removes a previously added energy generator from this energy sink.

This functions throws an exception if the generator is not found.

Reimplemented from inet::power::EpEnergySinkBase.

{
    Enter_Method("removeEnergyGenerator");
    EpEnergySinkBase::removeEnergyGenerator(energyGenerator);
}

updateTotalPowerConsumption()

void inet::power::EpEnergyStorageBase::updateTotalPowerConsumption ( )

overrideprotectedvirtual

Reimplemented from inet::power::EpEnergySourceBase.

Reimplemented in inet::power::SimpleEpEnergyStorage, and inet::power::IdealEpEnergyStorage.

{
    EpEnergySourceBase::updateTotalPowerConsumption();
    emit(powerConsumptionChangedSignal, totalPowerConsumption.get());
}

Referenced by receiveSignal(), inet::power::IdealEpEnergyStorage::updateTotalPowerConsumption(), and inet::power::SimpleEpEnergyStorage::updateTotalPowerConsumption().

updateTotalPowerGeneration()

void inet::power::EpEnergyStorageBase::updateTotalPowerGeneration ( )

overrideprotectedvirtual

Reimplemented from inet::power::EpEnergySinkBase.

Reimplemented in inet::power::SimpleEpEnergyStorage, and inet::power::IdealEpEnergyStorage.

{
    EpEnergySinkBase::updateTotalPowerGeneration();
    emit(powerGenerationChangedSignal, totalPowerGeneration.get());
}

Referenced by receiveSignal(), inet::power::IdealEpEnergyStorage::updateTotalPowerGeneration(), and inet::power::SimpleEpEnergyStorage::updateTotalPowerGeneration().

---

The documentation for this class was generated from the following files:

• EpEnergyStorageBase.h
• EpEnergyStorageBase.cc
