#include <EpEnergySourceBase.h>

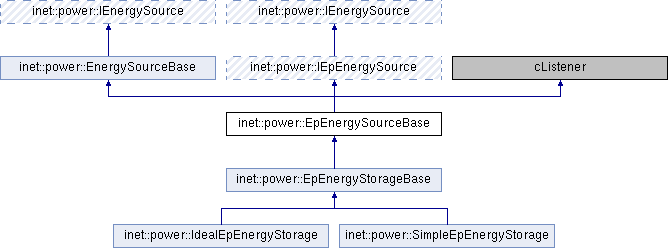

Inheritance diagram for inet::power::EpEnergySourceBase:

Public Member Functions
virtual W	getTotalPowerConsumption () const override
	Returns the total power consumption in the range [0, +infinity). More...

virtual void	addEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Adds a new energy consumer to the energy source. More...

virtual void	removeEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Removes a previously added energy consumer from this energy source. More...

Public Member Functions inherited from inet::power::EnergySourceBase
virtual int	getNumEnergyConsumers () const override
	Returns the number of energy consumers in the range [0, +infinity). More...

virtual const IEnergyConsumer *	getEnergyConsumer (int index) const override
	Returns the energy consumer for the provided index. More...

Public Member Functions inherited from inet::power::IEnergySource
virtual	~IEnergySource ()

Protected Member Functions
virtual W	computeTotalPowerConsumption () const

virtual void	updateTotalPowerConsumption ()

Protected Attributes
W	totalPowerConsumption = W(NaN)

Protected Attributes inherited from inet::power::EnergySourceBase
std::vector< const IEnergyConsumer * >	energyConsumers

Additional Inherited Members
Static Public Attributes inherited from inet::power::IEpEnergySource
static simsignal_t	powerConsumptionChangedSignal = cComponent::registerSignal("powerConsumptionChanged")
	The signal that is used to publish power consumption changes. More...

Member Function Documentation

◆ addEnergyConsumer()

void inet::power::EpEnergySourceBase::addEnergyConsumer ( const IEnergyConsumer * energyConsumer )

overridevirtual

Adds a new energy consumer to the energy source.

The energyConsumer parameter must not be nullptr.

Reimplemented from inet::power::EnergySourceBase.

Reimplemented in inet::power::EpEnergyStorageBase.

 {
     EnergySourceBase::addEnergyConsumer(energyConsumer);
     auto module = const_cast<cModule *>(check_and_cast<const cModule *>(energyConsumer));
     module->subscribe(IEpEnergyConsumer::powerConsumptionChangedSignal, this);
     updateTotalPowerConsumption();
 }

Referenced by inet::power::EpEnergyStorageBase::addEnergyConsumer().

◆ computeTotalPowerConsumption()

W inet::power::EpEnergySourceBase::computeTotalPowerConsumption ( ) const

protectedvirtual

 {
     W totalPowerConsumption = W(0);
     for (auto energyConsumer : energyConsumers)
         totalPowerConsumption += check_and_cast<const IEpEnergyConsumer *>(energyConsumer)->getPowerConsumption();
     return totalPowerConsumption;
 }

Referenced by inet::power::EpEnergyStorageBase::initialize(), and updateTotalPowerConsumption().

◆ getTotalPowerConsumption()

virtual W inet::power::EpEnergySourceBase::getTotalPowerConsumption ( ) const

inlineoverridevirtual

Returns the total power consumption in the range [0, +infinity).

Implements inet::power::IEpEnergySource.

29 { return totalPowerConsumption; }

◆ removeEnergyConsumer()

void inet::power::EpEnergySourceBase::removeEnergyConsumer ( const IEnergyConsumer * energyConsumer )

overridevirtual

Removes a previously added energy consumer from this energy source.

This functions throws an exception if the consumer is not found.

Reimplemented from inet::power::EnergySourceBase.

Reimplemented in inet::power::EpEnergyStorageBase.

 {
     EnergySourceBase::removeEnergyConsumer(energyConsumer);
     auto module = const_cast<cModule *>(check_and_cast<const cModule *>(energyConsumer));
     module->unsubscribe(IEpEnergyConsumer::powerConsumptionChangedSignal, this);
     updateTotalPowerConsumption();
 }

Referenced by inet::power::EpEnergyStorageBase::removeEnergyConsumer().

◆ updateTotalPowerConsumption()

void inet::power::EpEnergySourceBase::updateTotalPowerConsumption ( )

protectedvirtual

Reimplemented in inet::power::SimpleEpEnergyStorage, inet::power::IdealEpEnergyStorage, and inet::power::EpEnergyStorageBase.

 {
     totalPowerConsumption = computeTotalPowerConsumption();
 }

Referenced by addEnergyConsumer(), removeEnergyConsumer(), and inet::power::EpEnergyStorageBase::updateTotalPowerConsumption().

Member Data Documentation

◆ totalPowerConsumption

W inet::power::EpEnergySourceBase::totalPowerConsumption = W(NaN)

protected

Referenced by computeTotalPowerConsumption(), inet::power::EpEnergyStorageBase::initialize(), inet::power::SimpleEpEnergyStorage::scheduleTimer(), inet::power::IdealEpEnergyStorage::updateEnergyBalance(), inet::power::SimpleEpEnergyStorage::updateResidualCapacity(), inet::power::EpEnergyStorageBase::updateTotalPowerConsumption(), and updateTotalPowerConsumption().

The documentation for this class was generated from the following files:
