inet::power::EnergySinkBase Class Reference

#include <EnergySinkBase.h>

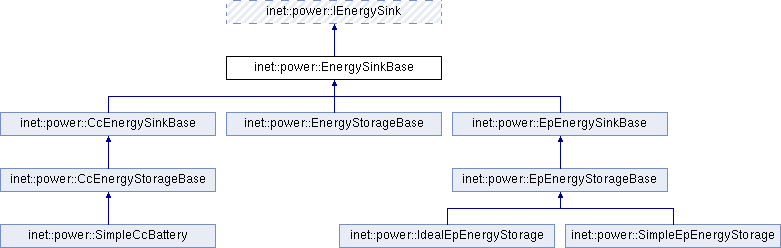

Inheritance diagram for inet::power::EnergySinkBase:

Public Member Functions
virtual int	getNumEnergyGenerators () const override
	Returns the number of energy generators in the range [0, +infinity). More...
virtual const IEnergyGenerator *	getEnergyGenerator (int index) const override
	Returns the energy generator for the provided index. More...
virtual void	addEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Adds a new energy generator to the energy sink. More...
virtual void	removeEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Removes a previously added energy generator from this energy sink. More...
Public Member Functions inherited from inet::power::IEnergySink
virtual	~IEnergySink ()

Protected Attributes
std::vector< const IEnergyGenerator * >	energyGenerators

Member Function Documentation

addEnergyGenerator()

void inet::power::EnergySinkBase::addEnergyGenerator ( const IEnergyGenerator *  energyGenerator )

overridevirtual

Adds a new energy generator to the energy sink.

The energyGenerator parameter must not be nullptr.

Implements inet::power::IEnergySink.

Reimplemented in inet::power::CcEnergySinkBase, inet::power::CcEnergyStorageBase, inet::power::EpEnergySinkBase, and inet::power::EpEnergyStorageBase.

{
    energyGenerators.push_back(energyGenerator);
}

Referenced by inet::power::CcEnergySinkBase::addEnergyGenerator(), and inet::power::EpEnergySinkBase::addEnergyGenerator().

getEnergyGenerator()

const IEnergyGenerator * inet::power::EnergySinkBase::getEnergyGenerator ( int  index ) const

overridevirtual

Returns the energy generator for the provided index.

This functions throws an exception if the index is out of range, and it never returns nullptr.

Implements inet::power::IEnergySink.

{
    return energyGenerators[index];
}

getNumEnergyGenerators()

virtual int inet::power::EnergySinkBase::getNumEnergyGenerators ( ) const

inlineoverridevirtual

Returns the number of energy generators in the range [0, +infinity).

Implements inet::power::IEnergySink.

{ return energyGenerators.size(); }

removeEnergyGenerator()

void inet::power::EnergySinkBase::removeEnergyGenerator ( const IEnergyGenerator *  energyGenerator )

overridevirtual

Removes a previously added energy generator from this energy sink.

This functions throws an exception if the generator is not found.

Implements inet::power::IEnergySink.

Reimplemented in inet::power::CcEnergySinkBase, inet::power::CcEnergyStorageBase, inet::power::EpEnergySinkBase, and inet::power::EpEnergyStorageBase.

{
    auto it = find(energyGenerators, energyGenerator);
    if (it == energyGenerators.end())
        throw cRuntimeError("Energy generator not found");
    else
        energyGenerators.erase(it);
}

Referenced by inet::power::CcEnergySinkBase::removeEnergyGenerator(), and inet::power::EpEnergySinkBase::removeEnergyGenerator().

Member Data Documentation

energyGenerators

std::vector<const IEnergyGenerator *> inet::power::EnergySinkBase::energyGenerators

protected

Referenced by addEnergyGenerator(), inet::power::CcEnergySinkBase::computeTotalCurrentGeneration(), inet::power::EpEnergySinkBase::computeTotalPowerGeneration(), getEnergyGenerator(), and removeEnergyGenerator().

---

The documentation for this class was generated from the following files:

• EnergySinkBase.h
• EnergySinkBase.cc
