inet::power::CcEnergyStorageBase Class Reference

#include <CcEnergyStorageBase.h>

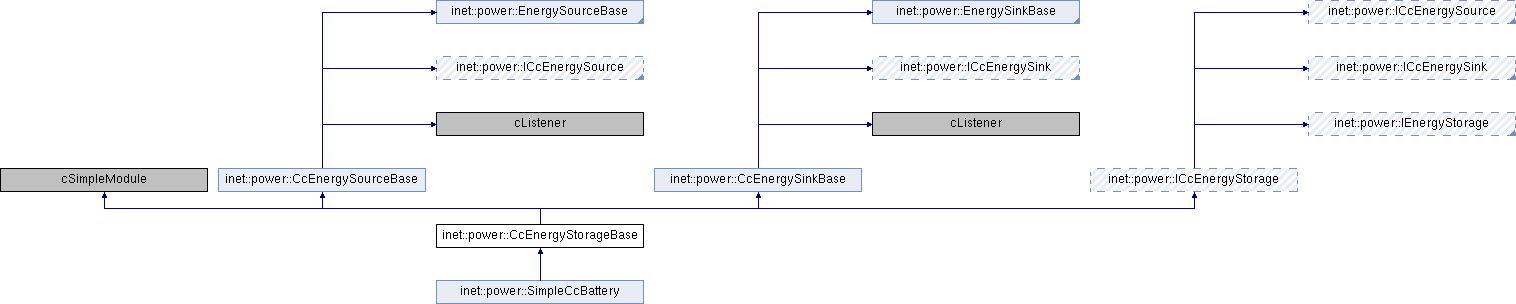

Inheritance diagram for inet::power::CcEnergyStorageBase:

Public Member Functions
virtual void	addEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Adds a new energy consumer to the energy source. More...
virtual void	removeEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Removes a previously added energy consumer from this energy source. More...
virtual void	addEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Adds a new energy generator to the energy sink. More...
virtual void	removeEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Removes a previously added energy generator from this energy sink. More...
virtual void	receiveSignal (cComponent *source, simsignal_t signal, double value, cObject *details) override
Public Member Functions inherited from inet::power::CcEnergySourceBase
virtual A	getTotalCurrentConsumption () const override
	Returns the total current consumption in the range [0, +infinity). More...
Public Member Functions inherited from inet::power::EnergySourceBase
virtual int	getNumEnergyConsumers () const override
	Returns the number of energy consumers in the range [0, +infinity). More...
virtual const IEnergyConsumer *	getEnergyConsumer (int index) const override
	Returns the energy consumer for the provided index. More...
Public Member Functions inherited from inet::power::IEnergySource
virtual	~IEnergySource ()
Public Member Functions inherited from inet::power::ICcEnergySource
virtual V	getNominalVoltage () const =0
	Returns the open circuit voltage in the range [0, +infinity). More...
virtual V	getOutputVoltage () const =0
	Returns the output voltage in the ragne [0, +infinity). More...
Public Member Functions inherited from inet::power::CcEnergySinkBase
virtual A	getTotalCurrentGeneration () const override
	Returns the total current generation in the range [0, +infinity). More...
Public Member Functions inherited from inet::power::EnergySinkBase
virtual int	getNumEnergyGenerators () const override
	Returns the number of energy generators in the range [0, +infinity). More...
virtual const IEnergyGenerator *	getEnergyGenerator (int index) const override
	Returns the energy generator for the provided index. More...
Public Member Functions inherited from inet::power::IEnergySink
virtual	~IEnergySink ()
Public Member Functions inherited from inet::power::ICcEnergyStorage
virtual C	getNominalChargeCapacity () const =0
	Returns the nominal charge capacity in the range [0, +infinity). More...
virtual C	getResidualChargeCapacity () const =0
	Returns the residual charge capacity in the range [0, nominalCapacity]. More...

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	updateTotalCurrentConsumption () override
virtual void	updateTotalCurrentGeneration () override
Protected Member Functions inherited from inet::power::CcEnergySourceBase
virtual A	computeTotalCurrentConsumption () const
Protected Member Functions inherited from inet::power::CcEnergySinkBase
virtual A	computeTotalCurrentGeneration () const

Additional Inherited Members
Static Public Attributes inherited from inet::power::ICcEnergySource
static simsignal_t	currentConsumptionChangedSignal = cComponent::registerSignal("currentConsumptionChanged")
	The signal that is used to publish current consumption changes. More...
Static Public Attributes inherited from inet::power::ICcEnergySink
static simsignal_t	currentGenerationChangedSignal = cComponent::registerSignal("currentGenerationChanged")
	The signal that is used to publish current generation changes. More...
Static Public Attributes inherited from inet::power::ICcEnergyStorage
static simsignal_t	residualChargeCapacityChangedSignal = cComponent::registerSignal("residualChargeCapacityChanged")
	The signal that is used to publish residual charge capacity changes also including when the energy storage becomes completely depleted or charged. More...
Protected Attributes inherited from inet::power::CcEnergySourceBase
A	totalCurrentConsumption = A(NaN)
Protected Attributes inherited from inet::power::EnergySourceBase
std::vector< const IEnergyConsumer * >	energyConsumers
Protected Attributes inherited from inet::power::CcEnergySinkBase
A	totalCurrentGeneration = A(NaN)
Protected Attributes inherited from inet::power::EnergySinkBase
std::vector< const IEnergyGenerator * >	energyGenerators

Member Function Documentation

addEnergyConsumer()

void inet::power::CcEnergyStorageBase::addEnergyConsumer ( const IEnergyConsumer *  energyConsumer )

overridevirtual

Adds a new energy consumer to the energy source.

The energyConsumer parameter must not be nullptr.

Reimplemented from inet::power::CcEnergySourceBase.

{
    Enter_Method("addEnergyConsumer");
    CcEnergySourceBase::addEnergyConsumer(energyConsumer);
}

addEnergyGenerator()

void inet::power::CcEnergyStorageBase::addEnergyGenerator ( const IEnergyGenerator *  energyGenerator )

overridevirtual

Adds a new energy generator to the energy sink.

The energyGenerator parameter must not be nullptr.

Reimplemented from inet::power::CcEnergySinkBase.

{
    Enter_Method("addEnergyGenerator");
    CcEnergySinkBase::addEnergyGenerator(energyGenerator);
}

initialize()

void inet::power::CcEnergyStorageBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented in inet::power::SimpleCcBattery.

{
    if (stage == INITSTAGE_LOCAL) {
        totalCurrentConsumption = computeTotalCurrentConsumption();
        totalCurrentGeneration = computeTotalCurrentGeneration();
        WATCH(totalCurrentConsumption);
        WATCH(totalCurrentGeneration);
    }
}

Referenced by inet::power::SimpleCcBattery::initialize().

receiveSignal()

void inet::power::CcEnergyStorageBase::receiveSignal ( cComponent *  source, simsignal_t  signal, double  value, cObject *  details  )

overridevirtual

{
    Enter_Method("%s", cComponent::getSignalName(signal));

    if (signal == ICcEnergyConsumer::currentConsumptionChangedSignal)
        updateTotalCurrentConsumption();
    else if (signal == ICcEnergyGenerator::currentGenerationChangedSignal)
        updateTotalCurrentGeneration();
}

removeEnergyConsumer()

void inet::power::CcEnergyStorageBase::removeEnergyConsumer ( const IEnergyConsumer *  energyConsumer )

overridevirtual

Removes a previously added energy consumer from this energy source.

This functions throws an exception if the consumer is not found.

Reimplemented from inet::power::CcEnergySourceBase.

{
    Enter_Method("removeEnergyConsumer");
    CcEnergySourceBase::removeEnergyConsumer(energyConsumer);
}

removeEnergyGenerator()

void inet::power::CcEnergyStorageBase::removeEnergyGenerator ( const IEnergyGenerator *  energyGenerator )

overridevirtual

Removes a previously added energy generator from this energy sink.

This functions throws an exception if the generator is not found.

Reimplemented from inet::power::CcEnergySinkBase.

{
    Enter_Method("removeEnergyGenerator");
    CcEnergySinkBase::removeEnergyGenerator(energyGenerator);
}

updateTotalCurrentConsumption()

void inet::power::CcEnergyStorageBase::updateTotalCurrentConsumption ( )

overrideprotectedvirtual

Reimplemented from inet::power::CcEnergySourceBase.

Reimplemented in inet::power::SimpleCcBattery.

{
    CcEnergySourceBase::updateTotalCurrentConsumption();
    emit(currentConsumptionChangedSignal, totalCurrentConsumption.get());
}

Referenced by receiveSignal(), and inet::power::SimpleCcBattery::updateTotalCurrentConsumption().

updateTotalCurrentGeneration()

void inet::power::CcEnergyStorageBase::updateTotalCurrentGeneration ( )

overrideprotectedvirtual

Reimplemented from inet::power::CcEnergySinkBase.

Reimplemented in inet::power::SimpleCcBattery.

{
    CcEnergySinkBase::updateTotalCurrentGeneration();
    emit(currentGenerationChangedSignal, totalCurrentGeneration.get());
}

Referenced by receiveSignal(), and inet::power::SimpleCcBattery::updateTotalCurrentGeneration().

---

The documentation for this class was generated from the following files:

• CcEnergyStorageBase.h
• CcEnergyStorageBase.cc
