inet::power::SimpleCcBattery Class Reference

#include <SimpleCcBattery.h>

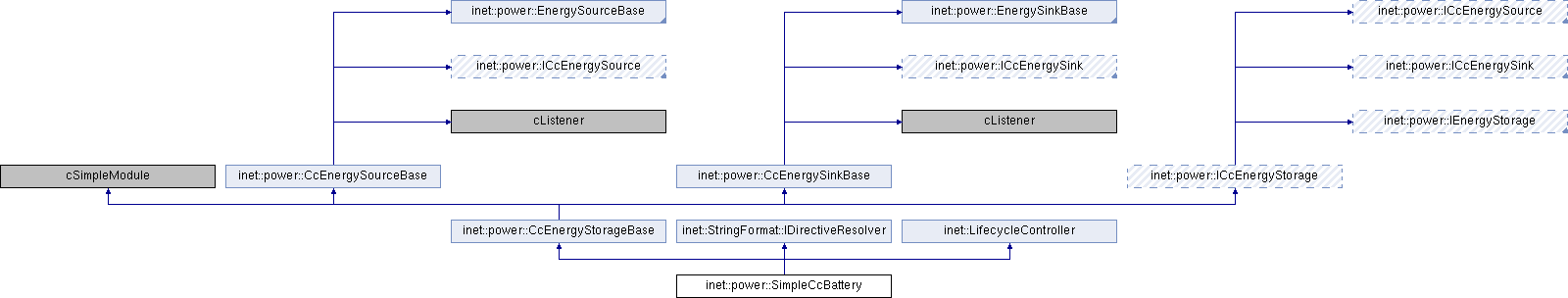

Inheritance diagram for inet::power::SimpleCcBattery:

Public Member Functions
virtual V	getNominalVoltage () const override
	Returns the open circuit voltage in the range [0, +infinity). More...
virtual V	getOutputVoltage () const override
	Returns the output voltage in the ragne [0, +infinity). More...
virtual A	getTotalCurrentConsumption () const override
	Returns the total current consumption in the range [0, +infinity). More...
virtual A	getTotalCurrentGeneration () const override
	Returns the total current generation in the range [0, +infinity). More...
virtual C	getNominalChargeCapacity () const override
	Returns the nominal charge capacity in the range [0, +infinity). More...
virtual C	getResidualChargeCapacity () const override
	Returns the residual charge capacity in the range [0, nominalCapacity]. More...
Public Member Functions inherited from inet::power::CcEnergyStorageBase
virtual void	addEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Adds a new energy consumer to the energy source. More...
virtual void	removeEnergyConsumer (const IEnergyConsumer *energyConsumer) override
	Removes a previously added energy consumer from this energy source. More...
virtual void	addEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Adds a new energy generator to the energy sink. More...
virtual void	removeEnergyGenerator (const IEnergyGenerator *energyGenerator) override
	Removes a previously added energy generator from this energy sink. More...
virtual void	receiveSignal (cComponent *source, simsignal_t signal, double value, cObject *details) override
Public Member Functions inherited from inet::power::EnergySourceBase
virtual int	getNumEnergyConsumers () const override
	Returns the number of energy consumers in the range [0, +infinity). More...
virtual const IEnergyConsumer *	getEnergyConsumer (int index) const override
	Returns the energy consumer for the provided index. More...
Public Member Functions inherited from inet::power::IEnergySource
virtual	~IEnergySource ()
Public Member Functions inherited from inet::power::EnergySinkBase
virtual int	getNumEnergyGenerators () const override
	Returns the number of energy generators in the range [0, +infinity). More...
virtual const IEnergyGenerator *	getEnergyGenerator (int index) const override
	Returns the energy generator for the provided index. More...
Public Member Functions inherited from inet::power::IEnergySink
virtual	~IEnergySink ()
Public Member Functions inherited from inet::LifecycleController
	LifecycleController ()
virtual	~LifecycleController ()
virtual bool	initiateOperation (LifecycleOperation *operation, IDoneCallback *completionCallback=nullptr)
	Initiate an operation. More...

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual void	updateDisplayString () const
virtual const char *	resolveDirective (char directive) const override
virtual void	updateTotalCurrentConsumption () override
virtual void	updateTotalCurrentGeneration () override
virtual void	setResidualCapacity (C newResidualCapacity)
virtual void	updateResidualCapacity ()
virtual void	executeNodeOperation (C newResidualCapacity)
Protected Member Functions inherited from inet::power::CcEnergySourceBase
virtual A	computeTotalCurrentConsumption () const
Protected Member Functions inherited from inet::power::CcEnergySinkBase
virtual A	computeTotalCurrentGeneration () const
Protected Member Functions inherited from inet::LifecycleController
virtual bool	resumeOperation (LifecycleOperation *operation)
virtual void	doOneStage (LifecycleOperation *operation, cModule *submodule)
virtual void	moduleOperationStageCompleted (Callback *callback)

Protected Attributes
C	nominalCapacity = C(NaN)
V	nominalVoltage = V(NaN)
Ohm	internalResistance = Ohm(NaN)
C	residualCapacity = C(NaN)
simtime_t	lastResidualCapacityUpdate = -1
cModule *	networkNode = nullptr
NodeStatus *	nodeStatus = nullptr
Protected Attributes inherited from inet::power::CcEnergySourceBase
A	totalCurrentConsumption = A(NaN)
Protected Attributes inherited from inet::power::EnergySourceBase
std::vector< const IEnergyConsumer * >	energyConsumers
Protected Attributes inherited from inet::power::CcEnergySinkBase
A	totalCurrentGeneration = A(NaN)
Protected Attributes inherited from inet::power::EnergySinkBase
std::vector< const IEnergyGenerator * >	energyGenerators
Protected Attributes inherited from inet::LifecycleController
Callback *	spareCallback = nullptr

Additional Inherited Members
Static Public Attributes inherited from inet::power::ICcEnergySource
static simsignal_t	currentConsumptionChangedSignal = cComponent::registerSignal("currentConsumptionChanged")
	The signal that is used to publish current consumption changes. More...
Static Public Attributes inherited from inet::power::ICcEnergySink
static simsignal_t	currentGenerationChangedSignal = cComponent::registerSignal("currentGenerationChanged")
	The signal that is used to publish current generation changes. More...
Static Public Attributes inherited from inet::power::ICcEnergyStorage
static simsignal_t	residualChargeCapacityChangedSignal = cComponent::registerSignal("residualChargeCapacityChanged")
	The signal that is used to publish residual charge capacity changes also including when the energy storage becomes completely depleted or charged. More...

Member Function Documentation

executeNodeOperation()

void inet::power::SimpleCcBattery::executeNodeOperation ( C  newResidualCapacity )

protectedvirtual

{
    if (nodeStatus->getState() == NodeStatus::UP && newResidualCapacity <= C(0)) {
        EV_WARN << "Battery failed" << endl;
        LifecycleOperation::StringMap params;
        ModuleCrashOperation *operation = new ModuleCrashOperation();
        operation->initialize(networkNode, params);
        initiateOperation(operation);
    }
}

Referenced by setResidualCapacity().

getNominalChargeCapacity()

virtual C inet::power::SimpleCcBattery::getNominalChargeCapacity ( ) const

inlineoverridevirtual

Returns the nominal charge capacity in the range [0, +infinity).

It specifies the maximum amount of charge that the energy storage can contain.

Implements inet::power::ICcEnergyStorage.

{ return nominalCapacity; }

Referenced by resolveDirective().

getNominalVoltage()

virtual V inet::power::SimpleCcBattery::getNominalVoltage ( ) const

inlineoverridevirtual

Returns the open circuit voltage in the range [0, +infinity).

Implements inet::power::ICcEnergySource.

{ return nominalVoltage; }

getOutputVoltage()

virtual V inet::power::SimpleCcBattery::getOutputVoltage ( ) const

inlineoverridevirtual

Returns the output voltage in the ragne [0, +infinity).

Implements inet::power::ICcEnergySource.

{ return nominalVoltage + (totalCurrentGeneration - totalCurrentConsumption) * internalResistance; }

getResidualChargeCapacity()

virtual C inet::power::SimpleCcBattery::getResidualChargeCapacity ( ) const

inlineoverridevirtual

Returns the residual charge capacity in the range [0, nominalCapacity].

It specifies the amount of charge that the energy storage contains at the moment.

Implements inet::power::ICcEnergyStorage.

{ return residualCapacity; }

Referenced by resolveDirective().

getTotalCurrentConsumption()

virtual A inet::power::SimpleCcBattery::getTotalCurrentConsumption ( ) const

inlineoverridevirtual

Returns the total current consumption in the range [0, +infinity).

Reimplemented from inet::power::CcEnergySourceBase.

{ return totalCurrentConsumption; }

getTotalCurrentGeneration()

virtual A inet::power::SimpleCcBattery::getTotalCurrentGeneration ( ) const

inlineoverridevirtual

Returns the total current generation in the range [0, +infinity).

Reimplemented from inet::power::CcEnergySinkBase.

{ return totalCurrentGeneration; }

initialize()

void inet::power::SimpleCcBattery::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::power::CcEnergyStorageBase.

{
    CcEnergyStorageBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        nominalCapacity = C(par("nominalCapacity"));
        nominalVoltage = V(par("nominalVoltage"));
        internalResistance = Ohm(par("internalResistance"));
        networkNode = findContainingNode(this);
        if (networkNode != nullptr) {
            nodeStatus = dynamic_cast<NodeStatus *>(networkNode->getSubmodule("status"));
            if (!nodeStatus)
                throw cRuntimeError("Cannot find node status");
        }
        setResidualCapacity(C(par("initialCapacity")));
        WATCH(residualCapacity);
    }
}

refreshDisplay()

void inet::power::SimpleCcBattery::refreshDisplay ( ) const

overrideprotectedvirtual

{
    updateDisplayString();
}

resolveDirective()

const char * inet::power::SimpleCcBattery::resolveDirective ( char  directive ) const

overrideprotectedvirtual

Implements inet::StringFormat::IDirectiveResolver.

{
    static std::string result;
    switch (directive) {
        case 'c':
            result = getResidualChargeCapacity().str();
            break;
        case 'p':
            result = std::to_string((int)std::round(100 * unit(getResidualChargeCapacity() / getNominalChargeCapacity()).get())) + "%";
            break;
        default:
            throw cRuntimeError("Unknown directive: %c", directive);
    }
    return result.c_str();
}

setResidualCapacity()

void inet::power::SimpleCcBattery::setResidualCapacity ( C  newResidualCapacity )

protectedvirtual

{
    residualCapacity = newResidualCapacity;
    lastResidualCapacityUpdate = simTime();
    if (residualCapacity == C(0))
        EV_WARN << "Battery depleted" << endl;
    else if (residualCapacity == nominalCapacity)
        EV_INFO << "Battery charged" << endl;
    if (networkNode != nullptr)
        executeNodeOperation(newResidualCapacity);
    emit(residualChargeCapacityChangedSignal, residualCapacity.get());
}

Referenced by initialize(), and updateResidualCapacity().

updateDisplayString()

void inet::power::SimpleCcBattery::updateDisplayString ( ) const

protectedvirtual

{
    if (getEnvir()->isGUI()) {
        auto text = StringFormat::formatString(par("displayStringTextFormat"), this);
        getDisplayString().setTagArg("t", 0, text);
    }
}

Referenced by refreshDisplay().

updateResidualCapacity()

void inet::power::SimpleCcBattery::updateResidualCapacity ( )

protectedvirtual

{
    simtime_t currentTime = simTime();
    if (currentTime != lastResidualCapacityUpdate) {
        C newResidualCapacity = residualCapacity + s((currentTime - lastResidualCapacityUpdate).dbl()) * (totalCurrentGeneration - totalCurrentConsumption);
        if (newResidualCapacity < C(0))
            newResidualCapacity = C(0);
        else if (newResidualCapacity > nominalCapacity)
            newResidualCapacity = nominalCapacity;
        setResidualCapacity(newResidualCapacity);
    }
}

Referenced by updateTotalCurrentConsumption(), and updateTotalCurrentGeneration().

updateTotalCurrentConsumption()

void inet::power::SimpleCcBattery::updateTotalCurrentConsumption ( )

overrideprotectedvirtual

Reimplemented from inet::power::CcEnergyStorageBase.

{
    updateResidualCapacity();
    CcEnergyStorageBase::updateTotalCurrentConsumption();
}

updateTotalCurrentGeneration()

void inet::power::SimpleCcBattery::updateTotalCurrentGeneration ( )

overrideprotectedvirtual

Reimplemented from inet::power::CcEnergyStorageBase.

{
    updateResidualCapacity();
    CcEnergyStorageBase::updateTotalCurrentGeneration();
}

Member Data Documentation

internalResistance

Ohm inet::power::SimpleCcBattery::internalResistance = Ohm(NaN)

protected

Referenced by initialize().

lastResidualCapacityUpdate

simtime_t inet::power::SimpleCcBattery::lastResidualCapacityUpdate = -1

protected

Referenced by setResidualCapacity(), and updateResidualCapacity().

networkNode

cModule* inet::power::SimpleCcBattery::networkNode = nullptr

protected

Referenced by executeNodeOperation(), initialize(), and setResidualCapacity().

nodeStatus

NodeStatus* inet::power::SimpleCcBattery::nodeStatus = nullptr

protected

Referenced by executeNodeOperation(), and initialize().

nominalCapacity

C inet::power::SimpleCcBattery::nominalCapacity = C(NaN)

protected

Referenced by initialize(), setResidualCapacity(), and updateResidualCapacity().

nominalVoltage

V inet::power::SimpleCcBattery::nominalVoltage = V(NaN)

protected

Referenced by initialize().

residualCapacity

C inet::power::SimpleCcBattery::residualCapacity = C(NaN)

protected

Referenced by initialize(), setResidualCapacity(), and updateResidualCapacity().

---

The documentation for this class was generated from the following files:

• SimpleCcBattery.h
• SimpleCcBattery.cc
