#include <StochasticLayeredErrorModel.h>

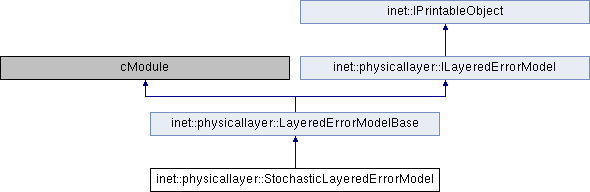

Inheritance diagram for inet::physicallayer::StochasticLayeredErrorModel:

Public Member Functions
	StochasticLayeredErrorModel ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IReceptionPacketModel *	computePacketModel (const LayeredTransmission transmission, const ISnir snir) const override
	Computes the packet domain representation at the receiver using a simplified model for the underlying domains. More...

virtual const IReceptionBitModel *	computeBitModel (const LayeredTransmission transmission, const ISnir snir) const override
	Computes the bit domain representation at the receiver using a simplified model for the underlying domains. More...

virtual const IReceptionSymbolModel *	computeSymbolModel (const LayeredTransmission transmission, const ISnir snir) const override
	Computes the symbol domain representation at the receiver using a simplified model for the underlying domains. More...

virtual const IReceptionSampleModel *	computeSampleModel (const LayeredTransmission transmission, const ISnir snir) const override
	Computes the sample domain representation at the receiver using a simplified model for the underlying domains. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::LayeredErrorModelBase
virtual const IReceptionPacketModel *	computePacketModel (const LayeredTransmission *transmission, double packetErrorRate) const

virtual const IReceptionBitModel *	computeBitModel (const LayeredTransmission *transmission, double bitErrorRate) const

virtual const IReceptionSymbolModel *	computeSymbolModel (const LayeredTransmission *transmission, double symbolErrorRate) const

Protected Attributes
double	packetErrorRate

double	bitErrorRate

double	symbolErrorRate

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ StochasticLayeredErrorModel()

inet::physicallayer::StochasticLayeredErrorModel::StochasticLayeredErrorModel ( )

                                                          :
     packetErrorRate(NaN),
     bitErrorRate(NaN),
     symbolErrorRate(NaN)
 {
 }

Member Function Documentation

◆ computeBitModel()

const IReceptionBitModel * inet::physicallayer::StochasticLayeredErrorModel::computeBitModel	(	const LayeredTransmission *	transmission,
		const ISnir *	snir
	)		const

overridevirtual

Computes the bit domain representation at the receiver using a simplified model for the underlying domains.

This result includes all potential errors that were not corrected by the underlying domains.

Implements inet::physicallayer::ILayeredErrorModel.

 {
     return LayeredErrorModelBase::computeBitModel(transmission, bitErrorRate);
 }

◆ computePacketModel()

const IReceptionPacketModel * inet::physicallayer::StochasticLayeredErrorModel::computePacketModel	(	const LayeredTransmission *	transmission,
		const ISnir *	snir
	)		const

overridevirtual

Computes the packet domain representation at the receiver using a simplified model for the underlying domains.

This result includes all potential errors that were not corrected by the underlying domains.

Implements inet::physicallayer::ILayeredErrorModel.

 {
     throw cRuntimeError("Not yet implemented");
 }

◆ computeSampleModel()

const IReceptionSampleModel * inet::physicallayer::StochasticLayeredErrorModel::computeSampleModel	(	const LayeredTransmission *	transmission,
		const ISnir *	snir
	)		const

overridevirtual

Computes the sample domain representation at the receiver using a simplified model for the underlying domains.

This result includes all potential errors that were not corrected by the underlying domains.

Implements inet::physicallayer::ILayeredErrorModel.

 {
     throw cRuntimeError("Not yet implemented");
 }

◆ computeSymbolModel()

const IReceptionSymbolModel * inet::physicallayer::StochasticLayeredErrorModel::computeSymbolModel	(	const LayeredTransmission *	transmission,
		const ISnir *	snir
	)		const

overridevirtual

Computes the symbol domain representation at the receiver using a simplified model for the underlying domains.

This result includes all potential errors that were not corrected by the underlying domains.

Implements inet::physicallayer::ILayeredErrorModel.

 {
     return LayeredErrorModelBase::computeSymbolModel(transmission, symbolErrorRate);
 }

◆ initialize()

void inet::physicallayer::StochasticLayeredErrorModel::initialize ( int stage )

overrideprotectedvirtual

 {
     if (stage == INITSTAGE_LOCAL) {
         packetErrorRate = par("packetErrorRate");
         bitErrorRate = par("bitErrorRate");
         symbolErrorRate = par("symbolErrorRate");
     }
 }

◆ printToStream()

std::ostream & inet::physicallayer::StochasticLayeredErrorModel::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

 {
     stream << "StochasticLayeredErrorModel";
     if (level <= PRINT_LEVEL_TRACE)
         stream << "packetErrorRate = " << packetErrorRate
                << "bitErrorRate = " << bitErrorRate
                << "symbolErrorRate = " << symbolErrorRate;
     return stream;
 }

Member Data Documentation

◆ bitErrorRate

double inet::physicallayer::StochasticLayeredErrorModel::bitErrorRate

protected

Referenced by computeBitModel(), initialize(), and printToStream().

◆ packetErrorRate

double inet::physicallayer::StochasticLayeredErrorModel::packetErrorRate

protected

Referenced by initialize(), and printToStream().

◆ symbolErrorRate

double inet::physicallayer::StochasticLayeredErrorModel::symbolErrorRate

protected

Referenced by computeSymbolModel(), initialize(), and printToStream().

The documentation for this class was generated from the following files:
