inet::physicallayer::SignalAnalogModel Class Reference

#include <SignalAnalogModel.h>

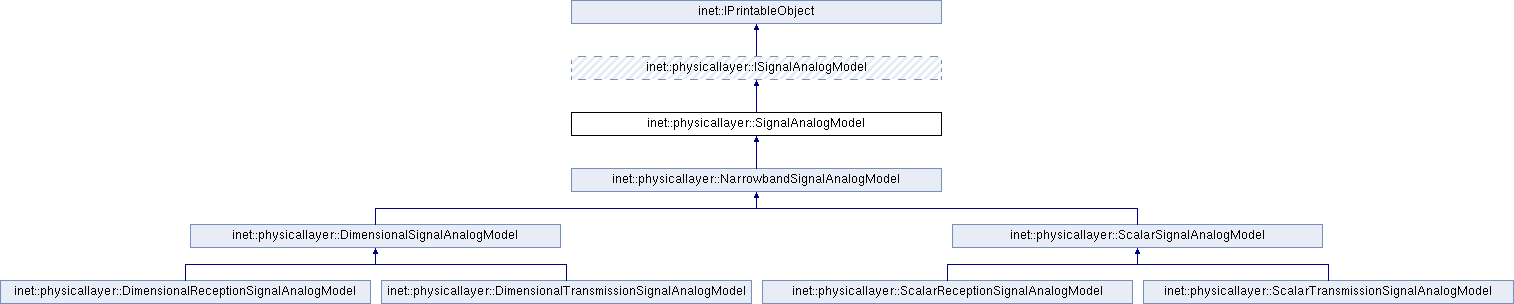

Inheritance diagram for inet::physicallayer::SignalAnalogModel:

Public Member Functions
	SignalAnalogModel (const simtime_t duration)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const simtime_t	getDuration () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const simtime_t	duration

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

SignalAnalogModel()

inet::physicallayer::SignalAnalogModel::SignalAnalogModel

(

const simtime_t

duration

)

                                                             :
    duration(duration)
{
}

Member Function Documentation

getDuration()

virtual const simtime_t inet::physicallayer::SignalAnalogModel::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ISignalAnalogModel.

{ return duration; }

Referenced by inet::physicallayer::LayeredDimensionalAnalogModel::computeReception(), and inet::physicallayer::LayeredScalarAnalogModel::computeReception().

printToStream()

std::ostream & inet::physicallayer::SignalAnalogModel::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::NarrowbandSignalAnalogModel, inet::physicallayer::DimensionalSignalAnalogModel, and inet::physicallayer::ScalarSignalAnalogModel.

{
    if (level <= PRINT_LEVEL_TRACE)
        stream << EV_FIELD(duration);
    return stream;
}

Member Data Documentation

duration

const simtime_t inet::physicallayer::SignalAnalogModel::duration

protected

Referenced by printToStream().

---

The documentation for this class was generated from the following files:

• SignalAnalogModel.h
• SignalAnalogModel.cc
