#include <DimensionalSignalAnalogModel.h>

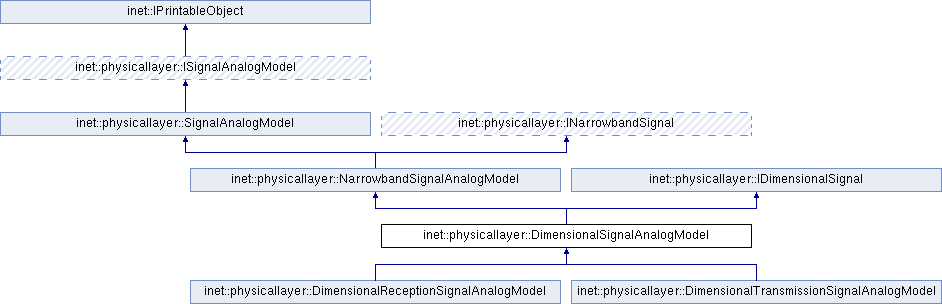

Inheritance diagram for inet::physicallayer::DimensionalSignalAnalogModel:

Public Member Functions
	DimensionalSignalAnalogModel (const simtime_t duration, Hz centerFrequency, Hz bandwidth, const Ptr< const IFunction< WpHz, Domain< simsec, Hz >>> &power)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const Ptr< const IFunction< WpHz, Domain< simsec, Hz > > > &	getPower () const override

virtual W	computeMinPower (simtime_t startTime, simtime_t endTime) const override

Public Member Functions inherited from inet::physicallayer::NarrowbandSignalAnalogModel
	NarrowbandSignalAnalogModel (const simtime_t duration, Hz centerFrequency, Hz bandwidth)

virtual Hz	getCenterFrequency () const override

virtual Hz	getBandwidth () const override

Public Member Functions inherited from inet::physicallayer::SignalAnalogModel
	SignalAnalogModel (const simtime_t duration)

virtual const simtime_t	getDuration () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const Ptr< const IFunction< WpHz, Domain< simsec, Hz > > >	power

Protected Attributes inherited from inet::physicallayer::NarrowbandSignalAnalogModel
const Hz	centerFrequency

const Hz	bandwidth

Protected Attributes inherited from inet::physicallayer::SignalAnalogModel
const simtime_t	duration

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ DimensionalSignalAnalogModel()

inet::physicallayer::DimensionalSignalAnalogModel::DimensionalSignalAnalogModel	(	const simtime_t	duration,
		Hz	centerFrequency,
		Hz	bandwidth,
		const Ptr< const IFunction< WpHz, Domain< simsec, Hz >>> &	power
	)

                                                                                                                                                                                   :
     NarrowbandSignalAnalogModel(duration, centerFrequency, bandwidth),
     power(power)
 {
 }

Member Function Documentation

◆ computeMinPower()

W inet::physicallayer::DimensionalSignalAnalogModel::computeMinPower	(	simtime_t	startTime,
		simtime_t	endTime
	)		const

overridevirtual

Implements inet::physicallayer::INarrowbandSignal.

 {
     Point<simsec> startPoint{ simsec(startTime) };
     Point<simsec> endPoint{ simsec(endTime) };
     W minPower = integrate<WpHz, Domain<simsec, Hz>, 0b10, W, Domain<simsec>>(power)->getMin(Interval<simsec>(startPoint, endPoint, 0b1, 0b1, 0b0));
     EV_DEBUG << "Computing minimum reception power" << EV_FIELD(startPoint) << EV_FIELD(endPoint) << EV_FIELD(minPower) << endl;
     return minPower;
 }

◆ getPower()

virtual const Ptr<const IFunction<WpHz, Domain<simsec, Hz> > >& inet::physicallayer::DimensionalSignalAnalogModel::getPower ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IDimensionalSignal.

30 { return power; }

◆ printToStream()

std::ostream & inet::physicallayer::DimensionalSignalAnalogModel::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::NarrowbandSignalAnalogModel.

 {
     stream << "DimensionalSignalAnalogModel";
     if (level <= PRINT_LEVEL_DEBUG)
         stream << EV_FIELD(powerMax, power->getMax())
                << EV_FIELD(powerMin, power->getMin());
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(power);
     return NarrowbandSignalAnalogModel::printToStream(stream, level);
 }

Member Data Documentation

◆ power

const Ptr<const IFunction<WpHz, Domain<simsec, Hz> > > inet::physicallayer::DimensionalSignalAnalogModel::power

protected

Referenced by computeMinPower(), and printToStream().

The documentation for this class was generated from the following files:
