#include <ScalarSignalAnalogModel.h>

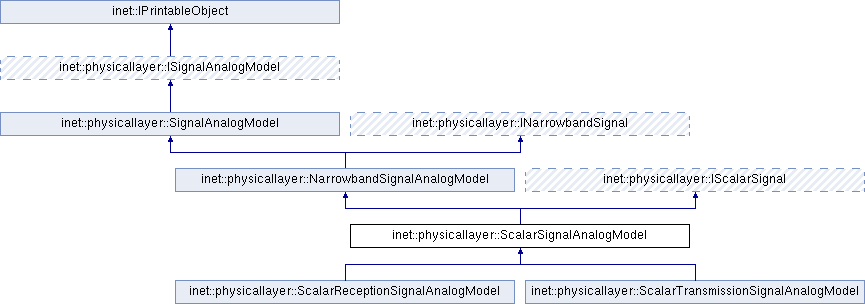

Inheritance diagram for inet::physicallayer::ScalarSignalAnalogModel:

Public Member Functions
	ScalarSignalAnalogModel (const simtime_t duration, Hz centerFrequency, Hz bandwidth, W power)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual W	getPower () const override

virtual W	computeMinPower (simtime_t startTime, simtime_t endTime) const override

Public Member Functions inherited from inet::physicallayer::NarrowbandSignalAnalogModel
	NarrowbandSignalAnalogModel (const simtime_t duration, Hz centerFrequency, Hz bandwidth)

virtual Hz	getCenterFrequency () const override

virtual Hz	getBandwidth () const override

Public Member Functions inherited from inet::physicallayer::SignalAnalogModel
	SignalAnalogModel (const simtime_t duration)

virtual const simtime_t	getDuration () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const W	power

Protected Attributes inherited from inet::physicallayer::NarrowbandSignalAnalogModel
const Hz	centerFrequency

const Hz	bandwidth

Protected Attributes inherited from inet::physicallayer::SignalAnalogModel
const simtime_t	duration

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ ScalarSignalAnalogModel()

inet::physicallayer::ScalarSignalAnalogModel::ScalarSignalAnalogModel	(	const simtime_t	duration,
		Hz	centerFrequency,
		Hz	bandwidth,
		W	power
	)

                                                                                                                     :
     NarrowbandSignalAnalogModel(duration, centerFrequency, bandwidth),
     power(power)
 {
 }

Member Function Documentation

◆ computeMinPower()

virtual W inet::physicallayer::ScalarSignalAnalogModel::computeMinPower	(	simtime_t	startTime,
		simtime_t	endTime
	)		const

inlineoverridevirtual

Implements inet::physicallayer::INarrowbandSignal.

28 { return power; }

◆ getPower()

virtual W inet::physicallayer::ScalarSignalAnalogModel::getPower ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IScalarSignal.

27 { return power; }

◆ printToStream()

std::ostream & inet::physicallayer::ScalarSignalAnalogModel::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::NarrowbandSignalAnalogModel.

 {
     stream << "ScalarSignalAnalogModel";
     if (level <= PRINT_LEVEL_DETAIL)
         stream << EV_FIELD(power);
     return NarrowbandSignalAnalogModel::printToStream(stream, level);
 }

Member Data Documentation

◆ power

const W inet::physicallayer::ScalarSignalAnalogModel::power

protected

Referenced by printToStream().

The documentation for this class was generated from the following files:
