#include <PathLossBase.h>

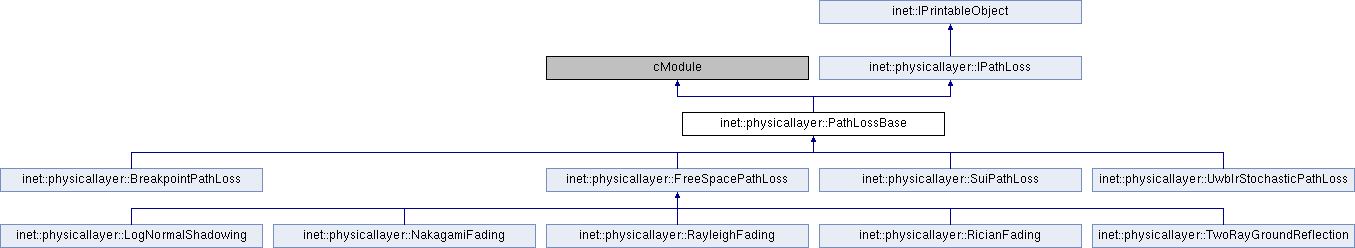

Inheritance diagram for inet::physicallayer::PathLossBase:

Public Member Functions
virtual double	computePathLoss (mps propagationSpeed, Hz frequency, m distance) const override=0
	Returns the loss factor as a function of propagation speed, carrier frequency and distance. More...

virtual double	computePathLoss (const ITransmission transmission, const IArrival arrival) const override
	Returns the loss factor for the provided transmission and arrival. More...

Public Member Functions inherited from inet::physicallayer::IPathLoss
virtual m	computeRange (mps propagationSpeed, Hz frequency, double loss) const =0
	Returns the range for the given loss factor. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

◆ computePathLoss() [1/2]

double inet::physicallayer::PathLossBase::computePathLoss	(	const ITransmission *	transmission,
		const IArrival *	arrival
	)		const

overridevirtual

Returns the loss factor for the provided transmission and arrival.

The value is in the range [0, 1] where 1 means no loss at all and 0 means all power is lost.

Implements inet::physicallayer::IPathLoss.

Reimplemented in inet::physicallayer::TwoRayGroundReflection.

 {
     auto radioMedium = transmission->getMedium();
     auto narrowbandSignalAnalogModel = check_and_cast<const INarrowbandSignal *>(transmission->getAnalogModel());
     mps propagationSpeed = radioMedium->getPropagation()->getPropagationSpeed();
     Hz centerFrequency = Hz(narrowbandSignalAnalogModel->getCenterFrequency());
     m distance = m(arrival->getStartPosition().distance(transmission->getStartPosition()));
     return computePathLoss(propagationSpeed, centerFrequency, distance);
 }

◆ computePathLoss() [2/2]

virtual double inet::physicallayer::PathLossBase::computePathLoss	(	mps	propagationSpeed,
		Hz	frequency,
		m	distance
	)		const

overridepure virtual

Returns the loss factor as a function of propagation speed, carrier frequency and distance.

The value is in the range [0, 1] where 1 means no loss at all and 0 means all power is lost.

Implements inet::physicallayer::IPathLoss.

Implemented in inet::physicallayer::UwbIrStochasticPathLoss, inet::physicallayer::SuiPathLoss, inet::physicallayer::FreeSpacePathLoss, inet::physicallayer::RicianFading, inet::physicallayer::NakagamiFading, inet::physicallayer::RayleighFading, inet::physicallayer::LogNormalShadowing, and inet::physicallayer::BreakpointPathLoss.

Referenced by computePathLoss().

The documentation for this class was generated from the following files:
