inet::physicallayer::FreeSpacePathLoss Class Reference

This class implements the deterministic free space path loss model. More...

#include <FreeSpacePathLoss.h>

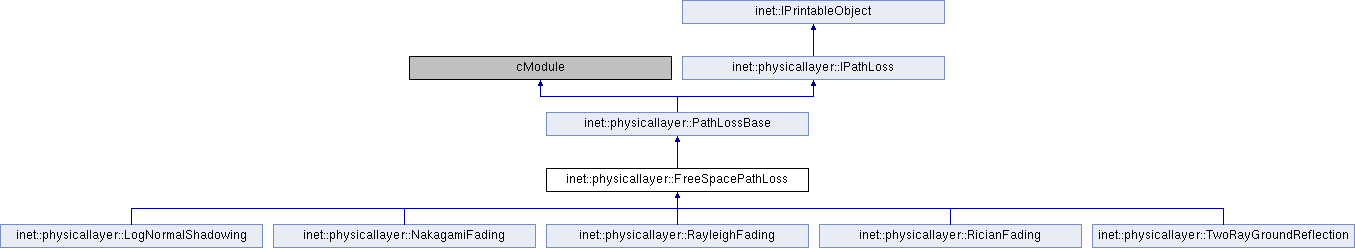

Inheritance diagram for inet::physicallayer::FreeSpacePathLoss:

Public Member Functions
	FreeSpacePathLoss ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual double	computePathLoss (mps propagationSpeed, Hz frequency, m distance) const override
	Returns the loss factor as a function of propagation speed, carrier frequency and distance. More...
virtual m	computeRange (mps propagationSpeed, Hz frequency, double loss) const override
	Returns the range for the given loss factor. More...
Public Member Functions inherited from inet::physicallayer::PathLossBase
virtual double	computePathLoss (const ITransmission *transmission, const IArrival *arrival) const override
	Returns the loss factor for the provided transmission and arrival. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override
virtual double	computeFreeSpacePathLoss (m waveLength, m distance, double alpha, double systemLoss) const

Protected Attributes
double	alpha
double	systemLoss

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

This class implements the deterministic free space path loss model.

Author

Oliver Graute

Constructor & Destructor Documentation

FreeSpacePathLoss()

inet::physicallayer::FreeSpacePathLoss::FreeSpacePathLoss

(

)

Member Function Documentation

computeFreeSpacePathLoss()

double inet::physicallayer::FreeSpacePathLoss::computeFreeSpacePathLoss ( m  waveLength, m  distance, double  alpha, double  systemLoss  ) const

protectedvirtual

Referenced by printToStream().

computePathLoss()

double inet::physicallayer::FreeSpacePathLoss::computePathLoss ( mps  propagationSpeed, Hz  frequency, m  distance  ) const

overridevirtual

Returns the loss factor as a function of propagation speed, carrier frequency and distance.

The value is in the range [0, 1] where 1 means no loss at all and 0 means all power is lost.

Implements inet::physicallayer::PathLossBase.

Reimplemented in inet::physicallayer::RicianFading, inet::physicallayer::NakagamiFading, inet::physicallayer::RayleighFading, and inet::physicallayer::LogNormalShadowing.

computeRange()

m inet::physicallayer::FreeSpacePathLoss::computeRange ( mps  propagationSpeed, Hz  frequency, double  loss  ) const

overridevirtual

Returns the range for the given loss factor.

The value is in the range [0, +infinity) or NaN if unspecified.

Implements inet::physicallayer::IPathLoss.

initialize()

void inet::physicallayer::FreeSpacePathLoss::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented in inet::physicallayer::RicianFading, inet::physicallayer::TwoRayGroundReflection, inet::physicallayer::NakagamiFading, and inet::physicallayer::LogNormalShadowing.

{
    // factor = waveLength ^ 2 / (16 * PI ^ 2 * systemLoss * distance ^ alpha)
    return distance.get() == 0.0 ? 1.0 : (waveLength * waveLength).get() / (16 * M_PI * M_PI * systemLoss * pow(distance.get(), alpha));
}


printToStream()

std::ostream & inet::physicallayer::FreeSpacePathLoss::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::RicianFading, inet::physicallayer::NakagamiFading, inet::physicallayer::TwoRayGroundReflection, inet::physicallayer::RayleighFading, and inet::physicallayer::LogNormalShadowing.

{
    m waveLength = propagationSpeed / frequency;
    return computeFreeSpacePathLoss(waveLength, distance, alpha, systemLoss);
}

m FreeSpacePathLoss::computeRange(mps propagationSpeed, Hz frequency, double loss) const
{
    // distance = (waveLength ^ 2 / (16 * PI ^ 2 * systemLoss * loss)) ^ (1 / alpha)

Member Data Documentation

alpha

double inet::physicallayer::FreeSpacePathLoss::alpha

protected

Referenced by initialize(), and printToStream().

systemLoss

double inet::physicallayer::FreeSpacePathLoss::systemLoss

protected

Referenced by initialize(), and printToStream().

---

The documentation for this class was generated from the following files:

• FreeSpacePathLoss.h
• FreeSpacePathLoss.cc
