This class implements the stochastic Rician fading model. More...

#include <RicianFading.h>

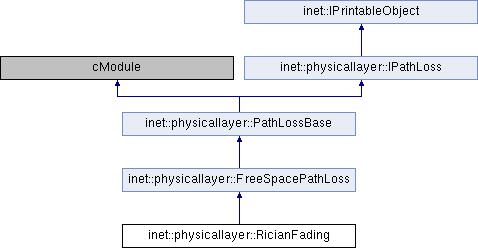

Inheritance diagram for inet::physicallayer::RicianFading:

Public Member Functions
	RicianFading ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual double	computePathLoss (mps propagationSpeed, Hz frequency, m distance) const override
	Returns the loss factor as a function of propagation speed, carrier frequency and distance. More...

Public Member Functions inherited from inet::physicallayer::FreeSpacePathLoss
	FreeSpacePathLoss ()

virtual m	computeRange (mps propagationSpeed, Hz frequency, double loss) const override
	Returns the range for the given loss factor. More...

Public Member Functions inherited from inet::physicallayer::PathLossBase
virtual double	computePathLoss (const ITransmission transmission, const IArrival arrival) const override
	Returns the loss factor for the provided transmission and arrival. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::FreeSpacePathLoss
virtual double	computeFreeSpacePathLoss (m waveLength, m distance, double alpha, double systemLoss) const

Protected Attributes
double	k

Protected Attributes inherited from inet::physicallayer::FreeSpacePathLoss
double	alpha

double	systemLoss

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

This class implements the stochastic Rician fading model.

Constructor & Destructor Documentation

inet::physicallayer::RicianFading::RicianFading ( )

double inet::physicallayer::RicianFading::computePathLoss	(	mps	propagationSpeed,
		Hz	frequency,
		m	distance
	)		const

overridevirtual

Returns the loss factor as a function of propagation speed, carrier frequency and distance.

The value is in the range [0, 1] where 1 means no loss at all and 0 means all power is lost.

void inet::physicallayer::RicianFading::initialize ( int stage )

overrideprotectedvirtual

 {
     m waveLength = propagationSpeed / frequency;
     double c = 1.0 / (2.0 * (k + 1));
     double x = normal(0, 1);

std::ostream & inet::physicallayer::RicianFading::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

double inet::physicallayer::RicianFading::k

protected

The documentation for this class was generated from the following files:
