inet::physicallayer::BreakpointPathLoss Class Reference

Implementation of a breakpoint path loss model. More...

#include <BreakpointPathLoss.h>

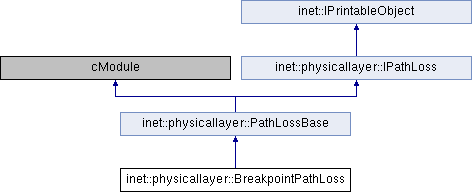

Inheritance diagram for inet::physicallayer::BreakpointPathLoss:

Public Member Functions
	BreakpointPathLoss ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual double	computePathLoss (mps propagationSpeed, Hz frequency, m distance) const override
	Returns the loss factor as a function of propagation speed, carrier frequency and distance. More...
virtual m	computeRange (mps propagationSpeed, Hz frequency, double loss) const override
	Returns the range for the given loss factor. More...
Public Member Functions inherited from inet::physicallayer::PathLossBase
virtual double	computePathLoss (const ITransmission *transmission, const IArrival *arrival) const override
	Returns the loss factor for the provided transmission and arrival. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

Protected Attributes
double	l01
	initial path loss More...
double	l02
double	alpha1
	pathloss exponents More...
double	alpha2
m	breakpointDistance
	Breakpoint distance squared. More...

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Implementation of a breakpoint path loss model.

Constructor & Destructor Documentation

BreakpointPathLoss()

inet::physicallayer::BreakpointPathLoss::BreakpointPathLoss

(

)

                                       :
    l01(NaN),
    l02(NaN),
    alpha1(NaN),
    alpha2(NaN),
    breakpointDistance(m(NaN))
{
}

Member Function Documentation

computePathLoss()

double inet::physicallayer::BreakpointPathLoss::computePathLoss ( mps  propagationSpeed, Hz  frequency, m  distance  ) const

overridevirtual

Returns the loss factor as a function of propagation speed, carrier frequency and distance.

The value is in the range [0, 1] where 1 means no loss at all and 0 means all power is lost.

Implements inet::physicallayer::PathLossBase.

{
    // PL(d) = PL0 + 10 alpha log10 (d/d0)
    // 10 ^ { PL(d)/10 } = 10 ^{PL0 + 10 alpha log10 (d/d0)}/10
    // 10 ^ { PL(d)/10 } = 10 ^ PL0/10 * 10 ^ { 10 log10 (d/d0)^alpha }/10
    // 10 ^ { PL(d)/10 } = 10 ^ PL0/10 * 10 ^ { log10 (d/d0)^alpha }
    // 10 ^ { PL(d)/10 } = 10 ^ PL0/10 * (d/d0)^alpha
    if (distance < breakpointDistance)
        return 1 / (l01 * pow(distance.get(), alpha1));
    else
        return 1 / (l02 * pow(unit(distance / breakpointDistance).get(), alpha2));
}

computeRange()

m inet::physicallayer::BreakpointPathLoss::computeRange ( mps  propagationSpeed, Hz  frequency, double  loss  ) const

overridevirtual

Returns the range for the given loss factor.

The value is in the range [0, +infinity) or NaN if unspecified.

Implements inet::physicallayer::IPathLoss.

{
    // this assumes the path loss is a continuous function
    // the result should be the same for the second case including l02 and alpha2
    double breakpointPathLoss = 1 / (l01 * pow(breakpointDistance.get(), alpha1));

    if (loss < breakpointPathLoss) {
        // the allowed loss factor is smaller than the one faced at the breakpoint distance
        // -> range is higher than breakpointDistance
        // loss = 1 / (l02 * (d / d0)^alpha2)
        // (d / d0)^alpha2 = 1 / (loss * l02)
        // (d / d0) = 1 / ((loss * l02)^(1/alpha2))
        // d = d0 / ((loss * l02)^(1/alpha2))
        return breakpointDistance / (pow(loss * l02, 1 / alpha2));
    }
    else {
        return m(1) / (pow(loss * l01, 1 / alpha1));
    }
}

initialize()

void inet::physicallayer::BreakpointPathLoss::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        l01 = math::dB2fraction(par("l01"));
        l02 = math::dB2fraction(par("l02"));
        alpha1 = par("alpha1");
        alpha2 = par("alpha2");
        breakpointDistance = m(par("breakpointDistance"));
    }
}

printToStream()

std::ostream & inet::physicallayer::BreakpointPathLoss::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "BreakpointPathLoss";
    if (level <= PRINT_LEVEL_TRACE)
        stream << ", L01 = " << l01
               << ", L02 = " << l02
               << ", alpha1 = " << alpha1
               << ", alpha2 = " << alpha2
               << EV_FIELD(breakpointDistance);
    return stream;
}

Member Data Documentation

alpha1

double inet::physicallayer::BreakpointPathLoss::alpha1

protected

pathloss exponents

Referenced by computePathLoss(), computeRange(), initialize(), and printToStream().

alpha2

double inet::physicallayer::BreakpointPathLoss::alpha2

protected

Referenced by computePathLoss(), computeRange(), initialize(), and printToStream().

breakpointDistance

m inet::physicallayer::BreakpointPathLoss::breakpointDistance

protected

Breakpoint distance squared.

Referenced by computePathLoss(), computeRange(), initialize(), and printToStream().

l01

double inet::physicallayer::BreakpointPathLoss::l01

protected

initial path loss

Referenced by computePathLoss(), computeRange(), initialize(), and printToStream().

l02

double inet::physicallayer::BreakpointPathLoss::l02

protected

Referenced by computePathLoss(), computeRange(), initialize(), and printToStream().

---

The documentation for this class was generated from the following files:

• BreakpointPathLoss.h
• BreakpointPathLoss.cc
