#include <NarrowbandNoiseBase.h>

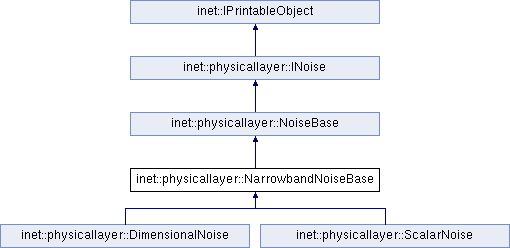

Inheritance diagram for inet::physicallayer::NarrowbandNoiseBase:

Public Member Functions
	NarrowbandNoiseBase (simtime_t startTime, simtime_t endTime, Hz centerFrequency, Hz bandwidth)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual Hz	getCenterFrequency () const

virtual Hz	getBandwidth () const

virtual W	computeMinPower (simtime_t startTime, simtime_t endTime) const =0

virtual W	computeMaxPower (simtime_t startTime, simtime_t endTime) const =0

Public Member Functions inherited from inet::physicallayer::NoiseBase
	NoiseBase (simtime_t startTime, simtime_t endTime)

virtual const simtime_t	getStartTime () const override

virtual const simtime_t	getEndTime () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const Hz	centerFrequency

const Hz	bandwidth

Protected Attributes inherited from inet::physicallayer::NoiseBase
const simtime_t	startTime

const simtime_t	endTime

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ NarrowbandNoiseBase()

inet::physicallayer::NarrowbandNoiseBase::NarrowbandNoiseBase	(	simtime_t	startTime,
		simtime_t	endTime,
		Hz	centerFrequency,
		Hz	bandwidth
	)

                                                                                                                  :
     NoiseBase(startTime, endTime),
     centerFrequency(centerFrequency),
     bandwidth(bandwidth)
 {
 }

Member Function Documentation

◆ computeMaxPower()

virtual W inet::physicallayer::NarrowbandNoiseBase::computeMaxPower	(	simtime_t	startTime,
		simtime_t	endTime
	)		const

pure virtual

Implemented in inet::physicallayer::DimensionalNoise, and inet::physicallayer::ScalarNoise.

Referenced by inet::physicallayer::FlatReceiverBase::computeListeningDecision(), inet::physicallayer::ApskLayeredReceiver::computeListeningDecision(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeListeningDecision().

◆ computeMinPower()

virtual W inet::physicallayer::NarrowbandNoiseBase::computeMinPower	(	simtime_t	startTime,
		simtime_t	endTime
	)		const

pure virtual

Implemented in inet::physicallayer::DimensionalNoise, and inet::physicallayer::ScalarNoise.

◆ getBandwidth()

virtual Hz inet::physicallayer::NarrowbandNoiseBase::getBandwidth ( ) const

inlinevirtual

32 { return bandwidth; }

Referenced by inet::physicallayer::ScalarAnalogModelBase::computeNoise().

◆ getCenterFrequency()

virtual Hz inet::physicallayer::NarrowbandNoiseBase::getCenterFrequency ( ) const

inlinevirtual

31 { return centerFrequency; }

Referenced by inet::physicallayer::ScalarAnalogModelBase::computeNoise().

◆ printToStream()

std::ostream & inet::physicallayer::NarrowbandNoiseBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::NoiseBase.

Reimplemented in inet::physicallayer::DimensionalNoise, and inet::physicallayer::ScalarNoise.

 {
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(centerFrequency)
                << EV_FIELD(bandwidth);
     return NoiseBase::printToStream(stream, level);
 }

Referenced by inet::physicallayer::ScalarNoise::printToStream(), and inet::physicallayer::DimensionalNoise::printToStream().

Member Data Documentation

◆ bandwidth

const Hz inet::physicallayer::NarrowbandNoiseBase::bandwidth

protected

Referenced by printToStream().

◆ centerFrequency

const Hz inet::physicallayer::NarrowbandNoiseBase::centerFrequency
