#include <NoiseBase.h>

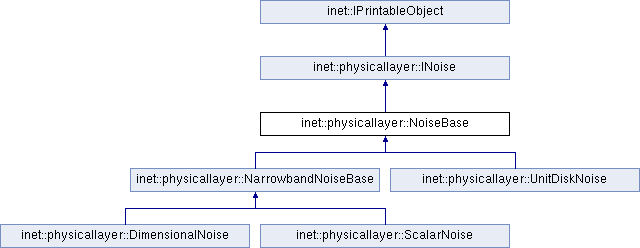

Inheritance diagram for inet::physicallayer::NoiseBase:

Public Member Functions
	NoiseBase (simtime_t startTime, simtime_t endTime)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const simtime_t	getStartTime () const override

virtual const simtime_t	getEndTime () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const simtime_t	startTime

const simtime_t	endTime

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ NoiseBase()

inet::physicallayer::NoiseBase::NoiseBase	(	simtime_t	startTime,
		simtime_t	endTime
	)

                                                            :
     startTime(startTime),
     endTime(endTime)
 {
 }

Member Function Documentation

◆ getEndTime()

virtual const simtime_t inet::physicallayer::NoiseBase::getEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::INoise.

28 { return endTime; }

Referenced by inet::physicallayer::ScalarAnalogModelBase::addNoise().

◆ getStartTime()

virtual const simtime_t inet::physicallayer::NoiseBase::getStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::INoise.

27 { return startTime; }

Referenced by inet::physicallayer::ScalarAnalogModelBase::addNoise().

◆ printToStream()

std::ostream & inet::physicallayer::NoiseBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::NarrowbandNoiseBase, inet::physicallayer::DimensionalNoise, inet::physicallayer::ScalarNoise, and inet::physicallayer::UnitDiskNoise.

 {
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(startTime)
                << EV_FIELD(endTime);
     return stream;
 }

Referenced by inet::physicallayer::UnitDiskNoise::printToStream(), and inet::physicallayer::NarrowbandNoiseBase::printToStream().

Member Data Documentation

◆ endTime

const simtime_t inet::physicallayer::NoiseBase::endTime

protected

Referenced by inet::physicallayer::ScalarNoise::computeMaxPower(), inet::physicallayer::DimensionalNoise::computeMaxPower(), inet::physicallayer::ScalarNoise::computeMinPower(), inet::physicallayer::DimensionalNoise::computeMinPower(), and printToStream().

◆ startTime

const simtime_t inet::physicallayer::NoiseBase::startTime
