inet::physicallayer::Ieee80211IrMode Class Reference

Represents an Infrared PHY mode as described in IEEE 802.11-2012 specification clause 15. More...

#include <Ieee80211IrMode.h>

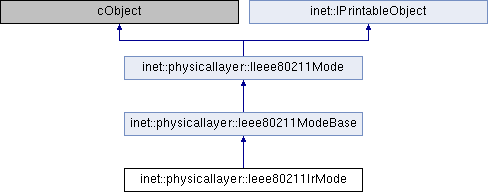

Inheritance diagram for inet::physicallayer::Ieee80211IrMode:

Public Member Functions
	Ieee80211IrMode (const char *name, const Ieee80211IrPreambleMode *preambleMode, const Ieee80211IrHeaderMode *headerMode, const Ieee80211IrDataMode *dataMode)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const IIeee80211PreambleMode *	getPreambleMode () const override
virtual const IIeee80211HeaderMode *	getHeaderMode () const override
virtual const IIeee80211DataMode *	getDataMode () const override
virtual const simtime_t	getDuration (b dataLength) const override
virtual const simtime_t	getSlotTime () const override
virtual const simtime_t	getSifsTime () const override
virtual const simtime_t	getCcaTime () const override
virtual const simtime_t	getRifsTime () const override
virtual const simtime_t	getPhyRxStartDelay () const override
virtual const simtime_t	getRxTxTurnaroundTime () const override
virtual const simtime_t	getPreambleLength () const override
virtual const simtime_t	getPlcpHeaderLength () const override
virtual int	getMpduMaxLength () const override
Public Member Functions inherited from inet::physicallayer::Ieee80211ModeBase
	Ieee80211ModeBase (const char *name)
virtual const char *	getName () const override
Public Member Functions inherited from inet::physicallayer::IIeee80211Mode
IIeee80211PreambleMode *	_getPreambleMode () const
IIeee80211HeaderMode *	_getHeaderMode () const
IIeee80211DataMode *	_getDataMode () const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	getLegacyCwMin () const override
virtual int	getLegacyCwMax () const override

Protected Attributes
const Ieee80211IrPreambleMode *	preambleMode
const Ieee80211IrHeaderMode *	headerMode
const Ieee80211IrDataMode *	dataMode

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Represents an Infrared PHY mode as described in IEEE 802.11-2012 specification clause 15.

Constructor & Destructor Documentation

Ieee80211IrMode()

inet::physicallayer::Ieee80211IrMode::Ieee80211IrMode	(	const char *	name,
		const Ieee80211IrPreambleMode *	preambleMode,
		const Ieee80211IrHeaderMode *	headerMode,
		const Ieee80211IrDataMode *	dataMode
	)

                                                                                                                                                                            :
    Ieee80211ModeBase(name),
    preambleMode(preambleMode),
    headerMode(headerMode),
    dataMode(dataMode)
{
}

Member Function Documentation

getCcaTime()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getCcaTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 5E-6; }

getDataMode()

virtual const IIeee80211DataMode* inet::physicallayer::Ieee80211IrMode::getDataMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return dataMode; }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getDuration ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getDuration() + headerMode->getDuration() + dataMode->getDuration(dataLength); }

getHeaderMode()

virtual const IIeee80211HeaderMode* inet::physicallayer::Ieee80211IrMode::getHeaderMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return headerMode; }

getLegacyCwMax()

virtual int inet::physicallayer::Ieee80211IrMode::getLegacyCwMax ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 1023; }

getLegacyCwMin()

virtual int inet::physicallayer::Ieee80211IrMode::getLegacyCwMin ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 63; }

getMpduMaxLength()

virtual int inet::physicallayer::Ieee80211IrMode::getMpduMaxLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 2500; }

getPhyRxStartDelay()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getPhyRxStartDelay ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 57E-6; }

getPlcpHeaderLength()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getPlcpHeaderLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return headerMode->getDuration(); }

getPreambleLength()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getPreambleLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getDuration(); }

getPreambleMode()

virtual const IIeee80211PreambleMode* inet::physicallayer::Ieee80211IrMode::getPreambleMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode; }

getRifsTime()

const simtime_t inet::physicallayer::Ieee80211IrMode::getRifsTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    return -1;
}

getRxTxTurnaroundTime()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getRxTxTurnaroundTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 0; }

getSifsTime()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getSifsTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 10E-6; }

getSlotTime()

virtual const simtime_t inet::physicallayer::Ieee80211IrMode::getSlotTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 8E-6; }

printToStream()

virtual std::ostream& inet::physicallayer::Ieee80211IrMode::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

inlineoverridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{ return stream << "Ieee80211IrMode"; }

Member Data Documentation

dataMode

const Ieee80211IrDataMode* inet::physicallayer::Ieee80211IrMode::dataMode

protected

headerMode

const Ieee80211IrHeaderMode* inet::physicallayer::Ieee80211IrMode::headerMode

protected

preambleMode

const Ieee80211IrPreambleMode* inet::physicallayer::Ieee80211IrMode::preambleMode

protected

---

The documentation for this class was generated from the following files:

• Ieee80211IrMode.h
• Ieee80211IrMode.cc
