inet::physicallayer::Ieee80211IrHeaderMode Class Reference

#include <Ieee80211IrMode.h>

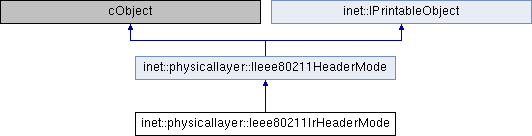

Inheritance diagram for inet::physicallayer::Ieee80211IrHeaderMode:

Public Member Functions
	Ieee80211IrHeaderMode (const PpmModulationBase *modulation)
int	getDRSlotLength () const
int	getDCLASlotLength () const
b	getLengthFieldLength () const
b	getCrcFieldLength () const
int	getSlotLength () const
const simtime_t	getSlotDuration () const
virtual b	getLength () const override
virtual bps	getNetBitrate () const override
virtual bps	getGrossBitrate () const override
virtual const simtime_t	getDuration () const override
virtual const PpmModulationBase *	getModulation () const override
virtual Ptr< Ieee80211PhyHeader >	createHeader () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const PpmModulationBase *	modulation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211IrHeaderMode()

inet::physicallayer::Ieee80211IrHeaderMode::Ieee80211IrHeaderMode

(

const PpmModulationBase *

modulation

)

                                                                                :
    modulation(modulation)
{
}

Member Function Documentation

createHeader()

virtual Ptr<Ieee80211PhyHeader> inet::physicallayer::Ieee80211IrHeaderMode::createHeader ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return makeShared<Ieee80211IrPhyHeader>(); }

getCrcFieldLength()

b inet::physicallayer::Ieee80211IrHeaderMode::getCrcFieldLength ( ) const

inline

{ return b(16); }

getDCLASlotLength()

int inet::physicallayer::Ieee80211IrHeaderMode::getDCLASlotLength ( ) const

inline

{ return 32; }

getDRSlotLength()

int inet::physicallayer::Ieee80211IrHeaderMode::getDRSlotLength ( ) const

inline

{ return 3; }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211IrHeaderMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return (double)getLength().get() / getNetBitrate().get() + getSlotLength() * getSlotDuration(); }

Referenced by inet::physicallayer::Ieee80211IrMode::getDuration(), and inet::physicallayer::Ieee80211IrMode::getPlcpHeaderLength().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211IrHeaderMode::getGrossBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getNetBitrate(); }

getLength()

virtual b inet::physicallayer::Ieee80211IrHeaderMode::getLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getLengthFieldLength() + getCrcFieldLength(); }

getLengthFieldLength()

b inet::physicallayer::Ieee80211IrHeaderMode::getLengthFieldLength ( ) const

inline

{ return b(16); }

getModulation()

virtual const PpmModulationBase* inet::physicallayer::Ieee80211IrHeaderMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return modulation; }

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211IrHeaderMode::getNetBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return Mbps(1); }

getSlotDuration()

const simtime_t inet::physicallayer::Ieee80211IrHeaderMode::getSlotDuration ( ) const

inline

{ return 250E-9; }

getSlotLength()

int inet::physicallayer::Ieee80211IrHeaderMode::getSlotLength ( ) const

inline

{ return getDRSlotLength() + getDCLASlotLength(); }

Member Data Documentation

modulation

const PpmModulationBase* inet::physicallayer::Ieee80211IrHeaderMode::modulation

protected

---

The documentation for this class was generated from the following files:

• Ieee80211IrMode.h
• Ieee80211IrMode.cc
