#include <PpmModulationBase.h>

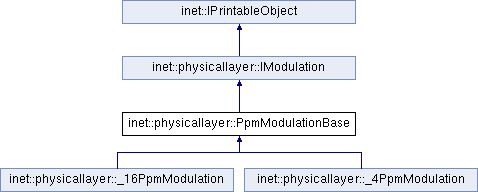

Inheritance diagram for inet::physicallayer::PpmModulationBase:

Public Member Functions
	PpmModulationBase (unsigned int numberOfPulses)

double	calculateBER (double snir, Hz bandwidth, bps bitrate) const override
	Returns the bit error rate as a function of the signal to noise and interference ratio, the bandwidth, and the gross (physical) bitrate. More...

double	calculateSER (double snir, Hz bandwidth, bps bitrate) const override
	Returns the symbol error rate as a function of the signal to noise and interference ratio, the bandwidth, and the gross (physical) bitrate. More...

unsigned int	getConstellationSize () const

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ PpmModulationBase()

inet::physicallayer::PpmModulationBase::PpmModulationBase ( unsigned int numberOfPulses )

                                                                 :
     numberOfPulses(numberOfPulses)
 {
 }

double inet::physicallayer::PpmModulationBase::calculateBER	(	double	snir,
		Hz	bandwidth,
		bps	bitrate
	)		const

inlineoverridevirtual

Returns the bit error rate as a function of the signal to noise and interference ratio, the bandwidth, and the gross (physical) bitrate.

25 { throw cRuntimeError("Unimplemented!"); }

double inet::physicallayer::PpmModulationBase::calculateSER	(	double	snir,
		Hz	bandwidth,
		bps	bitrate
	)		const

inlineoverridevirtual

Returns the symbol error rate as a function of the signal to noise and interference ratio, the bandwidth, and the gross (physical) bitrate.

26 { throw cRuntimeError("Unimplemented!"); }

unsigned int inet::physicallayer::PpmModulationBase::getConstellationSize ( ) const

inline

28 { return numberOfPulses; }

unsigned int inet::physicallayer::PpmModulationBase::numberOfPulses

protected

The documentation for this class was generated from the following files:
