inet::physicallayer::Ieee80211IrDataMode Class Reference

#include <Ieee80211IrMode.h>

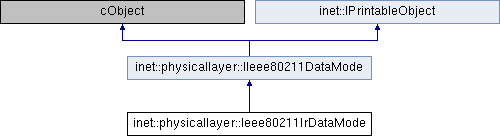

Inheritance diagram for inet::physicallayer::Ieee80211IrDataMode:

Public Member Functions
	Ieee80211IrDataMode (const PpmModulationBase *modulation)
virtual Hz	getBandwidth () const override
virtual bps	getNetBitrate () const override
virtual bps	getGrossBitrate () const override
virtual b	getPaddingLength (b dataLength) const override
virtual b	getCompleteLength (b dataLength) const override
virtual const simtime_t	getDuration (b length) const override
virtual const PpmModulationBase *	getModulation () const override
virtual int	getNumberOfSpatialStreams () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const PpmModulationBase *	modulation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211IrDataMode()

inet::physicallayer::Ieee80211IrDataMode::Ieee80211IrDataMode

(

const PpmModulationBase *

modulation

)

                                                                            :
    modulation(modulation)
{
}

Member Function Documentation

getBandwidth()

virtual Hz inet::physicallayer::Ieee80211IrDataMode::getBandwidth ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return Hz(NaN); }

getCompleteLength()

virtual b inet::physicallayer::Ieee80211IrDataMode::getCompleteLength ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return dataLength; }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211IrDataMode::getDuration ( b  length ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return (double)length.get() / getGrossBitrate().get(); }

Referenced by inet::physicallayer::Ieee80211IrMode::getDuration().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211IrDataMode::getGrossBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return getNetBitrate(); }

getModulation()

virtual const PpmModulationBase* inet::physicallayer::Ieee80211IrDataMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return modulation; }

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211IrDataMode::getNetBitrate ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return Mbps(1) * modulation->getConstellationSize() / 2; }

getNumberOfSpatialStreams()

virtual int inet::physicallayer::Ieee80211IrDataMode::getNumberOfSpatialStreams ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return 1; }

getPaddingLength()

virtual b inet::physicallayer::Ieee80211IrDataMode::getPaddingLength ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return b(0); }

Member Data Documentation

modulation

const PpmModulationBase* inet::physicallayer::Ieee80211IrDataMode::modulation

protected

---

The documentation for this class was generated from the following files:

• Ieee80211IrMode.h
• Ieee80211IrMode.cc
