inet::physicallayer::Ieee80211IrPreambleMode Class Reference

#include <Ieee80211IrMode.h>

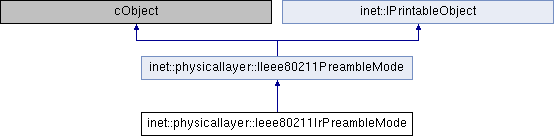

Inheritance diagram for inet::physicallayer::Ieee80211IrPreambleMode:

Public Member Functions
	Ieee80211IrPreambleMode (int syncSlotLength)
int	getSyncSlotLength () const
int	getSFDSlotLength () const
int	getSlotLength () const
const simtime_t	getSlotDuration () const
virtual const simtime_t	getDuration () const override
virtual Ptr< Ieee80211PhyPreamble >	createPreamble () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const int	syncSlotLength

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211IrPreambleMode()

inet::physicallayer::Ieee80211IrPreambleMode::Ieee80211IrPreambleMode

(

int

syncSlotLength

)

                                                                   :
    syncSlotLength(syncSlotLength)
{
}

Member Function Documentation

createPreamble()

virtual Ptr<Ieee80211PhyPreamble> inet::physicallayer::Ieee80211IrPreambleMode::createPreamble ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211PreambleMode.

{ return makeShared<Ieee80211IrPhyPreamble>(); }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211IrPreambleMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211PreambleMode.

{ return getSlotLength() * getSlotDuration(); }

Referenced by inet::physicallayer::Ieee80211IrMode::getDuration(), and inet::physicallayer::Ieee80211IrMode::getPreambleLength().

getSFDSlotLength()

int inet::physicallayer::Ieee80211IrPreambleMode::getSFDSlotLength ( ) const

inline

{ return 4; }

getSlotDuration()

const simtime_t inet::physicallayer::Ieee80211IrPreambleMode::getSlotDuration ( ) const

inline

{ return 250E-9; }

getSlotLength()

int inet::physicallayer::Ieee80211IrPreambleMode::getSlotLength ( ) const

inline

{ return getSyncSlotLength() + getSFDSlotLength(); }

getSyncSlotLength()

int inet::physicallayer::Ieee80211IrPreambleMode::getSyncSlotLength ( ) const

inline

{ return syncSlotLength; }

Member Data Documentation

syncSlotLength

const int inet::physicallayer::Ieee80211IrPreambleMode::syncSlotLength

protected

---

The documentation for this class was generated from the following files:

• Ieee80211IrMode.h
• Ieee80211IrMode.cc
