inet::physicallayer::IFecCoder Class Reference

#include <IFecCoder.h>

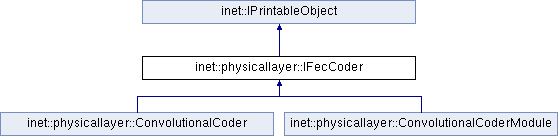

Inheritance diagram for inet::physicallayer::IFecCoder:

Public Member Functions
virtual BitVector	encode (const BitVector &informationBits) const =0
virtual std::pair< BitVector, bool >	decode (const BitVector &encodedBits) const =0
virtual const IForwardErrorCorrection *	getForwardErrorCorrection () const =0
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const
	Prints this object to the provided output stream. More...
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Member Function Documentation

decode()

virtual std::pair<BitVector, bool> inet::physicallayer::IFecCoder::decode ( const BitVector &  encodedBits ) const

pure virtual

Implemented in inet::physicallayer::ConvolutionalCoder, and inet::physicallayer::ConvolutionalCoderModule.

Referenced by inet::physicallayer::ApskDecoder::decode(), and inet::physicallayer::Ieee80211OfdmDecoder::decode().

encode()

virtual BitVector inet::physicallayer::IFecCoder::encode ( const BitVector &  informationBits ) const

pure virtual

Implemented in inet::physicallayer::ConvolutionalCoder, and inet::physicallayer::ConvolutionalCoderModule.

Referenced by inet::physicallayer::Ieee80211OfdmEncoder::encode(), and inet::physicallayer::ApskEncoder::encode().

getForwardErrorCorrection()

virtual const IForwardErrorCorrection* inet::physicallayer::IFecCoder::getForwardErrorCorrection ( ) const

pure virtual

Implemented in inet::physicallayer::ConvolutionalCoder, and inet::physicallayer::ConvolutionalCoderModule.

Referenced by inet::physicallayer::Ieee80211OfdmDecoder::decode(), inet::physicallayer::Ieee80211OfdmEncoder::encode(), inet::physicallayer::ApskEncoder::encode(), inet::physicallayer::ApskDecoder::initialize(), inet::physicallayer::Ieee80211OfdmEncoderModule::initialize(), inet::physicallayer::Ieee80211OfdmDecoderModule::initialize(), and inet::physicallayer::ApskEncoder::initialize().

---

The documentation for this class was generated from the following file:

• IFecCoder.h
