inet::physicallayer::Ieee80211OfdmDecoderModule Class Reference

#include <Ieee80211OfdmDecoderModule.h>

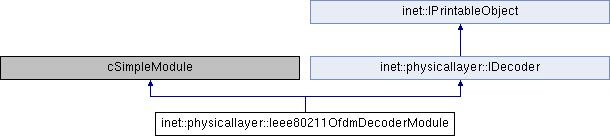

Inheritance diagram for inet::physicallayer::Ieee80211OfdmDecoderModule:

Public Member Functions
virtual	~Ieee80211OfdmDecoderModule ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
const Ieee80211OfdmCode *	getCode () const
const IReceptionPacketModel *	decode (const IReceptionBitModel *bitModel) const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override

Protected Attributes
const Ieee80211OfdmDecoder *	ofdmDecoder = nullptr
const IScrambler *	descrambler = nullptr
const IFecCoder *	convolutionalDecoder = nullptr
const IInterleaver *	deinterleaver = nullptr
const Ieee80211OfdmCode *	code = nullptr

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

~Ieee80211OfdmDecoderModule()

inet::physicallayer::Ieee80211OfdmDecoderModule::~Ieee80211OfdmDecoderModule ( )

virtual

{
    delete code;
    delete ofdmDecoder;
}

Member Function Documentation

decode()

const IReceptionPacketModel * inet::physicallayer::Ieee80211OfdmDecoderModule::decode ( const IReceptionBitModel *  bitModel ) const

overridevirtual

Implements inet::physicallayer::IDecoder.

{
    return ofdmDecoder->decode(bitModel);
}

getCode()

const Ieee80211OfdmCode* inet::physicallayer::Ieee80211OfdmDecoderModule::getCode ( ) const

inline

{ return code; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeMode(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel(), and inet::physicallayer::Ieee80211LayeredOfdmReceiver::getCodeRateFromDecoderModule().

handleMessage()

virtual void inet::physicallayer::Ieee80211OfdmDecoderModule::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

{ throw cRuntimeError("This module doesn't handle self messages"); }

initialize()

void inet::physicallayer::Ieee80211OfdmDecoderModule::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        descrambler = dynamic_cast<const IScrambler *>(getSubmodule("descrambler"));
        convolutionalDecoder = dynamic_cast<const IFecCoder *>(getSubmodule("fecDecoder"));
        deinterleaver = dynamic_cast<const IInterleaver *>(getSubmodule("deinterleaver"));
    }
    else if (stage == INITSTAGE_PHYSICAL_LAYER) {
        const ConvolutionalCode *convolutionalCode = convolutionalDecoder ? dynamic_cast<const ConvolutionalCode *>(convolutionalDecoder->getForwardErrorCorrection()) : nullptr;
        const Ieee80211OfdmInterleaving *interleaving = deinterleaver ? dynamic_cast<const Ieee80211OfdmInterleaving *>(deinterleaver->getInterleaving()) : nullptr;
        const AdditiveScrambling *scrambling = descrambler ? dynamic_cast<const AdditiveScrambling *>(descrambler->getScrambling()) : nullptr;
        code = new Ieee80211OfdmCode(convolutionalCode, interleaving, scrambling);
        ofdmDecoder = new Ieee80211OfdmDecoder(code);
    }
}

numInitStages()

virtual int inet::physicallayer::Ieee80211OfdmDecoderModule::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printToStream()

std::ostream & inet::physicallayer::Ieee80211OfdmDecoderModule::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    return ofdmDecoder->printToStream(stream, level);
}

Member Data Documentation

code

const Ieee80211OfdmCode* inet::physicallayer::Ieee80211OfdmDecoderModule::code = nullptr

protected

Referenced by initialize(), and ~Ieee80211OfdmDecoderModule().

convolutionalDecoder

const IFecCoder* inet::physicallayer::Ieee80211OfdmDecoderModule::convolutionalDecoder = nullptr

protected

Referenced by initialize().

deinterleaver

const IInterleaver* inet::physicallayer::Ieee80211OfdmDecoderModule::deinterleaver = nullptr

protected

Referenced by initialize().

descrambler

const IScrambler* inet::physicallayer::Ieee80211OfdmDecoderModule::descrambler = nullptr

protected

Referenced by initialize().

ofdmDecoder

const Ieee80211OfdmDecoder* inet::physicallayer::Ieee80211OfdmDecoderModule::ofdmDecoder = nullptr

protected

Referenced by decode(), initialize(), printToStream(), and ~Ieee80211OfdmDecoderModule().

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmDecoderModule.h
• Ieee80211OfdmDecoderModule.cc
