inet::physicallayer::Ieee80211OfdmEncoderModule Class Reference

#include <Ieee80211OfdmEncoderModule.h>

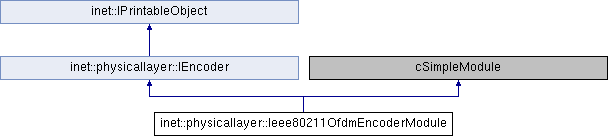

Inheritance diagram for inet::physicallayer::Ieee80211OfdmEncoderModule:

Public Member Functions
virtual	~Ieee80211OfdmEncoderModule ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
const Ieee80211OfdmCode *	getCode () const override
virtual const ITransmissionBitModel *	encode (const ITransmissionPacketModel *packetModel) const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override

Protected Attributes
const Ieee80211OfdmEncoder *	encoder = nullptr
const IScrambler *	scrambler = nullptr
const IFecCoder *	convolutionalCoder = nullptr
const IInterleaver *	interleaver = nullptr
const Ieee80211OfdmCode *	code = nullptr

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

~Ieee80211OfdmEncoderModule()

inet::physicallayer::Ieee80211OfdmEncoderModule::~Ieee80211OfdmEncoderModule ( )

virtual

{
    delete code;
    delete encoder;
}

Member Function Documentation

encode()

const ITransmissionBitModel * inet::physicallayer::Ieee80211OfdmEncoderModule::encode ( const ITransmissionPacketModel *  packetModel ) const

overridevirtual

Implements inet::physicallayer::IEncoder.

{
    return encoder->encode(packetModel);
}

getCode()

const Ieee80211OfdmCode* inet::physicallayer::Ieee80211OfdmEncoderModule::getCode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IEncoder.

{ return code; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::computeMode().

handleMessage()

virtual void inet::physicallayer::Ieee80211OfdmEncoderModule::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

{ throw cRuntimeError("This module doesn't handle self messages"); }

initialize()

void inet::physicallayer::Ieee80211OfdmEncoderModule::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        scrambler = dynamic_cast<IScrambler *>(getSubmodule("scrambler"));
        convolutionalCoder = dynamic_cast<IFecCoder *>(getSubmodule("fecEncoder"));
        interleaver = dynamic_cast<IInterleaver *>(getSubmodule("interleaver"));
    }
    else if (stage == INITSTAGE_PHYSICAL_LAYER) {
        const ConvolutionalCode *convolutionalCode = convolutionalCoder ? check_and_cast<const ConvolutionalCode *>(convolutionalCoder->getForwardErrorCorrection()) : nullptr;
        const Ieee80211OfdmInterleaving *interleaving = interleaver ? check_and_cast<const Ieee80211OfdmInterleaving *>(interleaver->getInterleaving()) : nullptr;
        const AdditiveScrambling *scrambling = scrambler ? check_and_cast<const AdditiveScrambling *>(scrambler->getScrambling()) : nullptr;
        code = new Ieee80211OfdmCode(convolutionalCode, interleaving, scrambling);
        encoder = new Ieee80211OfdmEncoder(code);
    }
}

numInitStages()

virtual int inet::physicallayer::Ieee80211OfdmEncoderModule::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printToStream()

virtual std::ostream& inet::physicallayer::Ieee80211OfdmEncoderModule::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

inlineoverridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{ return encoder->printToStream(stream, level); }

Member Data Documentation

code

const Ieee80211OfdmCode* inet::physicallayer::Ieee80211OfdmEncoderModule::code = nullptr

protected

Referenced by initialize(), and ~Ieee80211OfdmEncoderModule().

convolutionalCoder

const IFecCoder* inet::physicallayer::Ieee80211OfdmEncoderModule::convolutionalCoder = nullptr

protected

Referenced by initialize().

encoder

const Ieee80211OfdmEncoder* inet::physicallayer::Ieee80211OfdmEncoderModule::encoder = nullptr

protected

Referenced by encode(), initialize(), and ~Ieee80211OfdmEncoderModule().

interleaver

const IInterleaver* inet::physicallayer::Ieee80211OfdmEncoderModule::interleaver = nullptr

protected

Referenced by initialize().

scrambler

const IScrambler* inet::physicallayer::Ieee80211OfdmEncoderModule::scrambler = nullptr

protected

Referenced by initialize().

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmEncoderModule.h
• Ieee80211OfdmEncoderModule.cc
