inet::physicallayer::ConvolutionalCoderModule Class Reference

#include <ConvolutionalCoderModule.h>

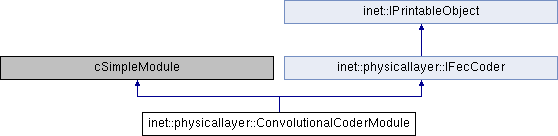

Inheritance diagram for inet::physicallayer::ConvolutionalCoderModule:

Public Member Functions
	~ConvolutionalCoderModule ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual BitVector	encode (const BitVector &informationBits) const override
virtual std::pair< BitVector, bool >	decode (const BitVector &encodedBits) const override
virtual const ConvolutionalCode *	getForwardErrorCorrection () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *msg) override

Protected Attributes
ConvolutionalCoder *	convolutionalCoder = nullptr

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

~ConvolutionalCoderModule()

inet::physicallayer::ConvolutionalCoderModule::~ConvolutionalCoderModule

(

)

{
    delete convolutionalCoder->getForwardErrorCorrection();
    delete convolutionalCoder;
}

Member Function Documentation

decode()

virtual std::pair<BitVector, bool> inet::physicallayer::ConvolutionalCoderModule::decode ( const BitVector &  encodedBits ) const

inlineoverridevirtual

Implements inet::physicallayer::IFecCoder.

{ return convolutionalCoder->decode(encodedBits); }

encode()

virtual BitVector inet::physicallayer::ConvolutionalCoderModule::encode ( const BitVector &  informationBits ) const

inlineoverridevirtual

Implements inet::physicallayer::IFecCoder.

{ return convolutionalCoder->encode(informationBits); }

getForwardErrorCorrection()

virtual const ConvolutionalCode* inet::physicallayer::ConvolutionalCoderModule::getForwardErrorCorrection ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IFecCoder.

{ return convolutionalCoder->getForwardErrorCorrection(); }

handleMessage()

virtual void inet::physicallayer::ConvolutionalCoderModule::handleMessage ( cMessage *  msg )

inlineoverrideprotectedvirtual

{ throw cRuntimeError("This module doesn't handle self messages"); }

initialize()

void inet::physicallayer::ConvolutionalCoderModule::initialize ( int  stage )

overrideprotectedvirtual

{
    if (stage == INITSTAGE_LOCAL) {
        const char *transferFunctionMatrix = par("transferFunctionMatrix");
        const char *puncturingMatrix = par("puncturingMatrix");
        const char *constraintLengthVector = par("constraintLengthVector");
        const char *mode = par("mode");
        int codeRatePuncturingK = par("punctureK");
        int codeRatePuncturingN = par("punctureN");
        ConvolutionalCode *convolutionalCode = new ConvolutionalCode(transferFunctionMatrix, puncturingMatrix, constraintLengthVector, codeRatePuncturingK, codeRatePuncturingN, mode);
        convolutionalCoder = new ConvolutionalCoder(convolutionalCode);
    }
}

numInitStages()

virtual int inet::physicallayer::ConvolutionalCoderModule::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

printToStream()

std::ostream & inet::physicallayer::ConvolutionalCoderModule::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    return convolutionalCoder->printToStream(stream, level);
}

Member Data Documentation

convolutionalCoder

ConvolutionalCoder* inet::physicallayer::ConvolutionalCoderModule::convolutionalCoder = nullptr

protected

Referenced by initialize(), printToStream(), and ~ConvolutionalCoderModule().

---

The documentation for this class was generated from the following files:

• ConvolutionalCoderModule.h
• ConvolutionalCoderModule.cc
