inet::ieee80211::Ieee80211MgmtBase Class Reference

Abstract base class for 802.11 infrastructure mode management components. More...

#include <Ieee80211MgmtBase.h>

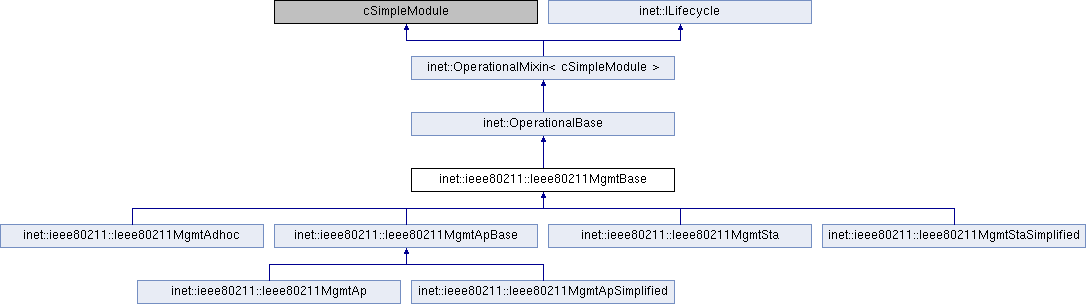

Inheritance diagram for inet::ieee80211::Ieee80211MgmtBase:

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int) override
virtual void	handleMessageWhenUp (cMessage *msg) override
	Dispatches incoming messages to handleTimer(), handleUpperMessage() or processFrame(). More...
virtual void	handleTimer (cMessage *frame)=0
	Should be redefined to deal with self-messages. More...
virtual void	handleCommand (int msgkind, cObject *ctrl)=0
	Should be redefined to handle commands from the "agent" (if present) More...
virtual void	sendDown (Packet *frame)
	Utility method for implementing handleUpperMessage(): send message to MAC. More...
virtual void	dropManagementFrame (Packet *frame)
	Utility method to dispose of an unhandled frame. More...
virtual void	processFrame (Packet *packet, const Ptr< const Ieee80211DataOrMgmtHeader > &header)
	Dispatch to frame processing methods according to frame type. More...
Processing of different frame types
virtual void	handleAuthenticationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleDeauthenticationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleAssociationRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleAssociationResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleReassociationRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleReassociationResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleDisassociationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleBeaconFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleProbeRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleProbeResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual bool	isInitializeStage (int stage) const override
	lifecycle support More...
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
virtual void	start ()
virtual void	stop ()
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
ModuleRefByPar< Ieee80211Mib >	mib
ModuleRefByPar< IInterfaceTable >	interfaceTable
NetworkInterface *	myIface = nullptr
long	numMgmtFramesReceived
long	numMgmtFramesDropped
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Detailed Description

Abstract base class for 802.11 infrastructure mode management components.

Member Function Documentation

dropManagementFrame()

void inet::ieee80211::Ieee80211MgmtBase::dropManagementFrame ( Packet *  frame )

protectedvirtual

Utility method to dispose of an unhandled frame.

{
    EV << "ignoring management frame: " << (cMessage *)frame << "\n";
    delete frame;
    numMgmtFramesDropped++;
}

Referenced by inet::ieee80211::Ieee80211MgmtAdhoc::handleAssociationRequestFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleAssociationRequestFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleAssociationRequestFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleAssociationResponseFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleAssociationResponseFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleAssociationResponseFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleAuthenticationFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleAuthenticationFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleAuthenticationFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleBeaconFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleBeaconFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleBeaconFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleDeauthenticationFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleDeauthenticationFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleDeauthenticationFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleDisassociationFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleDisassociationFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleDisassociationFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleProbeRequestFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleProbeRequestFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleProbeRequestFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleProbeResponseFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleProbeResponseFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleProbeResponseFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleReassociationRequestFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleReassociationRequestFrame(), inet::ieee80211::Ieee80211MgmtStaSimplified::handleReassociationRequestFrame(), inet::ieee80211::Ieee80211MgmtApSimplified::handleReassociationResponseFrame(), inet::ieee80211::Ieee80211MgmtAdhoc::handleReassociationResponseFrame(), and inet::ieee80211::Ieee80211MgmtStaSimplified::handleReassociationResponseFrame().

handleAssociationRequestFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleAssociationRequestFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleAssociationResponseFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleAssociationResponseFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleAuthenticationFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleAuthenticationFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleBeaconFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleBeaconFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleCommand()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleCommand ( int  msgkind, cObject *  ctrl  )

protectedpure virtual

Should be redefined to handle commands from the "agent" (if present)

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleCrashOperation()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleCrashOperation ( LifecycleOperation *  operation )

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ stop(); }

handleDeauthenticationFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleDeauthenticationFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleDisassociationFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleDisassociationFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleMessageWhenUp()

void inet::ieee80211::Ieee80211MgmtBase::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Dispatches incoming messages to handleTimer(), handleUpperMessage() or processFrame().

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->isSelfMessage()) {
        // process timers
        EV << "Timer expired: " << msg << "\n";
        handleTimer(msg);
    }
    else if (msg->arrivedOn("macIn")) {
        // process incoming frame
        EV << "Frame arrived from MAC: " << msg << "\n";
        auto packet = check_and_cast<Packet *>(msg);
        const Ptr<const Ieee80211DataOrMgmtHeader>& header = packet->peekAt<Ieee80211DataOrMgmtHeader>(packet->getFrontOffset() - B(24));
        processFrame(packet, header);
    }
    else if (msg->arrivedOn("agentIn")) {
        // process command from agent
        EV << "Command arrived from agent: " << msg << "\n";
        int msgkind = msg->getKind();
        cObject *ctrl = msg->removeControlInfo();
        delete msg;

        handleCommand(msgkind, ctrl);
    }
    else
        throw cRuntimeError("Unknown message");
}

handleProbeRequestFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleProbeRequestFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleProbeResponseFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleProbeResponseFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleReassociationRequestFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleReassociationRequestFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleReassociationResponseFrame()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleReassociationResponseFrame ( Packet *  packet, const Ptr< const Ieee80211MgmtHeader > &  header  )

protectedpure virtual

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

handleStartOperation()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleStartOperation ( LifecycleOperation *  operation )

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ start(); }

handleStopOperation()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleStopOperation ( LifecycleOperation *  operation )

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ stop(); }

handleTimer()

virtual void inet::ieee80211::Ieee80211MgmtBase::handleTimer ( cMessage *  frame )

protectedpure virtual

Should be redefined to deal with self-messages.

Implemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtApSimplified.

initialize()

void inet::ieee80211::Ieee80211MgmtBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

Reimplemented in inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtApBase, inet::ieee80211::Ieee80211MgmtStaSimplified, inet::ieee80211::Ieee80211MgmtAdhoc, and inet::ieee80211::Ieee80211MgmtSta.

{
    OperationalBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        mib.reference(this, "mibModule", true);
        interfaceTable.reference(this, "interfaceTableModule", true);
        myIface = getContainingNicModule(this);
        numMgmtFramesReceived = 0;
        numMgmtFramesDropped = 0;
        WATCH(numMgmtFramesReceived);
        WATCH(numMgmtFramesDropped);
    }
}

Referenced by inet::ieee80211::Ieee80211MgmtAdhoc::initialize(), inet::ieee80211::Ieee80211MgmtStaSimplified::initialize(), inet::ieee80211::Ieee80211MgmtApBase::initialize(), and inet::ieee80211::Ieee80211MgmtSta::initialize().

isInitializeStage()

virtual bool inet::ieee80211::Ieee80211MgmtBase::isInitializeStage ( int  stage ) const

inlineoverrideprotectedvirtual

lifecycle support

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == INITSTAGE_NETWORK_INTERFACE_CONFIGURATION; } // TODO INITSTAGE

isModuleStartStage()

virtual bool inet::ieee80211::Ieee80211MgmtBase::isModuleStartStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStartOperation::STAGE_PHYSICAL_LAYER; }

isModuleStopStage()

virtual bool inet::ieee80211::Ieee80211MgmtBase::isModuleStopStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStopOperation::STAGE_PHYSICAL_LAYER; }

numInitStages()

virtual int inet::ieee80211::Ieee80211MgmtBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented in inet::ieee80211::Ieee80211MgmtSta, inet::ieee80211::Ieee80211MgmtAp, inet::ieee80211::Ieee80211MgmtApBase, inet::ieee80211::Ieee80211MgmtApSimplified, inet::ieee80211::Ieee80211MgmtStaSimplified, and inet::ieee80211::Ieee80211MgmtAdhoc.

{ return NUM_INIT_STAGES; }

processFrame()

void inet::ieee80211::Ieee80211MgmtBase::processFrame ( Packet *  packet, const Ptr< const Ieee80211DataOrMgmtHeader > &  header  )

protectedvirtual

Dispatch to frame processing methods according to frame type.

{
    switch (header->getType()) {
        case ST_AUTHENTICATION:
            numMgmtFramesReceived++;
            handleAuthenticationFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_DEAUTHENTICATION:
            numMgmtFramesReceived++;
            handleDeauthenticationFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_ASSOCIATIONREQUEST:
            numMgmtFramesReceived++;
            handleAssociationRequestFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_ASSOCIATIONRESPONSE:
            numMgmtFramesReceived++;
            handleAssociationResponseFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_REASSOCIATIONREQUEST:
            numMgmtFramesReceived++;
            handleReassociationRequestFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_REASSOCIATIONRESPONSE:
            numMgmtFramesReceived++;
            handleReassociationResponseFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_DISASSOCIATION:
            numMgmtFramesReceived++;
            handleDisassociationFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_BEACON:
            numMgmtFramesReceived++;
            handleBeaconFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_PROBEREQUEST:
            numMgmtFramesReceived++;
            handleProbeRequestFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        case ST_PROBERESPONSE:
            numMgmtFramesReceived++;
            handleProbeResponseFrame(packet, dynamicPtrCast<const Ieee80211MgmtHeader>(header));
            break;

        default:
            throw cRuntimeError("Unexpected frame type (%s)%s", packet->getClassName(), packet->getName());
    }
}

sendDown()

void inet::ieee80211::Ieee80211MgmtBase::sendDown ( Packet *  frame )

protectedvirtual

Utility method for implementing handleUpperMessage(): send message to MAC.

{
    ASSERT(isUp());
    frame->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::ieee80211Mgmt);
    send(frame, "macOut");
}

start()

void inet::ieee80211::Ieee80211MgmtBase::start ( )

protectedvirtual

Reimplemented in inet::ieee80211::Ieee80211MgmtAp.

{
}

Referenced by inet::ieee80211::Ieee80211MgmtAp::start().

stop()

void inet::ieee80211::Ieee80211MgmtBase::stop ( )

protectedvirtual

Reimplemented in inet::ieee80211::Ieee80211MgmtAp.

{
}

Referenced by inet::ieee80211::Ieee80211MgmtAp::stop().

Member Data Documentation

interfaceTable

ModuleRefByPar<IInterfaceTable> inet::ieee80211::Ieee80211MgmtBase::interfaceTable

protected

Referenced by inet::ieee80211::Ieee80211MgmtStaSimplified::initialize().

mib

ModuleRefByPar<Ieee80211Mib> inet::ieee80211::Ieee80211MgmtBase::mib

protected

Referenced by inet::ieee80211::Ieee80211MgmtAdhoc::initialize(), inet::ieee80211::Ieee80211MgmtStaSimplified::initialize(), and inet::ieee80211::Ieee80211MgmtApBase::initialize().

myIface

NetworkInterface* inet::ieee80211::Ieee80211MgmtBase::myIface = nullptr

protected

numMgmtFramesDropped

long inet::ieee80211::Ieee80211MgmtBase::numMgmtFramesDropped

protected

numMgmtFramesReceived

long inet::ieee80211::Ieee80211MgmtBase::numMgmtFramesReceived

protected

---

The documentation for this class was generated from the following files:

• Ieee80211MgmtBase.h
• Ieee80211MgmtBase.cc
