inet::ieee80211::Ieee80211MgmtApBase Class Reference

Used in 802.11 infrastructure mode: abstract base class for management frame handling for access points (APs). More...

#include <Ieee80211MgmtApBase.h>

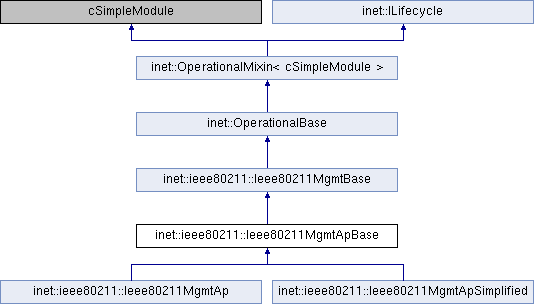

Inheritance diagram for inet::ieee80211::Ieee80211MgmtApBase:

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int) override
Protected Member Functions inherited from inet::ieee80211::Ieee80211MgmtBase
virtual void	handleMessageWhenUp (cMessage *msg) override
	Dispatches incoming messages to handleTimer(), handleUpperMessage() or processFrame(). More...
virtual void	handleTimer (cMessage *frame)=0
	Should be redefined to deal with self-messages. More...
virtual void	handleCommand (int msgkind, cObject *ctrl)=0
	Should be redefined to handle commands from the "agent" (if present) More...
virtual void	sendDown (Packet *frame)
	Utility method for implementing handleUpperMessage(): send message to MAC. More...
virtual void	dropManagementFrame (Packet *frame)
	Utility method to dispose of an unhandled frame. More...
virtual void	processFrame (Packet *packet, const Ptr< const Ieee80211DataOrMgmtHeader > &header)
	Dispatch to frame processing methods according to frame type. More...
virtual void	handleAuthenticationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleDeauthenticationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleAssociationRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleAssociationResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleReassociationRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleReassociationResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleDisassociationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleBeaconFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleProbeRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual void	handleProbeResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header)=0
virtual bool	isInitializeStage (int stage) const override
	lifecycle support More...
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
virtual void	start ()
virtual void	stop ()
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Additional Inherited Members
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State
Protected Attributes inherited from inet::ieee80211::Ieee80211MgmtBase
ModuleRefByPar< Ieee80211Mib >	mib
ModuleRefByPar< IInterfaceTable >	interfaceTable
NetworkInterface *	myIface = nullptr
long	numMgmtFramesReceived
long	numMgmtFramesDropped
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Detailed Description

Used in 802.11 infrastructure mode: abstract base class for management frame handling for access points (APs).

This class extends Ieee80211MgmtBase with utility functions that are useful for implementing AP functionality.

Member Function Documentation

initialize()

void inet::ieee80211::Ieee80211MgmtApBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::ieee80211::Ieee80211MgmtBase.

Reimplemented in inet::ieee80211::Ieee80211MgmtAp.

{
    Ieee80211MgmtBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        mib->mode = Ieee80211Mib::INFRASTRUCTURE;
        mib->bssStationData.stationType = Ieee80211Mib::ACCESS_POINT;
        mib->bssData.ssid = par("ssid").stdstringValue();
    }
    else if (stage == INITSTAGE_LINK_LAYER)
        mib->bssData.bssid = mib->address;
}

Referenced by inet::ieee80211::Ieee80211MgmtAp::initialize().

numInitStages()

virtual int inet::ieee80211::Ieee80211MgmtApBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented from inet::ieee80211::Ieee80211MgmtBase.

Reimplemented in inet::ieee80211::Ieee80211MgmtAp, and inet::ieee80211::Ieee80211MgmtApSimplified.

{ return NUM_INIT_STAGES; }

---

The documentation for this class was generated from the following files:

• Ieee80211MgmtApBase.h
• Ieee80211MgmtApBase.cc
