inet::ieee80211::Ieee80211MgmtStaSimplified Class Reference

Used in 802.11 infrastructure mode: handles management frames for a station (STA). More...

#include <Ieee80211MgmtStaSimplified.h>

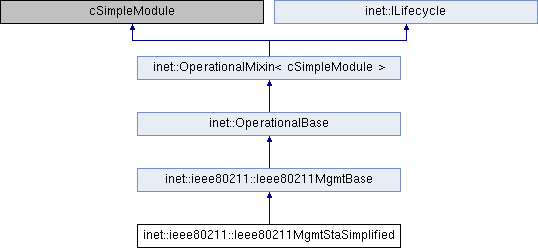

Inheritance diagram for inet::ieee80211::Ieee80211MgmtStaSimplified:
inet::ieee80211::Ieee80211MgmtBase inet::OperationalBase inet::OperationalMixin< cSimpleModule > inet::ILifecycle

Protected Member Functions

virtual int numInitStages () const override

virtual void initialize (int) override

virtual void handleTimer (cMessage *msg) override
 Implements abstract Ieee80211MgmtBase method. More...

virtual void handleCommand (int msgkind, cObject *ctrl) override
 Implements abstract Ieee80211MgmtBase method – throws an error (no commands supported) More...

Processing of different frame types
virtual void handleAuthenticationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleDeauthenticationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleAssociationRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleAssociationResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleReassociationRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleReassociationResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleDisassociationFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleBeaconFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleProbeRequestFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

virtual void handleProbeResponseFrame (Packet *packet, const Ptr< const Ieee80211MgmtHeader > &header) override

- Protected Member Functions inherited from inet::ieee80211::Ieee80211MgmtBase
virtual void handleMessageWhenUp (cMessage *msg) override
 Dispatches incoming messages to handleTimer(), handleUpperMessage() or processFrame(). More...

virtual void sendDown (Packet *frame)
 Utility method for implementing handleUpperMessage(): send message to MAC. More...

virtual void dropManagementFrame (Packet *frame)
 Utility method to dispose of an unhandled frame. More...

virtual void processFrame (Packet *packet, const Ptr< const Ieee80211DataOrMgmtHeader > &header)
 Dispatch to frame processing methods according to frame type. More...

virtual bool isInitializeStage (int stage) const override
 lifecycle support More...

virtual bool isModuleStartStage (int stage) const override

virtual bool isModuleStopStage (int stage) const override

virtual void handleStartOperation (LifecycleOperation *operation) override

virtual void handleStopOperation (LifecycleOperation *operation) override

virtual void handleCrashOperation (LifecycleOperation *operation) override

virtual void start ()

virtual void stop ()

- Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int numInitStages () const override

virtual void refreshDisplay () const override

virtual void handleMessage (cMessage *msg) override

virtual void handleMessageWhenDown (cMessage *msg)

virtual bool handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
 Perform one stage of a lifecycle operation. More...

virtual State getInitialOperationalState () const
 Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void handleActiveOperationTimeout (cMessage *message)

virtual bool isUp () const
 utility functions More...

virtual bool isDown () const

virtual void setOperationalState (State newState)

virtual void scheduleOperationTimeout (simtime_t timeout)

virtual void setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)

virtual void delayActiveOperationFinish (simtime_t timeout)

virtual void startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void finishActiveOperation ()


Additional Inherited Members

- Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual ~OperationalMixin ()
 }@ More...

- Public Member Functions inherited from inet::ILifecycle
virtual ~ILifecycle ()

- Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum  State

- Protected Attributes inherited from inet::ieee80211::Ieee80211MgmtBase
ModuleRefByPar< Ieee80211Mib > mib

ModuleRefByPar< IInterfaceTable > interfaceTable

NetworkInterface * myIface = nullptr

long numMgmtFramesReceived

long numMgmtFramesDropped

- Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State operationalState

simtime_t lastChange

Operation activeOperation

cMessage * activeOperationTimeout

cMessage * activeOperationExtraTimer


Detailed Description

Used in 802.11 infrastructure mode: handles management frames for a station (STA).

See corresponding NED file for a detailed description. This implementation ignores many details.

Member Function Documentation

◆ handleAssociationRequestFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleAssociationRequestFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

65 {
66  dropManagementFrame(packet);
67 }

◆ handleAssociationResponseFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleAssociationResponseFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

70 {
71  dropManagementFrame(packet);
72 }

◆ handleAuthenticationFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleAuthenticationFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

55 {
56  dropManagementFrame(packet);
57 }

◆ handleBeaconFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleBeaconFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

90 {
91  dropManagementFrame(packet);
92 }

◆ handleCommand()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleCommand ( int  msgkind,
cObject *  ctrl
)
overrideprotectedvirtual

Implements abstract Ieee80211MgmtBase method – throws an error (no commands supported)

Implements inet::ieee80211::Ieee80211MgmtBase.

50 {
51  throw cRuntimeError("handleCommand(): no commands supported");
52 }

◆ handleDeauthenticationFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleDeauthenticationFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

60 {
61  dropManagementFrame(packet);
62 }

◆ handleDisassociationFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleDisassociationFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

85 {
86  dropManagementFrame(packet);
87 }

◆ handleProbeRequestFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleProbeRequestFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

95 {
96  dropManagementFrame(packet);
97 }

◆ handleProbeResponseFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleProbeResponseFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

100 {
101  dropManagementFrame(packet);
102 }

◆ handleReassociationRequestFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleReassociationRequestFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

75 {
76  dropManagementFrame(packet);
77 }

◆ handleReassociationResponseFrame()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleReassociationResponseFrame ( Packet *  packet,
const Ptr< const Ieee80211MgmtHeader > &  header
)
overrideprotectedvirtual

Implements inet::ieee80211::Ieee80211MgmtBase.

80 {
81  dropManagementFrame(packet);
82 }

◆ handleTimer()

void inet::ieee80211::Ieee80211MgmtStaSimplified::handleTimer ( cMessage *  msg)
overrideprotectedvirtual

Implements abstract Ieee80211MgmtBase method.

Implements inet::ieee80211::Ieee80211MgmtBase.

45 {
46  ASSERT(false);
47 }

◆ initialize()

void inet::ieee80211::Ieee80211MgmtStaSimplified::initialize ( int  stage)
overrideprotectedvirtual

Reimplemented from inet::ieee80211::Ieee80211MgmtBase.

24 {
25  Ieee80211MgmtBase::initialize(stage);
26  if (stage == INITSTAGE_LOCAL) {
27  mib->mode = Ieee80211Mib::INFRASTRUCTURE;
28  mib->bssStationData.stationType = Ieee80211Mib::STATION;
29  mib->bssStationData.isAssociated = true;
30  }
31  else if (stage == INITSTAGE_LINK_LAYER) {
32  L3AddressResolver addressResolver;
33  auto accessPointAddress = addressResolver.resolve(par("accessPointAddress"), L3AddressResolver::ADDR_MAC).toMac();
34  mib->bssData.bssid = accessPointAddress;
35  auto host = addressResolver.findHostWithAddress(mib->bssData.bssid);
36  auto interfaceTable = addressResolver.findInterfaceTableOf(host);
37  auto networkInterface = interfaceTable->findInterfaceByAddress(mib->bssData.bssid);
38  auto apMib = dynamic_cast<Ieee80211Mib *>(networkInterface->getSubmodule("mib"));
39  apMib->bssAccessPointData.stations[mib->address] = Ieee80211Mib::ASSOCIATED;
40  mib->bssData.ssid = apMib->bssData.ssid;
41  }
42 }

◆ numInitStages()

virtual int inet::ieee80211::Ieee80211MgmtStaSimplified::numInitStages ( ) const
inlineoverrideprotectedvirtual

Reimplemented from inet::ieee80211::Ieee80211MgmtBase.

26 { return NUM_INIT_STAGES; }
