#include <OscillatorBase.h>

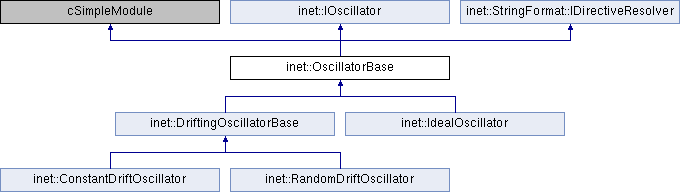

Inheritance diagram for inet::OscillatorBase:

Public Member Functions
virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::IOscillator
virtual	~IOscillator ()

virtual simtime_t	getNominalTickLength () const =0
	Returns the nominal time interval between subsequent ticks. More...

virtual simtime_t	getComputationOrigin () const =0
	Returns the oscillator computation origin from which the ticks are measured. More...

virtual int64_t	computeTicksForInterval (simtime_t timeInterval) const =0
	Returns the number of ticks in the specified time interval measured from the oscillator computation origin. More...

virtual simtime_t	computeIntervalForTicks (int64_t numTicks) const =0
	Returns the smallest simulation time interval for the specified number of ticks measured from the oscillator computation origin. More...

Static Public Attributes
static simsignal_t	driftRateChangedSignal = cComponent::registerSignal("driftRateChanged")

Static Public Attributes inherited from inet::IOscillator
static simsignal_t	preOscillatorStateChangedSignal = cComponent::registerSignal("preOscillatorStateChanged")

static simsignal_t	postOscillatorStateChangedSignal = cComponent::registerSignal("postOscillatorStateChanged")

Protected Member Functions
virtual int	numInitStages () const override

virtual void	initialize (int stage) override

virtual void	updateDisplayString () const

Protected Attributes
const char *	displayStringTextFormat = nullptr

Member Function Documentation

◆ initialize()

void inet::OscillatorBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented in inet::RandomDriftOscillator, inet::DriftingOscillatorBase, inet::IdealOscillator, and inet::ConstantDriftOscillator.

 {
     if (stage == INITSTAGE_LOCAL)
         displayStringTextFormat = par("displayStringTextFormat");
     else if (stage == INITSTAGE_LAST)
         updateDisplayString();
 }

Referenced by inet::IdealOscillator::initialize(), and inet::DriftingOscillatorBase::initialize().

◆ numInitStages()

virtual int inet::OscillatorBase::numInitStages ( ) const

inlineoverrideprotectedvirtual

25 { return NUM_INIT_STAGES; }

◆ resolveDirective()

const char * inet::OscillatorBase::resolveDirective ( char directive ) const

overridevirtual

Implements inet::StringFormat::IDirectiveResolver.

Reimplemented in inet::DriftingOscillatorBase.

 {
     static std::string result;
     switch (directive) {
         case 'n':
             result = getNominalTickLength().str() + " s";
             break;
         case 'o':
             result = getComputationOrigin().str() + " s";
             break;
         default:
             throw cRuntimeError("Unknown directive: %c", directive);
     }
     return result.c_str();
 }

Referenced by inet::DriftingOscillatorBase::resolveDirective().

◆ updateDisplayString()

void inet::OscillatorBase::updateDisplayString ( ) const

protectedvirtual

 {
     if (getEnvir()->isGUI()) {
         auto text = StringFormat::formatString(displayStringTextFormat, this);
         getDisplayString().setTagArg("t", 0, text);
     }
 }

Referenced by initialize(), inet::DriftingOscillatorBase::setDriftRate(), and inet::DriftingOscillatorBase::setTickOffset().

Member Data Documentation

◆ displayStringTextFormat

const char* inet::OscillatorBase::displayStringTextFormat = nullptr

protected

Referenced by initialize(), and updateDisplayString().

◆ driftRateChangedSignal

simsignal_t inet::OscillatorBase::driftRateChangedSignal = cComponent::registerSignal("driftRateChanged")

static

Referenced by inet::IdealOscillator::finish(), inet::IdealOscillator::initialize(), and inet::DriftingOscillatorBase::setDriftRate().

The documentation for this class was generated from the following files:
