inet::IdealOscillator Class Reference

#include <IdealOscillator.h>

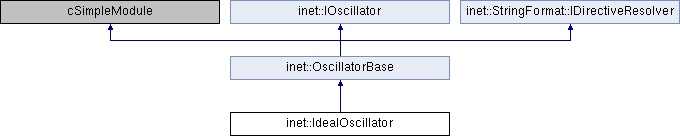

Inheritance diagram for inet::IdealOscillator:

Public Member Functions
virtual simtime_t	getComputationOrigin () const override
	Returns the oscillator computation origin from which the ticks are measured. More...
virtual simtime_t	getNominalTickLength () const override
	Returns the nominal time interval between subsequent ticks. More...
virtual int64_t	computeTicksForInterval (simtime_t timeInterval) const override
	Returns the number of ticks in the specified time interval measured from the oscillator computation origin. More...
virtual simtime_t	computeIntervalForTicks (int64_t numTicks) const override
	Returns the smallest simulation time interval for the specified number of ticks measured from the oscillator computation origin. More...
Public Member Functions inherited from inet::OscillatorBase
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::IOscillator
virtual	~IOscillator ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	finish () override
Protected Member Functions inherited from inet::OscillatorBase
virtual int	numInitStages () const override
virtual void	updateDisplayString () const

Protected Attributes
simtime_t	origin
simtime_t	tickLength
Protected Attributes inherited from inet::OscillatorBase
const char *	displayStringTextFormat = nullptr

Additional Inherited Members
Static Public Attributes inherited from inet::OscillatorBase
static simsignal_t	driftRateChangedSignal = cComponent::registerSignal("driftRateChanged")
Static Public Attributes inherited from inet::IOscillator
static simsignal_t	preOscillatorStateChangedSignal = cComponent::registerSignal("preOscillatorStateChanged")
static simsignal_t	postOscillatorStateChangedSignal = cComponent::registerSignal("postOscillatorStateChanged")

Member Function Documentation

computeIntervalForTicks()

simtime_t inet::IdealOscillator::computeIntervalForTicks ( int64_t  numTicks ) const

overridevirtual

Returns the smallest simulation time interval for the specified number of ticks measured from the oscillator computation origin.

For example, for 0 ticks returns 0, for 1 tick returns the remaining time till the next tick, and so on.

Implements inet::IOscillator.

{
    return tickLength * numTicks;
}

computeTicksForInterval()

int64_t inet::IdealOscillator::computeTicksForInterval ( simtime_t  timeInterval ) const

overridevirtual

Returns the number of ticks in the specified time interval measured from the oscillator computation origin.

Note that each tick interval taken into consideration may be different from the nominal tick length. Returns the #ticks in (computation origin, computation origin + time interval].

Implements inet::IOscillator.

{
    return timeInterval.raw() / tickLength.raw();
}

finish()

void inet::IdealOscillator::finish ( )

overrideprotectedvirtual

{
    OscillatorBase::finish();
    emit(driftRateChangedSignal, 0.0);
}

getComputationOrigin()

virtual simtime_t inet::IdealOscillator::getComputationOrigin ( ) const

inlineoverridevirtual

Returns the oscillator computation origin from which the ticks are measured.

There may or may not be an actual tick at the returned simulation time.

Implements inet::IOscillator.

{ return origin; }

getNominalTickLength()

virtual simtime_t inet::IdealOscillator::getNominalTickLength ( ) const

inlineoverridevirtual

Returns the nominal time interval between subsequent ticks.

This value is usually different from the actual amount of elapsed time between ticks.

Implements inet::IOscillator.

{ return tickLength; }

initialize()

void inet::IdealOscillator::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OscillatorBase.

{
    OscillatorBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        origin = simTime();
        tickLength = par("tickLength");
        if (tickLength == 0)
            tickLength.setRaw(1);
        WATCH(tickLength);
        emit(driftRateChangedSignal, 0.0);
    }
}

Member Data Documentation

origin

simtime_t inet::IdealOscillator::origin

protected

Referenced by initialize().

tickLength

simtime_t inet::IdealOscillator::tickLength

protected

Referenced by computeIntervalForTicks(), computeTicksForInterval(), and initialize().

---

The documentation for this class was generated from the following files:

• IdealOscillator.h
• IdealOscillator.cc
