inet::DriftingOscillatorBase Class Reference

#include <DriftingOscillatorBase.h>

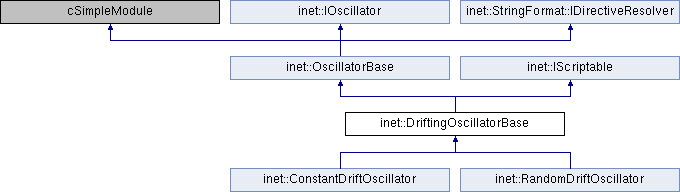

Inheritance diagram for inet::DriftingOscillatorBase:

Public Member Functions
virtual simtime_t	getComputationOrigin () const override
	Returns the oscillator computation origin from which the ticks are measured. More...
virtual simtime_t	getNominalTickLength () const override
	Returns the nominal time interval between subsequent ticks. More...
virtual simtime_t	getCurrentTickLength () const
virtual void	setDriftRate (double driftRate)
virtual void	setTickOffset (simtime_t tickOffset)
virtual int64_t	computeTicksForInterval (simtime_t timeInterval) const override
	Returns the number of ticks in the specified time interval measured from the oscillator computation origin. More...
virtual simtime_t	computeIntervalForTicks (int64_t numTicks) const override
	Returns the smallest simulation time interval for the specified number of ticks measured from the oscillator computation origin. More...
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::IOscillator
virtual	~IOscillator ()
Public Member Functions inherited from inet::IScriptable
virtual	~IScriptable ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	processCommand (const cXMLElement &node) override
	Called by ScenarioManager whenever a script command needs to be carried out by the module. More...
double	invertDriftRate (double driftRate) const
int64_t	increaseWithDriftRate (int64_t value) const
int64_t	increaseWithDriftRate (int64_t value, double driftRate) const
int64_t	decreaseWithDriftRate (int64_t value) const
int64_t	decreaseWithDriftRate (int64_t value, double inverseDriftRate) const
Protected Member Functions inherited from inet::OscillatorBase
virtual int	numInitStages () const override
virtual void	updateDisplayString () const

Protected Attributes
simtime_t	nominalTickLength
double	driftRate = NaN
double	inverseDriftRate = NaN
simtime_t	origin
simtime_t	nextTickFromOrigin
Protected Attributes inherited from inet::OscillatorBase
const char *	displayStringTextFormat = nullptr

Additional Inherited Members
Static Public Attributes inherited from inet::OscillatorBase
static simsignal_t	driftRateChangedSignal = cComponent::registerSignal("driftRateChanged")
Static Public Attributes inherited from inet::IOscillator
static simsignal_t	preOscillatorStateChangedSignal = cComponent::registerSignal("preOscillatorStateChanged")
static simsignal_t	postOscillatorStateChangedSignal = cComponent::registerSignal("postOscillatorStateChanged")

Member Function Documentation

computeIntervalForTicks()

simtime_t inet::DriftingOscillatorBase::computeIntervalForTicks ( int64_t  numTicks ) const

overridevirtual

Returns the smallest simulation time interval for the specified number of ticks measured from the oscillator computation origin.

For example, for 0 ticks returns 0, for 1 tick returns the remaining time till the next tick, and so on.

Implements inet::IOscillator.

{
    if (numTicks == 0)
        return 0;
    else if (nextTickFromOrigin == 0)
        return SimTime::fromRaw(decreaseWithDriftRate(nominalTickLength.raw() * numTicks));
    else
        return SimTime::fromRaw(decreaseWithDriftRate(nominalTickLength.raw() * (numTicks - 1))) + nextTickFromOrigin;
}

computeTicksForInterval()

int64_t inet::DriftingOscillatorBase::computeTicksForInterval ( simtime_t  timeInterval ) const

overridevirtual

Returns the number of ticks in the specified time interval measured from the oscillator computation origin.

Note that each tick interval taken into consideration may be different from the nominal tick length. Returns the #ticks in (computation origin, computation origin + time interval].

Implements inet::IOscillator.

{
    ASSERT(timeInterval >= 0);
    return increaseWithDriftRate(timeInterval.raw() + nextTickFromOrigin.raw()) / nominalTickLength.raw();
}

decreaseWithDriftRate() [1/2]

int64_t inet::DriftingOscillatorBase::decreaseWithDriftRate ( int64_t  value ) const

inlineprotected

{ return decreaseWithDriftRate(value, inverseDriftRate); }

Referenced by computeIntervalForTicks(), decreaseWithDriftRate(), and setDriftRate().

decreaseWithDriftRate() [2/2]

int64_t inet::DriftingOscillatorBase::decreaseWithDriftRate ( int64_t  value, double  inverseDriftRate  ) const

inlineprotected

{ return value + (int64_t)(value * inverseDriftRate); }

getComputationOrigin()

virtual simtime_t inet::DriftingOscillatorBase::getComputationOrigin ( ) const

inlineoverridevirtual

Returns the oscillator computation origin from which the ticks are measured.

There may or may not be an actual tick at the returned simulation time.

Implements inet::IOscillator.

{ return origin; }

getCurrentTickLength()

virtual simtime_t inet::DriftingOscillatorBase::getCurrentTickLength ( ) const

inlinevirtual

{ return SimTime::fromRaw(decreaseWithDriftRate(nominalTickLength.raw())); }

Referenced by initialize(), resolveDirective(), setDriftRate(), and setTickOffset().

getNominalTickLength()

virtual simtime_t inet::DriftingOscillatorBase::getNominalTickLength ( ) const

inlineoverridevirtual

Returns the nominal time interval between subsequent ticks.

This value is usually different from the actual amount of elapsed time between ticks.

Implements inet::IOscillator.

{ return nominalTickLength; }

increaseWithDriftRate() [1/2]

int64_t inet::DriftingOscillatorBase::increaseWithDriftRate ( int64_t  value ) const

inlineprotected

{ return increaseWithDriftRate(value, driftRate); }

Referenced by computeTicksForInterval(), increaseWithDriftRate(), and setDriftRate().

increaseWithDriftRate() [2/2]

int64_t inet::DriftingOscillatorBase::increaseWithDriftRate ( int64_t  value, double  driftRate  ) const

inlineprotected

{ return value + (int64_t)(value * driftRate); }

initialize()

void inet::DriftingOscillatorBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OscillatorBase.

Reimplemented in inet::RandomDriftOscillator, and inet::ConstantDriftOscillator.

{
    OscillatorBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        nominalTickLength = par("nominalTickLength");
        if (nominalTickLength == 0)
            nominalTickLength.setRaw(1);
        inverseDriftRate = invertDriftRate(driftRate);
        origin = simTime();
        simtime_t currentTickLength = getCurrentTickLength();
        simtime_t tickOffset = par("tickOffset");
        if (tickOffset < 0 || tickOffset >= currentTickLength)
            throw cRuntimeError("First tick offset must be in the range [0, currentTickLength)");
        if (tickOffset == 0)
            nextTickFromOrigin = 0;
        else
            nextTickFromOrigin = currentTickLength - tickOffset;
        WATCH(nominalTickLength);
        WATCH(driftRate);
        WATCH(inverseDriftRate);
        WATCH(nextTickFromOrigin);
    }
}

Referenced by inet::ConstantDriftOscillator::initialize(), and inet::RandomDriftOscillator::initialize().

invertDriftRate()

double inet::DriftingOscillatorBase::invertDriftRate ( double  driftRate ) const

inlineprotected

{ return 1 / (1 + driftRate) - 1; }

Referenced by initialize(), and setDriftRate().

processCommand()

void inet::DriftingOscillatorBase::processCommand ( const cXMLElement &  node )

overrideprotectedvirtual

Called by ScenarioManager whenever a script command needs to be carried out by the module.

The command is represented by the XML element or element tree. The command name can be obtained as:

const char *command = node->getTagName()

Parameters are XML attributes, e.g. a "neighbour" parameter can be retrieved as:

const char *attr = node->getAttribute("neighbour")

More complex input can be passed in child elements.

See also

cXMLElement

Implements inet::IScriptable.

{
    Enter_Method("processCommand");
    if (!strcmp(node.getTagName(), "set-oscillator")) {
        if (const char *driftRateStr = node.getAttribute("drift-rate")) {
            double newDriftRate = strtod(driftRateStr, nullptr) / 1E+6;
            setDriftRate(newDriftRate);
        }
        if (const char *tickOffsetStr = node.getAttribute("tick-offset")) {
            simtime_t newTickOffset = SimTime::parse(tickOffsetStr);
            setTickOffset(newTickOffset);
        }
    }
    else
        throw cRuntimeError("Invalid command: %s", node.getTagName());
}

resolveDirective()

const char * inet::DriftingOscillatorBase::resolveDirective ( char  directive ) const

overridevirtual

Reimplemented from inet::OscillatorBase.

{
    static std::string result;
    switch (directive) {
        case 'c':
            result = getCurrentTickLength().str() + " s";
            break;
        case 'd':
            result = std::to_string((int64_t)(driftRate * 1E+6)) + " ppm";
            break;
        default:
            return OscillatorBase::resolveDirective(directive);
    }
    return result.c_str();
}

setDriftRate()

void inet::DriftingOscillatorBase::setDriftRate ( double  driftRate )

virtual

{
    Enter_Method("setDriftRate");
    if (newDriftRate != driftRate) {
        emit(preOscillatorStateChangedSignal, this);
        simtime_t currentSimTime = simTime();
        EV_DEBUG << "Setting oscillator drift rate from " << driftRate << " to " << newDriftRate << " at simtime " << currentSimTime << ".\n";
        simtime_t currentTickLength = getCurrentTickLength();
        simtime_t baseTickTime = origin + nextTickFromOrigin - currentTickLength;
        simtime_t elapsedTickTime = fmod(currentSimTime - baseTickTime, currentTickLength);
        double newInverseDriftRate = invertDriftRate(newDriftRate);
        if (elapsedTickTime == SIMTIME_ZERO)
            nextTickFromOrigin = 0;
        else {
            int64_t v = increaseWithDriftRate(currentTickLength.raw() - elapsedTickTime.raw());
            nextTickFromOrigin = SimTime::fromRaw(decreaseWithDriftRate(v, newInverseDriftRate));
        }
        driftRate = newDriftRate;
        inverseDriftRate = newInverseDriftRate;
        origin = currentSimTime;
        emit(driftRateChangedSignal, driftRate);
        emit(postOscillatorStateChangedSignal, this);
        updateDisplayString();
    }
}

Referenced by inet::RandomDriftOscillator::handleMessage(), and processCommand().

setTickOffset()

void inet::DriftingOscillatorBase::setTickOffset ( simtime_t  tickOffset )

virtual

{
    Enter_Method("setTickOffset");
    simtime_t currentSimTime = simTime();
    simtime_t currentTickLength = getCurrentTickLength();
    simtime_t baseTickTime = origin + nextTickFromOrigin - currentTickLength;
    simtime_t oldTickOffset = fmod(currentSimTime - baseTickTime, currentTickLength);
    if (newTickOffset != oldTickOffset) {
        emit(preOscillatorStateChangedSignal, this);
        EV_DEBUG << "Setting oscillator tick offset from " << oldTickOffset << " to " << newTickOffset << " at simtime " << currentSimTime << ".\n";
        origin = currentSimTime;
        if (newTickOffset == 0)
            nextTickFromOrigin = 0;
        else
            nextTickFromOrigin = currentTickLength - newTickOffset;
        emit(postOscillatorStateChangedSignal, this);
        updateDisplayString();
    }
}

Referenced by processCommand().

Member Data Documentation

driftRate

double inet::DriftingOscillatorBase::driftRate = NaN

protected

Referenced by inet::RandomDriftOscillator::handleMessage(), inet::ConstantDriftOscillator::initialize(), initialize(), inet::RandomDriftOscillator::initialize(), resolveDirective(), and setDriftRate().

inverseDriftRate

double inet::DriftingOscillatorBase::inverseDriftRate = NaN

protected

Referenced by initialize(), and setDriftRate().

nextTickFromOrigin

simtime_t inet::DriftingOscillatorBase::nextTickFromOrigin

protected

Referenced by computeIntervalForTicks(), computeTicksForInterval(), initialize(), setDriftRate(), and setTickOffset().

nominalTickLength

simtime_t inet::DriftingOscillatorBase::nominalTickLength

protected

Referenced by computeIntervalForTicks(), computeTicksForInterval(), and initialize().

origin

simtime_t inet::DriftingOscillatorBase::origin

protected

Referenced by initialize(), setDriftRate(), and setTickOffset().

---

The documentation for this class was generated from the following files:

• DriftingOscillatorBase.h
• DriftingOscillatorBase.cc
