#include <RandomDriftOscillator.h>

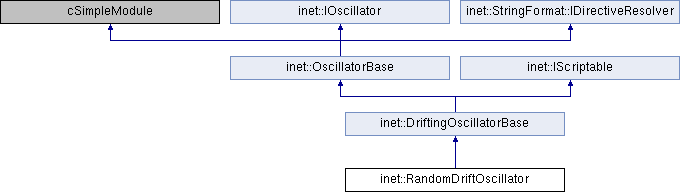

Inheritance diagram for inet::RandomDriftOscillator:

Protected Member Functions
virtual	~RandomDriftOscillator ()

virtual void	initialize (int stage) override

virtual void	handleMessage (cMessage *message) override

Protected Member Functions inherited from inet::DriftingOscillatorBase
virtual void	processCommand (const cXMLElement &node) override
	Called by ScenarioManager whenever a script command needs to be carried out by the module. More...

double	invertDriftRate (double driftRate) const

int64_t	increaseWithDriftRate (int64_t value) const

int64_t	increaseWithDriftRate (int64_t value, double driftRate) const

int64_t	decreaseWithDriftRate (int64_t value) const

int64_t	decreaseWithDriftRate (int64_t value, double inverseDriftRate) const

Protected Member Functions inherited from inet::OscillatorBase
virtual int	numInitStages () const override

virtual void	updateDisplayString () const

Protected Attributes
cMessage *	changeTimer = nullptr

cPar *	driftRateParameter = nullptr

cPar *	driftRateChangeParameter = nullptr

cPar *	changeIntervalParameter = nullptr

double	driftRateChangeTotal = 0

double	driftRateChangeLowerLimit = NaN

double	driftRateChangeUpperLimit = NaN

Protected Attributes inherited from inet::DriftingOscillatorBase
simtime_t	nominalTickLength

double	driftRate = NaN

double	inverseDriftRate = NaN

simtime_t	origin

simtime_t	nextTickFromOrigin

Protected Attributes inherited from inet::OscillatorBase
const char *	displayStringTextFormat = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::DriftingOscillatorBase
virtual simtime_t	getComputationOrigin () const override
	Returns the oscillator computation origin from which the ticks are measured. More...

virtual simtime_t	getNominalTickLength () const override
	Returns the nominal time interval between subsequent ticks. More...

virtual simtime_t	getCurrentTickLength () const

virtual void	setDriftRate (double driftRate)

virtual void	setTickOffset (simtime_t tickOffset)

virtual int64_t	computeTicksForInterval (simtime_t timeInterval) const override
	Returns the number of ticks in the specified time interval measured from the oscillator computation origin. More...

virtual simtime_t	computeIntervalForTicks (int64_t numTicks) const override
	Returns the smallest simulation time interval for the specified number of ticks measured from the oscillator computation origin. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::IOscillator
virtual	~IOscillator ()

Public Member Functions inherited from inet::IScriptable
virtual	~IScriptable ()

Static Public Attributes inherited from inet::OscillatorBase
static simsignal_t	driftRateChangedSignal = cComponent::registerSignal("driftRateChanged")

Static Public Attributes inherited from inet::IOscillator
static simsignal_t	preOscillatorStateChangedSignal = cComponent::registerSignal("preOscillatorStateChanged")

static simsignal_t	postOscillatorStateChangedSignal = cComponent::registerSignal("postOscillatorStateChanged")

Constructor & Destructor Documentation

◆ ~RandomDriftOscillator()

virtual inet::RandomDriftOscillator::~RandomDriftOscillator ( )

inlineprotectedvirtual

27 { cancelAndDelete(changeTimer); }

Member Function Documentation

◆ handleMessage()

void inet::RandomDriftOscillator::handleMessage ( cMessage * message )

overrideprotectedvirtual

 {
     if (message == changeTimer) {
         driftRateChangeTotal += driftRateChangeParameter->doubleValue() / 1E+6;
         driftRateChangeTotal = std::max(driftRateChangeTotal, driftRateChangeLowerLimit);
         driftRateChangeTotal = std::min(driftRateChangeTotal, driftRateChangeUpperLimit);
         auto driftRate = driftRateParameter->doubleValue() / 1E+6;
         setDriftRate(driftRate + driftRateChangeTotal);
         scheduleAfter(changeIntervalParameter->doubleValue(), changeTimer);
     }
     else
         throw cRuntimeError("Unknown message");
 }

◆ initialize()

void inet::RandomDriftOscillator::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::DriftingOscillatorBase.

 {
     if (stage == INITSTAGE_LOCAL) {
         driftRateParameter = &par("driftRate");
         driftRateChangeParameter = &par("driftRateChange");
         changeIntervalParameter = &par("changeInterval");
         driftRate = driftRateParameter->doubleValue() / 1E+6;
     }
     DriftingOscillatorBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         changeTimer = new cMessage("ChangeTimer");
         driftRateChangeLowerLimit = par("driftRateChangeLowerLimit").doubleValue() / 1E+6;
         driftRateChangeUpperLimit = par("driftRateChangeUpperLimit").doubleValue() / 1E+6;
         scheduleAfter(changeIntervalParameter->doubleValue(), changeTimer);
     }
 }
