inet::visualizer::TransportConnectionCanvasVisualizer Class Reference

#include <TransportConnectionCanvasVisualizer.h>

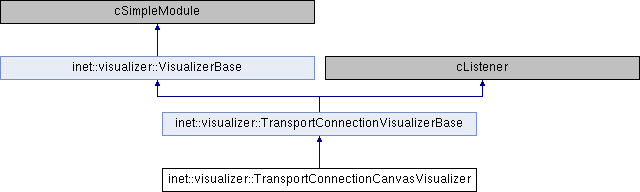

Inheritance diagram for inet::visualizer::TransportConnectionCanvasVisualizer:

Classes
class	TransportConnectionCanvasVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual LabeledIconFigure *	createConnectionEndFigure (tcp::TcpConnection *connectionVisualization) const
virtual const TransportConnectionVisualization *	createConnectionVisualization (cModule *source, cModule *destination, tcp::TcpConnection *tcpConnection) const override
virtual void	addConnectionVisualization (const TransportConnectionVisualization *connectionVisualization) override
virtual void	removeConnectionVisualization (const TransportConnectionVisualization *connectionVisualization) override
virtual void	setConnectionLabelsVisible (bool visible)
Protected Member Functions inherited from inet::visualizer::TransportConnectionVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual void	removeAllConnectionVisualizations ()
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
double	zIndex = NaN
const CanvasProjection *	canvasProjection = nullptr
ModuleRefByPar< NetworkNodeCanvasVisualizer >	networkNodeVisualizer
Protected Attributes inherited from inet::visualizer::TransportConnectionVisualizerBase
bool	displayTransportConnections = false
NetworkNodeFilter	sourceNodeFilter
PortFilter	sourcePortFilter
NetworkNodeFilter	destinationNodeFilter
PortFilter	destinationPortFilter
const char *	icon = nullptr
ColorSet	iconColorSet
cFigure::Font	labelFont
cFigure::Color	labelColor
Placement	placementHint
double	placementPriority
std::vector< const TransportConnectionVisualization * >	connectionVisualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::TransportConnectionVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Member Function Documentation

addConnectionVisualization()

void inet::visualizer::TransportConnectionCanvasVisualizer::addConnectionVisualization ( const TransportConnectionVisualization *  connectionVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::TransportConnectionVisualizerBase.

{
    TransportConnectionVisualizerBase::addConnectionVisualization(connectionVisualization);
    auto connectionCanvasVisualization = static_cast<const TransportConnectionCanvasVisualization *>(connectionVisualization);
    auto sourceModule = getSimulation()->getModule(connectionVisualization->sourceModuleId);
    if (sourceModule != nullptr) {
        auto sourceVisualization = networkNodeVisualizer->getNetworkNodeVisualization(getContainingNode(sourceModule));
        sourceVisualization->addAnnotation(connectionCanvasVisualization->sourceFigure, connectionCanvasVisualization->sourceFigure->getBounds().getSize(), placementHint, placementPriority);
    }
    auto destinationModule = getSimulation()->getModule(connectionVisualization->destinationModuleId);
    if (destinationModule != nullptr) {
        auto destinationVisualization = networkNodeVisualizer->getNetworkNodeVisualization(getContainingNode(destinationModule));
        destinationVisualization->addAnnotation(connectionCanvasVisualization->destinationFigure, connectionCanvasVisualization->destinationFigure->getBounds().getSize(), placementHint, placementPriority);
    }
    setConnectionLabelsVisible(connectionVisualizations.size() > iconColorSet.getSize());
}

createConnectionEndFigure()

LabeledIconFigure * inet::visualizer::TransportConnectionCanvasVisualizer::createConnectionEndFigure ( tcp::TcpConnection *  connectionVisualization ) const

protectedvirtual

{
#ifdef INET_WITH_TCP_INET
    std::string icon(this->icon);
    auto labeledIconFigure = new LabeledIconFigure("transportConnection");
    labeledIconFigure->setTags((std::string("transport_connection ") + tags).c_str());
    labeledIconFigure->setTooltip("This icon represents a transport connection between two network nodes");
    labeledIconFigure->setAssociatedObject(tcpConnection);
    labeledIconFigure->setZIndex(zIndex);
    auto iconFigure = labeledIconFigure->getIconFigure();
    iconFigure->setTooltip("This icon represents a transport connection between two network nodes");
    iconFigure->setImageName(icon.substr(0, icon.find_first_of(".")).c_str());
    iconFigure->setTintColor(iconColorSet.getColor(connectionVisualizations.size()));
    iconFigure->setTintAmount(1);
    auto labelFigure = labeledIconFigure->getLabelFigure();
    labelFigure->setTooltip("This label represents a transport connection between two network nodes");
    labelFigure->setPosition(iconFigure->getBounds().getSize() / 2);
    labelFigure->setFont(labelFont);
    labelFigure->setColor(labelColor);
    char label[2];
    label[0] = 'A' + (char)(connectionVisualizations.size() / iconColorSet.getSize());
    label[1] = '\0';
    labelFigure->setText(label);
    return labeledIconFigure;
#else
    return nullptr;
#endif // INET_WITH_TCP_INET
}

Referenced by createConnectionVisualization().

createConnectionVisualization()

const TransportConnectionVisualizerBase::TransportConnectionVisualization * inet::visualizer::TransportConnectionCanvasVisualizer::createConnectionVisualization ( cModule *  source, cModule *  destination, tcp::TcpConnection *  tcpConnection  ) const

overrideprotectedvirtual

Implements inet::visualizer::TransportConnectionVisualizerBase.

{
    auto sourceFigure = createConnectionEndFigure(tcpConnection);
    auto destinationFigure = createConnectionEndFigure(tcpConnection);
    return new TransportConnectionCanvasVisualization(sourceFigure, destinationFigure, source->getId(), destination->getId(), 1);
}

initialize()

void inet::visualizer::TransportConnectionCanvasVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::TransportConnectionVisualizerBase.

{
    TransportConnectionVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        zIndex = par("zIndex");
        auto canvas = visualizationTargetModule->getCanvas();
        canvasProjection = CanvasProjection::getCanvasProjection(canvas);
        networkNodeVisualizer.reference(this, "networkNodeVisualizerModule", true);
    }
}

removeConnectionVisualization()

void inet::visualizer::TransportConnectionCanvasVisualizer::removeConnectionVisualization ( const TransportConnectionVisualization *  connectionVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::TransportConnectionVisualizerBase.

{
    TransportConnectionVisualizerBase::removeConnectionVisualization(connectionVisualization);
    auto connectionCanvasVisualization = static_cast<const TransportConnectionCanvasVisualization *>(connectionVisualization);
    auto sourceModule = getSimulation()->getModule(connectionVisualization->sourceModuleId);
    if (sourceModule != nullptr) {
        auto sourceVisualization = networkNodeVisualizer->getNetworkNodeVisualization(getContainingNode(sourceModule));
        sourceVisualization->removeAnnotation(connectionCanvasVisualization->sourceFigure);
    }
    auto destinationModule = getSimulation()->getModule(connectionVisualization->destinationModuleId);
    if (destinationModule != nullptr) {
        auto destinationVisualization = networkNodeVisualizer->getNetworkNodeVisualization(getContainingNode(destinationModule));
        destinationVisualization->removeAnnotation(connectionCanvasVisualization->destinationFigure);
    }
    setConnectionLabelsVisible(connectionVisualizations.size() > iconColorSet.getSize());
}

setConnectionLabelsVisible()

void inet::visualizer::TransportConnectionCanvasVisualizer::setConnectionLabelsVisible ( bool  visible )

protectedvirtual

{
    for (auto connectionVisualization : connectionVisualizations) {
        auto connectionCanvasVisualization = static_cast<const TransportConnectionCanvasVisualization *>(connectionVisualization);
        connectionCanvasVisualization->sourceFigure->getLabelFigure()->setVisible(visible);
        connectionCanvasVisualization->destinationFigure->getLabelFigure()->setVisible(visible);
    }
}

Referenced by addConnectionVisualization(), and removeConnectionVisualization().

Member Data Documentation

canvasProjection

const CanvasProjection* inet::visualizer::TransportConnectionCanvasVisualizer::canvasProjection = nullptr

protected

Referenced by initialize().

networkNodeVisualizer

ModuleRefByPar<NetworkNodeCanvasVisualizer> inet::visualizer::TransportConnectionCanvasVisualizer::networkNodeVisualizer

protected

Referenced by addConnectionVisualization(), initialize(), and removeConnectionVisualization().

zIndex

double inet::visualizer::TransportConnectionCanvasVisualizer::zIndex = NaN

protected

Referenced by createConnectionEndFigure(), and initialize().

---

The documentation for this class was generated from the following files:

• TransportConnectionCanvasVisualizer.h
• TransportConnectionCanvasVisualizer.cc
