#include <QueueVisualizerBase.h>

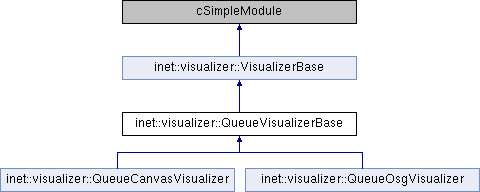

Inheritance diagram for inet::visualizer::QueueVisualizerBase:

Classes
class	QueueVisitor

class	QueueVisualization

Parameters
bool	displayQueues = false

QueueFilter	queueFilter

cFigure::Color	color

double	width

double	height

double	spacing

Placement	placementHint

double	placementPriority

std::vector< const QueueVisualization * >	queueVisualizations

virtual void	initialize (int stage) override

virtual void	handleParameterChange (const char *name) override

virtual void	refreshDisplay () const override

virtual void	preDelete (cComponent *root) override

virtual QueueVisualization *	createQueueVisualization (queueing::IPacketQueue *queue) const =0

virtual void	addQueueVisualization (const QueueVisualization *queueVisualization)

virtual void	addQueueVisualizations ()

virtual void	removeQueueVisualization (const QueueVisualization *queueVisualization)

virtual void	refreshQueueVisualization (const QueueVisualization *queueVisualization) const =0

virtual void	removeAllQueueVisualizations ()

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override

virtual Coord	getPosition (const cModule *networkNode) const

virtual Coord	getContactPosition (const cModule networkNode, const Coord &fromPosition, const char contactMode, double contactSpacing) const

virtual Quaternion	getOrientation (const cModule *networkNode) const

virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr

cModule *	visualizationSubjectModule = nullptr

const char *	tags = nullptr

Member Function Documentation

◆ addQueueVisualization()

void inet::visualizer::QueueVisualizerBase::addQueueVisualization ( const QueueVisualization * queueVisualization )

protectedvirtual

Reimplemented in inet::visualizer::QueueCanvasVisualizer.

 {
     queueVisualizations.push_back(queueVisualization);
 }

Referenced by inet::visualizer::QueueCanvasVisualizer::addQueueVisualization(), and addQueueVisualizations().

◆ addQueueVisualizations()

void inet::visualizer::QueueVisualizerBase::addQueueVisualizations ( )

protectedvirtual

 {
     QueueVisitor queueVisitor;
     visualizationSubjectModule->forEachChild(&queueVisitor);
     for (auto queue : queueVisitor.queues) {
         if (queueFilter.matches(queue))
             addQueueVisualization(createQueueVisualization(queue));
     }
 }

Referenced by handleParameterChange(), and initialize().

◆ createQueueVisualization()

virtual QueueVisualization* inet::visualizer::QueueVisualizerBase::createQueueVisualization ( queueing::IPacketQueue * queue ) const

protectedpure virtual

Implemented in inet::visualizer::QueueCanvasVisualizer, and inet::visualizer::QueueOsgVisualizer.

Referenced by addQueueVisualizations().

◆ handleParameterChange()

void inet::visualizer::QueueVisualizerBase::handleParameterChange ( const char * name )

overrideprotectedvirtual

 {
     if (!hasGUI()) return;
     if (name != nullptr) {
         removeAllQueueVisualizations();
         addQueueVisualizations();
     }
 }

◆ initialize()

void inet::visualizer::QueueVisualizerBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::QueueCanvasVisualizer, and inet::visualizer::QueueOsgVisualizer.

 {
     VisualizerBase::initialize(stage);
     if (!hasGUI()) return;
     if (stage == INITSTAGE_LOCAL) {
         displayQueues = par("displayQueues");
         queueFilter.setPattern(par("queueFilter"));
         color = cFigure::parseColor(par("color"));
         width = par("width");
         height = par("height");
         spacing = par("spacing");
         placementHint = parsePlacement(par("placementHint"));
         placementPriority = par("placementPriority");
     }
     else if (stage == INITSTAGE_LAST) {
         if (displayQueues)
             addQueueVisualizations();
     }
 }

Referenced by inet::visualizer::QueueOsgVisualizer::initialize(), and inet::visualizer::QueueCanvasVisualizer::initialize().

◆ preDelete()

void inet::visualizer::QueueVisualizerBase::preDelete ( cComponent * root )

overrideprotectedvirtual

 {
     if (displayQueues)
         removeAllQueueVisualizations();
 }

◆ refreshDisplay()

void inet::visualizer::QueueVisualizerBase::refreshDisplay ( ) const

overrideprotectedvirtual

 {
     for (auto queueVisualization : queueVisualizations)
         refreshQueueVisualization(queueVisualization);
 }

◆ refreshQueueVisualization()

virtual void inet::visualizer::QueueVisualizerBase::refreshQueueVisualization ( const QueueVisualization * queueVisualization ) const

protectedpure virtual

Implemented in inet::visualizer::QueueCanvasVisualizer, and inet::visualizer::QueueOsgVisualizer.

Referenced by refreshDisplay().

◆ removeAllQueueVisualizations()

void inet::visualizer::QueueVisualizerBase::removeAllQueueVisualizations ( )

protectedvirtual

 {
     for (auto queueVisualization : std::vector<const QueueVisualization *>(queueVisualizations)) {
         removeQueueVisualization(queueVisualization);
         delete queueVisualization;
     }
 }

Referenced by handleParameterChange(), and preDelete().

◆ removeQueueVisualization()

void inet::visualizer::QueueVisualizerBase::removeQueueVisualization ( const QueueVisualization * queueVisualization )

protectedvirtual

Reimplemented in inet::visualizer::QueueCanvasVisualizer.

 {
     queueVisualizations.erase(std::remove(queueVisualizations.begin(), queueVisualizations.end(), queueVisualization), queueVisualizations.end());
 }
