inet::visualizer::PhysicalEnvironmentVisualizerBase Class Reference

#include <PhysicalEnvironmentVisualizerBase.h>

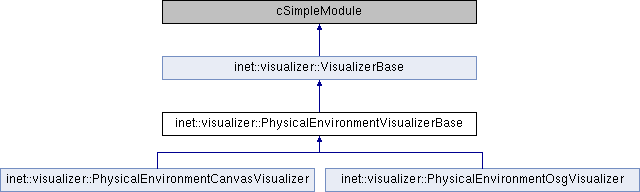

Inheritance diagram for inet::visualizer::PhysicalEnvironmentVisualizerBase:

Parameters
const physicalenvironment::IPhysicalEnvironment *	physicalEnvironment = nullptr
bool	displayObjects = false
virtual void	initialize (int stage) override

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

initialize()

void inet::visualizer::PhysicalEnvironmentVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::PhysicalEnvironmentCanvasVisualizer, and inet::visualizer::PhysicalEnvironmentOsgVisualizer.

{
    VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        physicalEnvironment = dynamic_cast<IPhysicalEnvironment *>(findModuleByPath(par("physicalEnvironmentModule")));
        displayObjects = par("displayObjects");
    }
}

Referenced by inet::visualizer::PhysicalEnvironmentOsgVisualizer::initialize(), and inet::visualizer::PhysicalEnvironmentCanvasVisualizer::initialize().

Member Data Documentation

displayObjects

bool inet::visualizer::PhysicalEnvironmentVisualizerBase::displayObjects = false

protected

physicalEnvironment

const physicalenvironment::IPhysicalEnvironment* inet::visualizer::PhysicalEnvironmentVisualizerBase::physicalEnvironment = nullptr

protected

---

The documentation for this class was generated from the following files:

• PhysicalEnvironmentVisualizerBase.h
• PhysicalEnvironmentVisualizerBase.cc
