inet::visualizer::PathCanvasVisualizerBase Class Reference

#include <PathCanvasVisualizerBase.h>

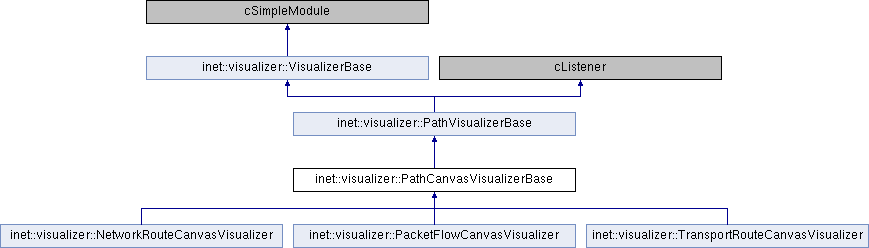

Inheritance diagram for inet::visualizer::PathCanvasVisualizerBase:

Classes
class	PathCanvasVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual const PathVisualization *	createPathVisualization (const char *label, const std::vector< int > &path, cPacket *packet) const override
virtual void	addPathVisualization (const PathVisualization *pathVisualization) override
virtual void	removePathVisualization (const PathVisualization *pathVisualization) override
virtual void	setAlpha (const PathVisualization *pathVisualization, double alpha) const override
virtual void	refreshPathVisualization (const PathVisualization *pathVisualization, cPacket *packet) override
Protected Member Functions inherited from inet::visualizer::PathVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual bool	isPathStart (cModule *module) const =0
virtual bool	isPathEnd (cModule *module) const =0
virtual bool	isPathElement (cModule *module) const =0
virtual void	processPathStart (cModule *networkNode, const char *label, Packet *packet)
virtual void	processPathElement (cModule *networkNode, const char *label, Packet *packet)
virtual void	processPathEnd (cModule *networkNode, const char *label, Packet *packet)
virtual const PathVisualization *	getPathVisualization (const std::vector< int > &path)
virtual void	removeAllPathVisualizations ()
virtual const std::vector< int > *	getIncompletePath (const std::string &label, int chunkId)
virtual void	addToIncompletePath (const std::string &label, int chunkId, cModule *module)
virtual void	removeIncompletePath (const std::string &label, int chunkId)
virtual std::string	getPathVisualizationText (const PathVisualization *pathVisualization, cPacket *packet) const
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
double	zIndex = NaN
const CanvasProjection *	canvasProjection = nullptr
cGroupFigure *	pathGroup = nullptr
Protected Attributes inherited from inet::visualizer::PathVisualizerBase
bool	displayRoutes = false
NetworkNodeFilter	nodeFilter
PacketFilter	packetFilter
ColorSet	lineColorSet
cFigure::LineStyle	lineStyle
double	lineWidth = NaN
bool	lineSmooth = false
double	lineShift = NaN
const char *	lineShiftMode = nullptr
double	lineContactSpacing = NaN
const char *	lineContactMode = nullptr
StringFormat	labelFormat
cFigure::Font	labelFont
const char *	labelColorAsString = nullptr
cFigure::Color	labelColor
const char *	fadeOutMode = nullptr
double	fadeOutTime = NaN
double	fadeOutAnimationSpeed = NaN
simsignal_t	startPathSignal = -1
simsignal_t	extendPathSignal = -1
simsignal_t	endPathSignal = -1
LineManager *	lineManager = nullptr
std::map< std::pair< std::string, int >, std::vector< int > >	incompletePaths
	Maps path label and chunk id to module id vector. More...
std::map< int, int >	numPaths
	Maps nodes to the number of paths that go through it. More...
std::multimap< std::pair< int, int >, const PathVisualization * >	pathVisualizations
	Maps source/destination modules to multiple paths between them. More...
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::PathVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Member Function Documentation

addPathVisualization()

void inet::visualizer::PathCanvasVisualizerBase::addPathVisualization ( const PathVisualization *  pathVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::PathVisualizerBase.

{
    PathVisualizerBase::addPathVisualization(pathVisualization);
    auto pathCanvasVisualization = static_cast<const PathCanvasVisualization *>(pathVisualization);
    lineManager->addModulePath(pathVisualization);
    pathGroup->addFigure(pathCanvasVisualization->figure);
}

createPathVisualization()

const PathVisualizerBase::PathVisualization * inet::visualizer::PathCanvasVisualizerBase::createPathVisualization ( const char *  label, const std::vector< int > &  path, cPacket *  packet  ) const

overrideprotectedvirtual

Implements inet::visualizer::PathVisualizerBase.

Reimplemented in inet::visualizer::PacketFlowCanvasVisualizer, inet::visualizer::NetworkRouteCanvasVisualizer, and inet::visualizer::TransportRouteCanvasVisualizer.

{
    auto figure = new LabeledPolylineFigure("path");
    auto polylineFigure = figure->getPolylineFigure();
    polylineFigure->setSmooth(lineSmooth);
    polylineFigure->setLineWidth(lineWidth);
    polylineFigure->setLineStyle(lineStyle);
    polylineFigure->setEndArrowhead(cFigure::ARROW_BARBED);
    auto lineColor = lineColorSet.getColor(pathVisualizations.size());
    polylineFigure->setLineColor(lineColor);
    auto labelFigure = figure->getLabelFigure();
    labelFigure->setFont(labelFont);
    labelFigure->setColor(opp_isempty(labelColorAsString) ? lineColor : labelColor);
    return new PathCanvasVisualization(label, path, figure);
}

Referenced by inet::visualizer::NetworkRouteCanvasVisualizer::createPathVisualization(), inet::visualizer::TransportRouteCanvasVisualizer::createPathVisualization(), and inet::visualizer::PacketFlowCanvasVisualizer::createPathVisualization().

initialize()

void inet::visualizer::PathCanvasVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::PathVisualizerBase.

{
    PathVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        zIndex = par("zIndex");
        auto canvas = visualizationTargetModule->getCanvas();
        lineManager = LineManager::getCanvasLineManager(canvas);
        canvasProjection = CanvasProjection::getCanvasProjection(canvas);
        pathGroup = new cGroupFigure("paths");
        pathGroup->setZIndex(zIndex);
        canvas->addFigure(pathGroup);
    }
}

refreshDisplay()

void inet::visualizer::PathCanvasVisualizerBase::refreshDisplay ( ) const

overrideprotectedvirtual

Reimplemented from inet::visualizer::PathVisualizerBase.

{
    PathVisualizerBase::refreshDisplay();
    auto simulation = getSimulation();
    for (auto it : pathVisualizations) {
        auto pathVisualization = it.second;
        auto pathCanvasVisualization = static_cast<const PathCanvasVisualization *>(pathVisualization);
        auto moduleIds = pathCanvasVisualization->moduleIds;
        std::vector<LineSegment> segments;
        for (size_t index = 1; index < moduleIds.size(); index++) {
            auto fromModuleId = moduleIds[index - 1];
            auto toModuleId = moduleIds[index];
            auto fromModule = simulation->getModule(fromModuleId);
            auto toModule = simulation->getModule(toModuleId);
            auto fromPosition = getContactPosition(fromModule, getPosition(toModule), lineContactMode, lineContactSpacing);
            auto toPosition = getContactPosition(toModule, getPosition(fromModule), lineContactMode, lineContactSpacing);
            auto shift = lineManager->getLineShift(fromModuleId, toModuleId, fromPosition, toPosition, lineShiftMode, pathVisualization->shiftOffsets[index - 1]) * lineShift;
            segments.push_back(LineSegment(fromPosition + shift, toPosition + shift));
        }
        std::vector<cFigure::Point> points;
        for (size_t index = 0; index < segments.size(); index++) {
            if (index == 0)
                points.push_back(canvasProjection->computeCanvasPoint(segments[index].getPoint1()));
            if (index > 0) {
                auto& segment1 = segments[index - 1];
                auto& segment2 = segments[index];
                Coord intersection = intersectLines(segment1, segment2);
                if (std::isfinite(intersection.x) && std::isfinite(intersection.y)) {
                    if (isPointOnSegment(segment1, intersection) && isPointOnSegment(segment2, intersection))
                        points.push_back(canvasProjection->computeCanvasPoint(intersection));
                    else {
                        double distance = segment1.getPoint2().distance(segment2.getPoint1());
                        double distance1 = intersection.distance(segment1.getPoint2());
                        double distance2 = intersection.distance(segment2.getPoint1());
                        if (distance1 + distance2 < 4 * distance)
                            points.push_back(canvasProjection->computeCanvasPoint(intersection));
                        else {
                            points.push_back(canvasProjection->computeCanvasPoint(segment1.getPoint2()));
                            points.push_back(canvasProjection->computeCanvasPoint(segment2.getPoint1()));
                        }
                    }
                }
                else {
                    points.push_back(canvasProjection->computeCanvasPoint(segment1.getPoint2()));
                    points.push_back(canvasProjection->computeCanvasPoint(segment2.getPoint1()));
                }
            }
            if (index == segments.size() - 1)
                points.push_back(canvasProjection->computeCanvasPoint(segments[index].getPoint2()));
        }
        pathCanvasVisualization->figure->setPoints(points);
    }
    visualizationTargetModule->getCanvas()->setAnimationSpeed(pathVisualizations.empty() ? 0 : fadeOutAnimationSpeed, this);
}

refreshPathVisualization()

void inet::visualizer::PathCanvasVisualizerBase::refreshPathVisualization ( const PathVisualization *  pathVisualization, cPacket *  packet  )

overrideprotectedvirtual

Reimplemented from inet::visualizer::PathVisualizerBase.

{
    PathVisualizerBase::refreshPathVisualization(pathVisualization, packet);
    auto pathCanvasVisualization = static_cast<const PathCanvasVisualization *>(pathVisualization);
    auto text = getPathVisualizationText(pathVisualization, packet);
    pathCanvasVisualization->figure->getLabelFigure()->setText(text.c_str());
}

removePathVisualization()

void inet::visualizer::PathCanvasVisualizerBase::removePathVisualization ( const PathVisualization *  pathVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::PathVisualizerBase.

{
    PathVisualizerBase::removePathVisualization(pathVisualization);
    auto pathCanvasVisualization = static_cast<const PathCanvasVisualization *>(pathVisualization);
    lineManager->removeModulePath(pathVisualization);
    pathGroup->removeFigure(pathCanvasVisualization->figure);
}

setAlpha()

void inet::visualizer::PathCanvasVisualizerBase::setAlpha ( const PathVisualization *  pathVisualization, double  alpha  ) const

overrideprotectedvirtual

Implements inet::visualizer::PathVisualizerBase.

{
    auto pathCanvasVisualization = static_cast<const PathCanvasVisualization *>(path);
    pathCanvasVisualization->figure->getPolylineFigure()->setLineOpacity(alpha);
}

Member Data Documentation

canvasProjection

const CanvasProjection* inet::visualizer::PathCanvasVisualizerBase::canvasProjection = nullptr

protected

Referenced by initialize(), and refreshDisplay().

pathGroup

cGroupFigure* inet::visualizer::PathCanvasVisualizerBase::pathGroup = nullptr

protected

Referenced by addPathVisualization(), initialize(), and removePathVisualization().

zIndex

double inet::visualizer::PathCanvasVisualizerBase::zIndex = NaN

protected

Referenced by initialize().

---

The documentation for this class was generated from the following files:

• PathCanvasVisualizerBase.h
• PathCanvasVisualizerBase.cc
