#include <NetworkRouteOsgVisualizer.h>

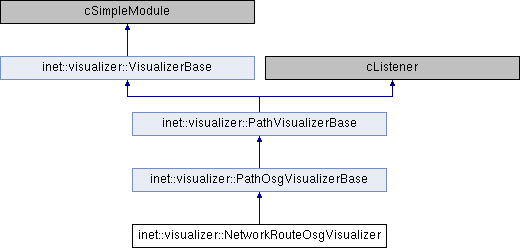

Inheritance diagram for inet::visualizer::NetworkRouteOsgVisualizer:

Protected Member Functions
virtual bool	isPathStart (cModule *module) const override

virtual bool	isPathEnd (cModule *module) const override

virtual bool	isPathElement (cModule *module) const override

Protected Member Functions inherited from inet::visualizer::PathOsgVisualizerBase
virtual void	initialize (int stage) override

virtual void	refreshDisplay () const override

virtual const PathVisualization *	createPathVisualization (const char label, const std::vector< int > &path, cPacket packet) const override

virtual void	addPathVisualization (const PathVisualization *pathVisualization) override

virtual void	removePathVisualization (const PathVisualization *pathVisualization) override

virtual void	setAlpha (const PathVisualization *pathVisualization, double alpha) const override

Protected Member Functions inherited from inet::visualizer::PathVisualizerBase
virtual void	handleParameterChange (const char *name) override

virtual void	preDelete (cComponent *root) override

virtual void	subscribe ()

virtual void	unsubscribe ()

virtual void	processPathStart (cModule networkNode, const char label, Packet *packet)

virtual void	processPathElement (cModule networkNode, const char label, Packet *packet)

virtual void	processPathEnd (cModule networkNode, const char label, Packet *packet)

virtual const PathVisualization *	getPathVisualization (const std::vector< int > &path)

virtual void	removeAllPathVisualizations ()

virtual const std::vector< int > *	getIncompletePath (const std::string &label, int chunkId)

virtual void	addToIncompletePath (const std::string &label, int chunkId, cModule *module)

virtual void	removeIncompletePath (const std::string &label, int chunkId)

virtual std::string	getPathVisualizationText (const PathVisualization pathVisualization, cPacket packet) const

virtual void	refreshPathVisualization (const PathVisualization pathVisualization, cPacket packet)

Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override

virtual Coord	getPosition (const cModule *networkNode) const

virtual Coord	getContactPosition (const cModule networkNode, const Coord &fromPosition, const char contactMode, double contactSpacing) const

virtual Quaternion	getOrientation (const cModule *networkNode) const

virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::PathVisualizerBase
virtual void	receiveSignal (cComponent source, simsignal_t signal, cObject object, cObject *details) override

Protected Attributes inherited from inet::visualizer::PathVisualizerBase
bool	displayRoutes = false

NetworkNodeFilter	nodeFilter

PacketFilter	packetFilter

ColorSet	lineColorSet

cFigure::LineStyle	lineStyle

double	lineWidth = NaN

bool	lineSmooth = false

double	lineShift = NaN

const char *	lineShiftMode = nullptr

double	lineContactSpacing = NaN

const char *	lineContactMode = nullptr

StringFormat	labelFormat

cFigure::Font	labelFont

const char *	labelColorAsString = nullptr

cFigure::Color	labelColor

const char *	fadeOutMode = nullptr

double	fadeOutTime = NaN

double	fadeOutAnimationSpeed = NaN

simsignal_t	startPathSignal = -1

simsignal_t	extendPathSignal = -1

simsignal_t	endPathSignal = -1

LineManager *	lineManager = nullptr

std::map< std::pair< std::string, int >, std::vector< int > >	incompletePaths
	Maps path label and chunk id to module id vector. More...

std::map< int, int >	numPaths
	Maps nodes to the number of paths that go through it. More...

std::multimap< std::pair< int, int >, const PathVisualization * >	pathVisualizations
	Maps source/destination modules to multiple paths between them. More...

Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr

cModule *	visualizationSubjectModule = nullptr

const char *	tags = nullptr

Member Function Documentation

◆ isPathElement()

bool inet::visualizer::NetworkRouteOsgVisualizer::isPathElement ( cModule * module ) const

overrideprotectedvirtual

Implements inet::visualizer::PathVisualizerBase.

 {
 #ifdef INET_WITH_ETHERNET
     if (dynamic_cast<MacRelayUnit *>(module) != nullptr)
         return true;
 #endif

 #ifdef INET_WITH_IEEE8021D
     if (dynamic_cast<Ieee8021dRelay *>(module) != nullptr)
         return true;
 #endif

     return false;
 }

◆ isPathEnd()

bool inet::visualizer::NetworkRouteOsgVisualizer::isPathEnd ( cModule * module ) const

overrideprotectedvirtual

Implements inet::visualizer::PathVisualizerBase.

 {
 #ifdef INET_WITH_IPv4
     if (dynamic_cast<Ipv4 *>(module) != nullptr)
         return true;
 #endif

     return false;
 }

◆ isPathStart()

bool inet::visualizer::NetworkRouteOsgVisualizer::isPathStart ( cModule * module ) const

overrideprotectedvirtual

Implements inet::visualizer::PathVisualizerBase.

 {
 #ifdef INET_WITH_IPv4
     if (dynamic_cast<Ipv4 *>(module) != nullptr)
         return true;
 #endif

     return false;
 }

The documentation for this class was generated from the following files:

Protected Member Functions

Additional Inherited Members

Member Function Documentation

◆ isPathElement()

◆ isPathEnd()

◆ isPathStart()
