inet::visualizer::LinkBreakVisualizerBase Class Reference

#include <LinkBreakVisualizerBase.h>

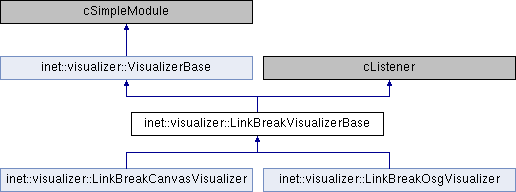

Inheritance diagram for inet::visualizer::LinkBreakVisualizerBase:

Classes
class	LinkBreakVisualization

Parameters
bool	displayLinkBreaks = false
NetworkNodeFilter	nodeFilter
InterfaceFilter	interfaceFilter
PacketFilter	packetFilter
const char *	icon = nullptr
double	iconTintAmount = NaN
cFigure::Color	iconTintColor
const char *	fadeOutMode = nullptr
double	fadeOutTime = NaN
double	fadeOutAnimationSpeed = NaN
std::map< std::pair< int, int >, const LinkBreakVisualization * >	linkBreakVisualizations
virtual void	initialize (int stage) override
virtual void	handleParameterChange (const char *name) override
virtual void	refreshDisplay () const override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual const LinkBreakVisualization *	createLinkBreakVisualization (cModule *transmitter, cModule *receiver) const =0
virtual void	addLinkBreakVisualization (const LinkBreakVisualization *linkBreakVisualization)
virtual void	removeLinkBreakVisualization (const LinkBreakVisualization *linkBreakVisualization)
virtual void	removeAllLinkBreakVisualizations ()
virtual void	setAlpha (const LinkBreakVisualization *linkBreakVisualization, double alpha) const =0
virtual cModule *	findNode (MacAddress address)
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

addLinkBreakVisualization()

void inet::visualizer::LinkBreakVisualizerBase::addLinkBreakVisualization ( const LinkBreakVisualization *  linkBreakVisualization )

protectedvirtual

Reimplemented in inet::visualizer::LinkBreakCanvasVisualizer, and inet::visualizer::LinkBreakOsgVisualizer.

{
    auto key = std::pair<int, int>(linkBreakVisualization->transmitterModuleId, linkBreakVisualization->receiverModuleId);
    linkBreakVisualizations[key] = linkBreakVisualization;
}

Referenced by inet::visualizer::LinkBreakOsgVisualizer::addLinkBreakVisualization(), inet::visualizer::LinkBreakCanvasVisualizer::addLinkBreakVisualization(), and receiveSignal().

createLinkBreakVisualization()

virtual const LinkBreakVisualization* inet::visualizer::LinkBreakVisualizerBase::createLinkBreakVisualization ( cModule *  transmitter, cModule *  receiver  ) const

protectedpure virtual

Implemented in inet::visualizer::LinkBreakCanvasVisualizer, and inet::visualizer::LinkBreakOsgVisualizer.

Referenced by receiveSignal().

findNode()

cModule * inet::visualizer::LinkBreakVisualizerBase::findNode ( MacAddress  address )

protectedvirtual

{
    L3AddressResolver addressResolver;
    for (cModule::SubmoduleIterator it(visualizationSubjectModule); !it.end(); it++) {
        auto networkNode = *it;
        if (isNetworkNode(networkNode)) {
            auto interfaceTable = addressResolver.findInterfaceTableOf(networkNode);
            for (int i = 0; i < interfaceTable->getNumInterfaces(); i++)
                if (interfaceTable->getInterface(i)->getMacAddress() == address)
                    return networkNode;
        }
    }
    return nullptr;
}

Referenced by receiveSignal().

handleParameterChange()

void inet::visualizer::LinkBreakVisualizerBase::handleParameterChange ( const char *  name )

overrideprotectedvirtual

{
    if (!hasGUI()) return;
    if (name != nullptr) {
        if (!strcmp(name, "nodeFilter"))
            nodeFilter.setPattern(par("nodeFilter"));
        else if (!strcmp(name, "interfaceFilter"))
            interfaceFilter.setPattern(par("interfaceFilter"));
        else if (!strcmp(name, "packetFilter"))
            packetFilter.setExpression(par("packetFilter").objectValue());
        removeAllLinkBreakVisualizations();
    }
}

initialize()

void inet::visualizer::LinkBreakVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::LinkBreakCanvasVisualizer.

{
    VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        displayLinkBreaks = par("displayLinkBreaks");
        nodeFilter.setPattern(par("nodeFilter"));
        interfaceFilter.setPattern(par("interfaceFilter"));
        packetFilter.setExpression(par("packetFilter").objectValue());
        icon = par("icon");
        iconTintAmount = par("iconTintAmount");
        if (iconTintAmount != 0)
            iconTintColor = cFigure::Color(par("iconTintColor"));
        fadeOutMode = par("fadeOutMode");
        fadeOutTime = par("fadeOutTime");
        fadeOutAnimationSpeed = par("fadeOutAnimationSpeed");
        if (displayLinkBreaks)
            subscribe();
    }
}

Referenced by inet::visualizer::LinkBreakCanvasVisualizer::initialize().

preDelete()

void inet::visualizer::LinkBreakVisualizerBase::preDelete ( cComponent *  root )

overrideprotectedvirtual

{
    if (displayLinkBreaks) {
        unsubscribe();
        removeAllLinkBreakVisualizations();
    }
}

receiveSignal()

void inet::visualizer::LinkBreakVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, cObject *  object, cObject *  details  )

overridevirtual

{
    Enter_Method("%s", cComponent::getSignalName(signal));

    if (signal == linkBrokenSignal) {
        MacAddress transmitterAddress;
        MacAddress receiverAddress;
        // TODO revive
//        if (auto frame = dynamic_cast<IMACFrame *>(object)) {
//            transmitterAddress = frame->getTransmitterAddress();
//            receiverAddress = frame->getReceiverAddress();
//        }
#ifdef INET_WITH_IEEE80211
        if (auto frame = dynamic_cast<ieee80211::Ieee80211TwoAddressHeader *>(object)) {
            transmitterAddress = frame->getTransmitterAddress();
            receiverAddress = frame->getReceiverAddress();
        }
#endif // INET_WITH_IEEE80211
        auto transmitter = findNode(transmitterAddress);
        auto receiver = findNode(receiverAddress);
        if (nodeFilter.matches(transmitter) && nodeFilter.matches(receiver)) {
            auto key = std::pair<int, int>(transmitter->getId(), receiver->getId());
            auto it = linkBreakVisualizations.find(key);
            if (it == linkBreakVisualizations.end())
                addLinkBreakVisualization(createLinkBreakVisualization(transmitter, receiver));
            else {
                auto linkBreakVisualization = it->second;
                linkBreakVisualization->linkBreakAnimationPosition = AnimationPosition();
            }
        }
    }
    else
        throw cRuntimeError("Unknown signal");
}

refreshDisplay()

void inet::visualizer::LinkBreakVisualizerBase::refreshDisplay ( ) const

overrideprotectedvirtual

Reimplemented in inet::visualizer::LinkBreakCanvasVisualizer, and inet::visualizer::LinkBreakOsgVisualizer.

{
    AnimationPosition currentAnimationPosition;
    std::vector<const LinkBreakVisualization *> removedLinkBreakVisualizations;
    for (auto it : linkBreakVisualizations) {
        auto linkBreakVisualization = it.second;
        double delta;
        if (!strcmp(fadeOutMode, "simulationTime"))
            delta = (currentAnimationPosition.getSimulationTime() - linkBreakVisualization->linkBreakAnimationPosition.getSimulationTime()).dbl();
        else if (!strcmp(fadeOutMode, "animationTime"))
            delta = currentAnimationPosition.getAnimationTime() - linkBreakVisualization->linkBreakAnimationPosition.getAnimationTime();
        else if (!strcmp(fadeOutMode, "realTime"))
            delta = currentAnimationPosition.getRealTime() - linkBreakVisualization->linkBreakAnimationPosition.getRealTime();
        else
            throw cRuntimeError("Unknown fadeOutMode: %s", fadeOutMode);
        if (delta > fadeOutTime)
            removedLinkBreakVisualizations.push_back(linkBreakVisualization);
        else
            setAlpha(linkBreakVisualization, 1 - delta / fadeOutTime);
    }
    for (auto linkBreakVisualization : removedLinkBreakVisualizations) {
        const_cast<LinkBreakVisualizerBase *>(this)->removeLinkBreakVisualization(linkBreakVisualization);
        delete linkBreakVisualization;
    }
}

Referenced by inet::visualizer::LinkBreakOsgVisualizer::refreshDisplay(), and inet::visualizer::LinkBreakCanvasVisualizer::refreshDisplay().

removeAllLinkBreakVisualizations()

void inet::visualizer::LinkBreakVisualizerBase::removeAllLinkBreakVisualizations ( )

protectedvirtual

{
    std::vector<const LinkBreakVisualization *> removedLinkBreakVisualizations;
    for (auto it : linkBreakVisualizations)
        removedLinkBreakVisualizations.push_back(it.second);
    for (auto it : removedLinkBreakVisualizations) {
        removeLinkBreakVisualization(it);
        delete it;
    }
}

Referenced by handleParameterChange(), and preDelete().

removeLinkBreakVisualization()

void inet::visualizer::LinkBreakVisualizerBase::removeLinkBreakVisualization ( const LinkBreakVisualization *  linkBreakVisualization )

protectedvirtual

Reimplemented in inet::visualizer::LinkBreakCanvasVisualizer, and inet::visualizer::LinkBreakOsgVisualizer.

{
    auto key = std::pair<int, int>(linkBreakVisualization->transmitterModuleId, linkBreakVisualization->receiverModuleId);
    auto it = linkBreakVisualizations.find(key);
    linkBreakVisualizations.erase(it);
}

Referenced by refreshDisplay(), removeAllLinkBreakVisualizations(), inet::visualizer::LinkBreakOsgVisualizer::removeLinkBreakVisualization(), and inet::visualizer::LinkBreakCanvasVisualizer::removeLinkBreakVisualization().

setAlpha()

virtual void inet::visualizer::LinkBreakVisualizerBase::setAlpha ( const LinkBreakVisualization *  linkBreakVisualization, double  alpha  ) const

protectedpure virtual

Implemented in inet::visualizer::LinkBreakCanvasVisualizer, and inet::visualizer::LinkBreakOsgVisualizer.

Referenced by refreshDisplay().

subscribe()

void inet::visualizer::LinkBreakVisualizerBase::subscribe ( )

protectedvirtual

{
    visualizationSubjectModule->subscribe(linkBrokenSignal, this);
}

Referenced by initialize().

unsubscribe()

void inet::visualizer::LinkBreakVisualizerBase::unsubscribe ( )

protectedvirtual

{
    // NOTE: lookup the module again because it may have been deleted first
    auto visualizationSubjectModule = findModuleFromPar<cModule>(par("visualizationSubjectModule"), this);
    if (visualizationSubjectModule != nullptr)
        visualizationSubjectModule->unsubscribe(linkBrokenSignal, this);
}

Referenced by preDelete().

Member Data Documentation

displayLinkBreaks

bool inet::visualizer::LinkBreakVisualizerBase::displayLinkBreaks = false

protected

Referenced by initialize(), and preDelete().

fadeOutAnimationSpeed

double inet::visualizer::LinkBreakVisualizerBase::fadeOutAnimationSpeed = NaN

protected

Referenced by initialize(), inet::visualizer::LinkBreakOsgVisualizer::refreshDisplay(), and inet::visualizer::LinkBreakCanvasVisualizer::refreshDisplay().

fadeOutMode

const char* inet::visualizer::LinkBreakVisualizerBase::fadeOutMode = nullptr

protected

Referenced by initialize(), and refreshDisplay().

fadeOutTime

double inet::visualizer::LinkBreakVisualizerBase::fadeOutTime = NaN

protected

Referenced by initialize(), and refreshDisplay().

icon

const char* inet::visualizer::LinkBreakVisualizerBase::icon = nullptr

protected

Referenced by inet::visualizer::LinkBreakOsgVisualizer::createLinkBreakVisualization(), inet::visualizer::LinkBreakCanvasVisualizer::createLinkBreakVisualization(), and initialize().

iconTintAmount

double inet::visualizer::LinkBreakVisualizerBase::iconTintAmount = NaN

protected

Referenced by inet::visualizer::LinkBreakCanvasVisualizer::createLinkBreakVisualization(), and initialize().

iconTintColor

cFigure::Color inet::visualizer::LinkBreakVisualizerBase::iconTintColor

protected

Referenced by inet::visualizer::LinkBreakOsgVisualizer::createLinkBreakVisualization(), inet::visualizer::LinkBreakCanvasVisualizer::createLinkBreakVisualization(), and initialize().

interfaceFilter

InterfaceFilter inet::visualizer::LinkBreakVisualizerBase::interfaceFilter

protected

Referenced by handleParameterChange(), and initialize().

linkBreakVisualizations

std::map<std::pair<int, int>, const LinkBreakVisualization *> inet::visualizer::LinkBreakVisualizerBase::linkBreakVisualizations

protected

Referenced by addLinkBreakVisualization(), receiveSignal(), inet::visualizer::LinkBreakOsgVisualizer::refreshDisplay(), inet::visualizer::LinkBreakCanvasVisualizer::refreshDisplay(), refreshDisplay(), removeAllLinkBreakVisualizations(), and removeLinkBreakVisualization().

nodeFilter

NetworkNodeFilter inet::visualizer::LinkBreakVisualizerBase::nodeFilter

protected

Referenced by handleParameterChange(), initialize(), and receiveSignal().

packetFilter

PacketFilter inet::visualizer::LinkBreakVisualizerBase::packetFilter

protected

Referenced by handleParameterChange(), and initialize().

---

The documentation for this class was generated from the following files:

• LinkBreakVisualizerBase.h
• LinkBreakVisualizerBase.cc
