inet::visualizer::InfoVisualizerBase Class Reference

#include <InfoVisualizerBase.h>

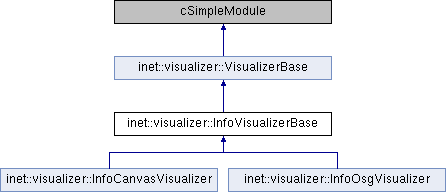

Inheritance diagram for inet::visualizer::InfoVisualizerBase:

Classes
class	DirectiveResolver
class	InfoVisualization

Parameters
bool	displayInfos = false
ModuleFilter	modules
StringFormat	format
cFigure::Font	font
cFigure::Color	textColor
cFigure::Color	backgroundColor
double	opacity = NaN
Placement	placementHint
double	placementPriority
std::vector< const InfoVisualization * >	infoVisualizations
virtual void	initialize (int stage) override
virtual void	handleParameterChange (const char *name) override
virtual void	refreshDisplay () const override
virtual InfoVisualization *	createInfoVisualization (cModule *module) const =0
virtual void	addInfoVisualization (const InfoVisualization *infoVisualization)
virtual void	addInfoVisualizations ()
virtual void	removeInfoVisualization (const InfoVisualization *infoVisualization)
virtual void	refreshInfoVisualization (const InfoVisualization *infoVisualization, const char *info) const =0
virtual void	removeAllInfoVisualizations ()
virtual const char *	getInfoVisualizationText (cModule *module) const
virtual void	preDelete (cComponent *root) override

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

addInfoVisualization()

void inet::visualizer::InfoVisualizerBase::addInfoVisualization ( const InfoVisualization *  infoVisualization )

protectedvirtual

Reimplemented in inet::visualizer::InfoCanvasVisualizer.

{
    infoVisualizations.push_back(infoVisualization);
}

Referenced by inet::visualizer::InfoCanvasVisualizer::addInfoVisualization(), and addInfoVisualizations().

addInfoVisualizations()

void inet::visualizer::InfoVisualizerBase::addInfoVisualizations ( )

protectedvirtual

{
    auto simulation = getSimulation();
    for (int id = 0; id < simulation->getLastComponentId(); id++) {
        auto component = simulation->getComponent(id);
        if (component != nullptr && component->isModule() && modules.matches(static_cast<cModule *>(component))) {
            auto infoVisualization = createInfoVisualization(static_cast<cModule *>(component));
            addInfoVisualization(infoVisualization);
        }
    }
}

Referenced by handleParameterChange(), and initialize().

createInfoVisualization()

virtual InfoVisualization* inet::visualizer::InfoVisualizerBase::createInfoVisualization ( cModule *  module ) const

protectedpure virtual

Implemented in inet::visualizer::InfoCanvasVisualizer, and inet::visualizer::InfoOsgVisualizer.

Referenced by addInfoVisualizations().

getInfoVisualizationText()

const char * inet::visualizer::InfoVisualizerBase::getInfoVisualizationText ( cModule *  module ) const

protectedvirtual

{
    DirectiveResolver directiveResolver(module);
    return format.formatString(&directiveResolver);
}

Referenced by inet::visualizer::InfoCanvasVisualizer::createInfoVisualization(), and refreshDisplay().

handleParameterChange()

void inet::visualizer::InfoVisualizerBase::handleParameterChange ( const char *  name )

overrideprotectedvirtual

{
    if (!hasGUI()) return;
    if (name != nullptr) {
        if (!strcmp(name, "modules"))
            modules.setPattern(par("modules"));
        else if (!strcmp(name, "format"))
            format.parseFormat(par("format"));
        removeAllInfoVisualizations();
        addInfoVisualizations();
    }
}

initialize()

void inet::visualizer::InfoVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::InfoCanvasVisualizer, and inet::visualizer::InfoOsgVisualizer.

{
    VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        displayInfos = par("displayInfos");
        modules.setPattern(par("modules"));
        format.parseFormat(par("format"));
        font = cFigure::parseFont(par("font"));
        textColor = cFigure::Color(par("textColor"));
        backgroundColor = cFigure::Color(par("backgroundColor"));
        opacity = par("opacity");
        placementHint = parsePlacement(par("placementHint"));
        placementPriority = par("placementPriority");
    }
    else if (stage == INITSTAGE_LAST) {
        if (displayInfos)
            addInfoVisualizations();
    }
}

Referenced by inet::visualizer::InfoOsgVisualizer::initialize(), and inet::visualizer::InfoCanvasVisualizer::initialize().

preDelete()

void inet::visualizer::InfoVisualizerBase::preDelete ( cComponent *  root )

overridevirtual

{
    if (displayInfos)
        removeAllInfoVisualizations();
}

refreshDisplay()

void inet::visualizer::InfoVisualizerBase::refreshDisplay ( ) const

overrideprotectedvirtual

{
    auto simulation = getSimulation();
    for (auto infoVisualization : infoVisualizations) {
        auto module = simulation->getModule(infoVisualization->moduleId);
        if (module != nullptr)
            refreshInfoVisualization(infoVisualization, getInfoVisualizationText(module));
    }
}

refreshInfoVisualization()

virtual void inet::visualizer::InfoVisualizerBase::refreshInfoVisualization ( const InfoVisualization *  infoVisualization, const char *  info  ) const

protectedpure virtual

Implemented in inet::visualizer::InfoCanvasVisualizer, and inet::visualizer::InfoOsgVisualizer.

Referenced by refreshDisplay().

removeAllInfoVisualizations()

void inet::visualizer::InfoVisualizerBase::removeAllInfoVisualizations ( )

protectedvirtual

{
    for (auto infoVisualization : std::vector<const InfoVisualization *>(infoVisualizations)) {
        removeInfoVisualization(infoVisualization);
        delete infoVisualization;
    }
}

Referenced by handleParameterChange(), and preDelete().

removeInfoVisualization()

void inet::visualizer::InfoVisualizerBase::removeInfoVisualization ( const InfoVisualization *  infoVisualization )

protectedvirtual

Reimplemented in inet::visualizer::InfoCanvasVisualizer.

{
    infoVisualizations.erase(std::remove(infoVisualizations.begin(), infoVisualizations.end(), infoVisualization), infoVisualizations.end());
}

Referenced by removeAllInfoVisualizations(), and inet::visualizer::InfoCanvasVisualizer::removeInfoVisualization().

Member Data Documentation

backgroundColor

cFigure::Color inet::visualizer::InfoVisualizerBase::backgroundColor

protected

Referenced by inet::visualizer::InfoOsgVisualizer::createInfoVisualization(), inet::visualizer::InfoCanvasVisualizer::createInfoVisualization(), and initialize().

displayInfos

bool inet::visualizer::InfoVisualizerBase::displayInfos = false

protected

Referenced by initialize(), and preDelete().

font

cFigure::Font inet::visualizer::InfoVisualizerBase::font

protected

Referenced by inet::visualizer::InfoCanvasVisualizer::createInfoVisualization(), and initialize().

format

StringFormat inet::visualizer::InfoVisualizerBase::format

protected

Referenced by getInfoVisualizationText(), handleParameterChange(), and initialize().

infoVisualizations

std::vector<const InfoVisualization *> inet::visualizer::InfoVisualizerBase::infoVisualizations

protected

Referenced by addInfoVisualization(), inet::visualizer::InfoOsgVisualizer::initialize(), refreshDisplay(), removeAllInfoVisualizations(), and removeInfoVisualization().

modules

ModuleFilter inet::visualizer::InfoVisualizerBase::modules

protected

Referenced by addInfoVisualizations(), handleParameterChange(), and initialize().

opacity

double inet::visualizer::InfoVisualizerBase::opacity = NaN

protected

Referenced by inet::visualizer::InfoCanvasVisualizer::createInfoVisualization(), and initialize().

placementHint

Placement inet::visualizer::InfoVisualizerBase::placementHint

protected

Referenced by inet::visualizer::InfoCanvasVisualizer::addInfoVisualization(), and initialize().

placementPriority

double inet::visualizer::InfoVisualizerBase::placementPriority

protected

Referenced by inet::visualizer::InfoCanvasVisualizer::addInfoVisualization(), and initialize().

textColor

cFigure::Color inet::visualizer::InfoVisualizerBase::textColor

protected

Referenced by inet::visualizer::InfoOsgVisualizer::createInfoVisualization(), inet::visualizer::InfoCanvasVisualizer::createInfoVisualization(), and initialize().

---

The documentation for this class was generated from the following files:

• InfoVisualizerBase.h
• InfoVisualizerBase.cc
