#include <PropagationBase.h>

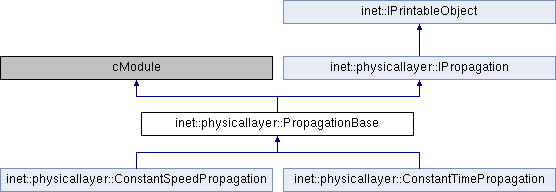

Inheritance diagram for inet::physicallayer::PropagationBase:

Public Member Functions
	PropagationBase ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual mps	getPropagationSpeed () const override
	Returns the theoretical propagation speed of radio signals in the range (0, +infinity). More...

Public Member Functions inherited from inet::physicallayer::IPropagation
virtual const IArrival *	computeArrival (const ITransmission transmission, IMobility mobility) const =0
	Returns the time and space coordinates when the transmission arrives at the object that moves with the provided mobility. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
virtual void	initialize (int stage) override

virtual void	finish () override

Protected Attributes
mps	propagationSpeed

long	arrivalComputationCount

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ PropagationBase()

inet::physicallayer::PropagationBase::PropagationBase ( )

                                  :
     propagationSpeed(mps(NaN)),
     arrivalComputationCount(0)
 {
 }

Member Function Documentation

◆ finish()

void inet::physicallayer::PropagationBase::finish ( )

overrideprotectedvirtual

 {
     EV_INFO << "Radio signal arrival computation count = " << arrivalComputationCount << endl;
     recordScalar("Arrival computation count", arrivalComputationCount);
 }

◆ getPropagationSpeed()

virtual mps inet::physicallayer::PropagationBase::getPropagationSpeed ( ) const

inlineoverridevirtual

Returns the theoretical propagation speed of radio signals in the range (0, +infinity).

The value might be different from the approximation provided by the actual computation of arrival times.

Implements inet::physicallayer::IPropagation.

31 { return propagationSpeed; }

◆ initialize()

void inet::physicallayer::PropagationBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented in inet::physicallayer::ConstantSpeedPropagation, and inet::physicallayer::ConstantTimePropagation.

 {
     if (stage == INITSTAGE_LOCAL)
         propagationSpeed = mps(par("propagationSpeed"));
 }

Referenced by inet::physicallayer::ConstantTimePropagation::initialize(), and inet::physicallayer::ConstantSpeedPropagation::initialize().

◆ printToStream()

std::ostream & inet::physicallayer::PropagationBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::ConstantSpeedPropagation, and inet::physicallayer::ConstantTimePropagation.

 {
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(propagationSpeed);
     return stream;
 }

Referenced by inet::physicallayer::ConstantTimePropagation::printToStream(), and inet::physicallayer::ConstantSpeedPropagation::printToStream().

Member Data Documentation

◆ arrivalComputationCount

long inet::physicallayer::PropagationBase::arrivalComputationCount

mutableprotected

Referenced by inet::physicallayer::ConstantTimePropagation::computeArrival(), inet::physicallayer::ConstantSpeedPropagation::computeArrival(), and finish().

◆ propagationSpeed

mps inet::physicallayer::PropagationBase::propagationSpeed

protected

Referenced by inet::physicallayer::ConstantSpeedPropagation::computeArrival(), initialize(), and printToStream().

The documentation for this class was generated from the following files:
