#include <ConstantTimePropagation.h>

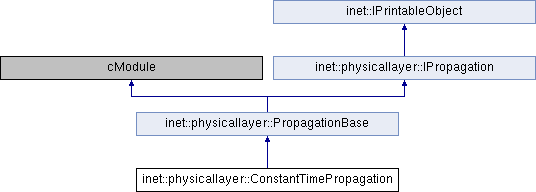

Inheritance diagram for inet::physicallayer::ConstantTimePropagation:

Public Member Functions
	ConstantTimePropagation ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IArrival *	computeArrival (const ITransmission transmission, IMobility mobility) const override
	Returns the time and space coordinates when the transmission arrives at the object that moves with the provided mobility. More...

Public Member Functions inherited from inet::physicallayer::PropagationBase
	PropagationBase ()

virtual mps	getPropagationSpeed () const override
	Returns the theoretical propagation speed of radio signals in the range (0, +infinity). More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::PropagationBase
virtual void	finish () override

Protected Attributes
simtime_t	propagationTime

Protected Attributes inherited from inet::physicallayer::PropagationBase
mps	propagationSpeed

long	arrivalComputationCount

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

◆ ConstantTimePropagation()

inet::physicallayer::ConstantTimePropagation::ConstantTimePropagation ( )

                                                  :
     PropagationBase()
 {
 }

Member Function Documentation

◆ computeArrival()

const IArrival * inet::physicallayer::ConstantTimePropagation::computeArrival	(	const ITransmission *	transmission,
		IMobility *	mobility
	)		const

overridevirtual

Returns the time and space coordinates when the transmission arrives at the object that moves with the provided mobility.

The result might be an approximation only, because there's a tradeoff between precision and performance. This function never returns nullptr.

Implements inet::physicallayer::IPropagation.

 {
     arrivalComputationCount++;
     const Coord& position = mobility->getCurrentPosition();
     const Quaternion& orientation = mobility->getCurrentAngularPosition();
     const simtime_t startTime = transmission->getStartTime();
     const simtime_t endTime = transmission->getEndTime();
     const simtime_t preambleDuration = transmission->getPreambleDuration();
     const simtime_t headerDuration = transmission->getHeaderDuration();
     const simtime_t dataDuration = transmission->getDataDuration();
     return new Arrival(propagationTime, propagationTime, startTime + propagationTime, endTime + propagationTime, preambleDuration, headerDuration, dataDuration, position, position, orientation, orientation);
 }

◆ initialize()

void inet::physicallayer::ConstantTimePropagation::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::physicallayer::PropagationBase.

 {
     PropagationBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL)
         propagationTime = par("propagationTime");
 }

◆ printToStream()

std::ostream & inet::physicallayer::ConstantTimePropagation::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::PropagationBase.

 {
     stream << "ConstantTimePropagation";
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(propagationTime);
     return PropagationBase::printToStream(stream, level);
 }

Member Data Documentation

◆ propagationTime

simtime_t inet::physicallayer::ConstantTimePropagation::propagationTime

protected

Referenced by computeArrival(), initialize(), and printToStream().

The documentation for this class was generated from the following files:
