#include <IdealObstacleLoss.h>

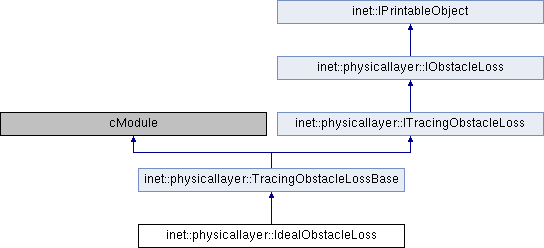

Inheritance diagram for inet::physicallayer::IdealObstacleLoss:

Classes
class	TotalObstacleLossComputation

Parameters
IRadioMedium *	medium = nullptr
	The radio medium where the radio signal propagation takes place. More...

ModuleRefByPar< physicalenvironment::IPhysicalEnvironment >	physicalEnvironment
	The physical environment that provides to obstacles. More...

virtual void	initialize (int stage) override

virtual bool	isObstacle (const physicalenvironment::IPhysicalObject *object, const Coord &transmissionPosition, const Coord &receptionPosition) const

	IdealObstacleLoss ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual double	computeObstacleLoss (Hz frequency, const Coord &transmissionPosition, const Coord &receptionPosition) const override
	Returns the obstacle loss factor caused by physical objects present in the environment as a function of frequency, transmission position, and reception position. More...

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Static Public Attributes inherited from inet::physicallayer::ITracingObstacleLoss
static simsignal_t	obstaclePenetratedSignal = cComponent::registerSignal("obstaclePenetrated")

Constructor & Destructor Documentation

◆ IdealObstacleLoss()

inet::physicallayer::IdealObstacleLoss::IdealObstacleLoss ( )

24 {

25 }

Member Function Documentation

◆ computeObstacleLoss()

double inet::physicallayer::IdealObstacleLoss::computeObstacleLoss	(	Hz	frequency,
		const Coord &	transmissionPosition,
		const Coord &	receptionPosition
	)		const

overridevirtual

Returns the obstacle loss factor caused by physical objects present in the environment as a function of frequency, transmission position, and reception position.

The value is in the range [0, 1] where 1 means no loss at all and 0 means all power is lost.

Implements inet::physicallayer::IObstacleLoss.

 {
     TotalObstacleLossComputation obstacleLossVisitor(this, transmissionPosition, receptionPosition);
     physicalEnvironment->visitObjects(&obstacleLossVisitor, LineSegment(transmissionPosition, receptionPosition));
     return obstacleLossVisitor.isObstacleFound() ? 0 : 1;
 }

◆ initialize()

void inet::physicallayer::IdealObstacleLoss::initialize ( int stage )

overrideprotectedvirtual

 {
     if (stage == INITSTAGE_LOCAL) {
         medium = check_and_cast<IRadioMedium *>(getParentModule());
         physicalEnvironment.reference(this, "physicalEnvironmentModule", true);
     }
 }

◆ isObstacle()

bool inet::physicallayer::IdealObstacleLoss::isObstacle	(	const physicalenvironment::IPhysicalObject *	object,
		const Coord &	transmissionPosition,
		const Coord &	receptionPosition
	)		const

protectedvirtual

 {
     const ShapeBase *shape = object->getShape();
     const Coord& position = object->getPosition();
     const Quaternion& orientation = object->getOrientation();
     RotationMatrix rotation(orientation.toEulerAngles());
     const LineSegment lineSegment(rotation.rotateVectorInverse(transmissionPosition - position), rotation.rotateVectorInverse(receptionPosition - position));
     Coord intersection1, intersection2, normal1, normal2;
     bool hasIntersections = shape->computeIntersection(lineSegment, intersection1, intersection2, normal1, normal2);
     bool isObstacle = hasIntersections && intersection1 != intersection2;
     if (isObstacle) {
         ObstaclePenetratedEvent event(object, intersection1, intersection2, normal1, normal2, isObstacle ? 1 : 0);
         const_cast<IdealObstacleLoss *>(this)->emit(obstaclePenetratedSignal, &event);
     }
     return isObstacle;
 }

◆ printToStream()

std::ostream & inet::physicallayer::IdealObstacleLoss::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

 {
     return stream << "IdealObstacleLoss";
 }

Member Data Documentation

◆ medium

IRadioMedium* inet::physicallayer::IdealObstacleLoss::medium = nullptr

protected

The radio medium where the radio signal propagation takes place.

◆ physicalEnvironment

ModuleRefByPar<physicalenvironment::IPhysicalEnvironment> inet::physicallayer::IdealObstacleLoss::physicalEnvironment

protected

The physical environment that provides to obstacles.
